AONano 532-5W-40K ND:YV04 GR Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

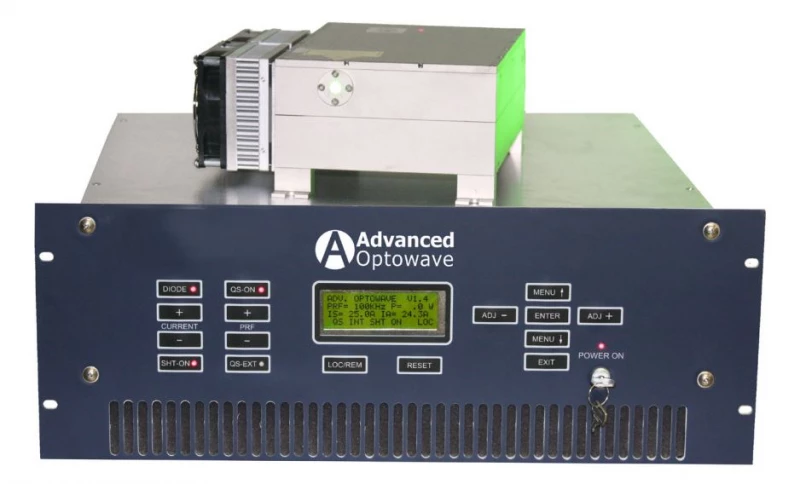

The AWAVE GR Series represents a breakthrough in industrial laser technology, offering a suite of advanced features tailored for the most demanding production environments. These Q-switched TEM00 mode lasers are meticulously engineered to deliver exceptional performance and reliability, making them an ideal choice for continuous 24/7 operations. With a design that integrates both a laser head and a laser controller connected by a 2.5-meter umbilical cable, the system ensures seamless functionality and ease of use in various industrial settings.
A hallmark of the AWAVE GR Series is its innovative end-pumping technology, which is complemented by air-cooling capabilities supporting average power outputs of up to 10W. This state-of-the-art design not only enhances beam quality but also ensures pulse and point stability, crucial for precision applications. The lasers incorporate patent-pending harmonic conversion technologies, ensuring superior performance while maintaining an ultra-compact and lightweight form factor. These features are further enhanced by brand-new focusing optics and a field-replaceable diode, underscoring the system's user-friendly design and low operational costs.
Reliability is at the core of the AWAVE GR Series, with each laser head sealed in a clean room environment to guarantee long-term performance. The series supports pulse frequencies ranging from 1-300 kHz, with optional capabilities extending up to 1 MHz. It offers average power outputs from 10mW to 30W and pulse energies exceeding 10mJ. For applications requiring power beyond 30W, Advanced Optowave provides the AW-HP Series as a robust alternative. The GR Series is designed with flexible laser architectures, ensuring adaptability to meet diverse industrial requirements.
Advanced Optowave Corporation is committed to continuous product improvement, and the AWAVE Series reflects this dedication through its superior design and engineering. The company offers a limited warranty on all AWAVE Series laser systems, providing customers with confidence in their investment. For further product information or details on warranty coverage, potential users are encouraged to contact Advanced Optowave directly.
AONano 532-5W-40K ND:YV04 GR Laser
Specifications |
|
---|---|
Avg. Power: | 5 W |
Wavelength: | 532 nm |
Repetition Rate: | 1 – 300 kHz |
Spatial Mode (M^2): | 1.2 |
Pulse Duration: | 10 ns |
Pulse-to-Pulse Stability (RMS): | 2 % |
Cooling: | Air |
Average Power: | 5W, 10W, 15W |
Spatial Mode: | TEM00 |
Beam Roundness: | >90% |
Pulse Width (ns): | <10ns @20kHz, <30ns @100kHz, <40ns @100kHz |
Pulse Energy (mJ @ 1kHz): | >150uJ, >300uJ |
Polarization Ratio: | >100:1 LINEAR, VERTICAL |
Communication Protocol: | RS-232 |
Operating Voltage (VAC): | 90-260 |
Line Frequency (Hz): | 47-63 |
Operation Temperature: | 15º - 30º C |
Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Experience advanced laser performance with cutting-edge end-pumping technology.
- Air-Cooling System: Efficient air-cooling supports average power up to 10W, ensuring optimal performance without additional cooling systems.
- Excellent Beam Quality: Achieve superior beam quality with exceptional pulse and point stability, ideal for precision applications.
- Patent Pending Harmonic Conversion Technologies: Benefit from advanced harmonic conversion for enhanced laser efficiency and output.
- Ultra-Compact & Light-Weight Design: The lightweight and compact design allows for easy integration into various industrial settings.
- Brand-New Focusing Optics: Utilize the latest in focusing optics technology for improved precision and accuracy in laser applications.
- Field-Replaceable Diode: Simplify maintenance with easily replaceable diodes located in the laser controller.
- 24/7 Proven Reliability: Engineered for continuous operation, ensuring consistent performance in demanding production environments.
- Low Operational Cost: Designed for efficiency and cost-effectiveness, reducing operational expenses over time.
- Flexible Laser Architectures: Customizable laser designs to meet specific requirements, with pulse frequencies ranging from 1-300 kHz and power options up to 30W.
- Sealed Laser Head: The laser head is sealed in a clean room environment to ensure long-term reliability and protection from contaminants.
- Comprehensive Warranty: Advanced Optowave Corporation offers a limited warranty for all AWAVE Series laser systems, ensuring peace of mind and support.
Applications
- Precision Micromachining: Ideal for high-accuracy drilling, cutting, and structuring.
- Electronics Manufacturing: Suitable for PCB drilling and semiconductor processing.
- Medical Device Fabrication: Enables fine feature processing in medical components.
- Thin-Film Scribing: Efficient for solar cell and display panel production.
- Scientific Research: Supports applications requiring stable, high-quality pulsed lasers.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The AWAVE GR Series laser has pulse frequencies ranging from 1-300 kHz (300 kHz to 1 MHz is optional).
The AWAVE GR Series laser has an average power range from 10mW to 30W.
The AWAVE GR Series laser has a pulse energy in excess of 10mJ.
Yes, the AWAVE GR Series laser can be designed and engineered with flexible laser architectures to meet any laser requirements exceeding standard specifications. Contact Advanced Optowave for more information.
