Description
The AWAVE SERIES by Advanced Optowave represents a pinnacle of innovation in the field of industrial lasers. Designed for demanding 24/7 production environments, these lasers are built with cutting-edge technology to ensure superior performance and reliability. The NANO-GR-527/532 model, part of this series, is distinguished by its innovative end-pumping technology and air-cooling capabilities, which support an average power output of up to 10W. This model is engineered to deliver excellent beam quality, pulse stability, and point stability, making it a versatile tool for a variety of industrial applications.

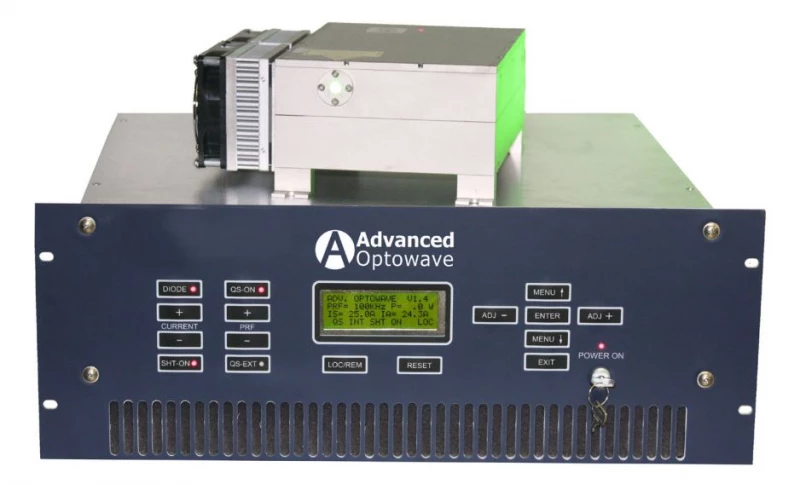

The AWAVE GR Series lasers are meticulously crafted to meet the needs of high-precision industries. Each system is composed of a laser head and a laser controller, interconnected by a 2.5-meter umbilical cable. The fiber-coupled pumping diodes are housed within the laser controller, facilitating easy field-replacement and maintenance. This thoughtful design ensures the laser head remains sealed in a clean room environment, contributing to its long-term reliability. With pulse frequencies ranging from 1-300 kHz and an optional range of 300 kHz to 1 MHz, these lasers offer flexibility and adaptability for various operational demands.
Advanced Optowave’s commitment to continuous product improvement is evident in the AWAVE SERIES. The lasers are ultra-compact and lightweight, incorporating brand-new focusing optics and patent-pending harmonic conversion technologies. This series also boasts a field-replaceable diode and proven 24/7 reliability, ensuring low operational costs and high efficiency. Whether for standard specifications or custom requirements, the AWAVE GR Series is engineered to provide exceptional performance in a compact form factor, making it an invaluable asset for industrial applications.
AONano 532-2W-20K ND:YAG GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 2 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 50 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 15 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Average Power: | 5W, 10W, 15W |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Width (ns): | <10ns @20kHz, <30ns @100kHz |
| Pulse Energy (mJ @ 1kHz): | >150uJ, >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Communication Protocol: | RS-232 |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Experience advanced laser performance with cutting-edge end-pumping technology.
- Air-Cooling System: Supports average power up to 10W, ensuring efficient thermal management and reduced downtime.
- Excellent Beam Quality: Achieve superior beam quality, pulse stability, and point stability for precise applications.
- Patent Pending Harmonic Conversion Technologies: Benefit from innovative harmonic conversion for enhanced laser efficiency.
- Ultra-Compact & Light-Weight Design: Easy to integrate into various industrial setups with its compact and lightweight structure.
- Brand-New Focusing Optics: Equipped with state-of-the-art optics for optimal focusing and performance.
- Field-Replaceable Diode: Convenient and cost-effective maintenance with easily replaceable diodes.
- 24/7 Proven Reliability: Engineered for continuous operation in demanding production environments.
- Low Operational Cost: Designed to minimize operational expenses while maximizing output.
- Flexible Pulse Frequencies: Offers pulse frequencies ranging from 1-300 kHz, with options up to 1 MHz for versatile applications.
- Wide Power Range: Covers average power from 10mW to 30W, with pulse energy exceeding 10mJ.
- Excellent Pulse Stability: Maintains pulse-to-pulse stability at <2% RMS for consistent performance.
- High Average Power Stability: Ensures power stability within <3% over 12 hours of operation.
- Advanced Communication Protocol: Utilizes RS-232 for seamless integration and control.
- Versatile Operating Conditions: Operates efficiently within 15º - 30º C and 20% - 80% humidity.
Applications
- Micromachining & Precision Cutting: Ideal for fine material processing with high beam stability.
- Solar & Semiconductor Manufacturing: Suitable for scribing, drilling, and patterning.
- Medical Device Fabrication: High precision for delicate materials and components.
- Scientific Research & Development: Reliable tool for laboratory experiments requiring stable output.
- Marking & Engraving: High-quality marking on metals, ceramics, and polymers.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The pulse frequency range of the AWAVE GR Series laser is 1-300 kHz (300 kHz to 1 MHz is optional).
The average power range of the AWAVE GR Series laser is from 10mW to 30W.
The pulse energy of the AWAVE GR Series laser is in excess of 10mJ.
Yes, the AWAVE GR Series laser can be customized to exceed standard specifications. Customers can contact Advanced Optowave for any laser requirements exceeding standard specifications.
