AONano 532-15W-20K ND:YAG GR Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
Introducing the AWAVE SERIES Industrial Lasers – a pinnacle of innovation and precision in the laser industry. Advanced Optowave presents the NANO-GR-527/532, a state-of-the-art laser system designed with cutting-edge end-pumping technology. This series stands out with its air-cooling capability, supporting an average power of up to 10W, making it an ideal solution for environments demanding high performance and reliability.
The AWAVE GR Series lasers are engineered to deliver excellent beam quality, pulse stability, and point stability. These attributes are crucial for applications requiring consistent and precise results. The series incorporates patent-pending harmonic conversion technologies, ensuring superior performance in a compact and lightweight design. The advanced focusing optics and field-replaceable diode components further enhance the system's usability and longevity, providing a low operational cost solution for continuous use.

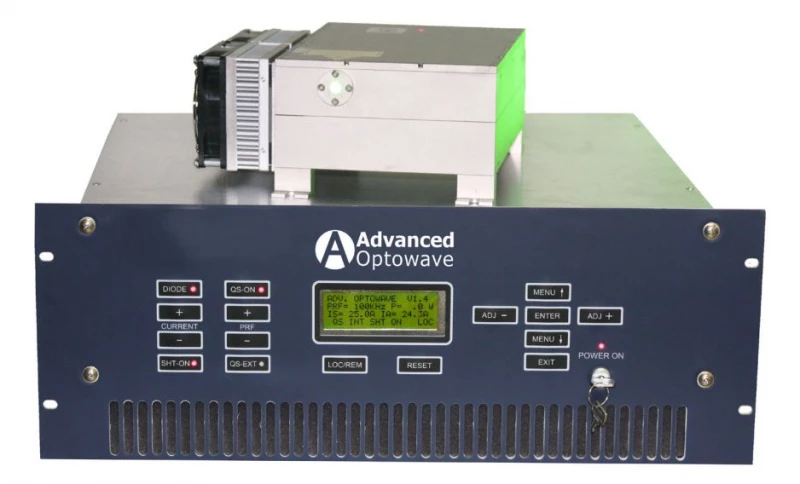

Each AWAVE GR Series model is a Q-switched TEM00 mode laser, meticulously crafted for the rigorous demands of a 24/7 production environment. The system comprises a laser head and a laser controller, linked by a 2.5-meter umbilical cable. The fiber-coupled pumping diodes are conveniently housed within the laser controller, allowing for easy field replacement. To guarantee long-term reliability, the laser head is sealed in a clean room environment.
The AWAVE GR Series offers flexible laser architectures, with pulse frequencies ranging from 1-300 kHz (with an optional range of 300 kHz to 1 MHz), average power from 10mW to 30W, and pulse energy exceeding 10mJ. For applications requiring more than 30W, the AW-HP Series is recommended. Advanced Optowave is committed to continuous product improvement, ensuring that each laser system meets the highest standards of quality and performance. For any specifications beyond the standard offerings, Advanced Optowave is ready to assist with tailored solutions.
AONano 532-15W-20K ND:YAG GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 15 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 50 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 30 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Air |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Width (ns): | <10ns @20kHz, <30ns @100kHz |
| Pulse Energy (mJ @ 1kHz): | >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Communication Protocol: | RS-232 |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Experience cutting-edge technology for superior laser performance.
- Air-Cooling System: Efficient cooling with average power up to 10W, ensuring optimal performance.
- Excellent Beam Quality: Achieve superior beam quality, pulse stability, and point stability for precision tasks.
- Patent Pending Harmonic Conversion Technologies: Utilize advanced technologies for enhanced laser functionality.
- Ultra-Compact & Light-Weight Design: Easy to integrate into various production environments.
- Brand-New Focusing Optics: Enhanced focusing capabilities for precise applications.
- Field-Replaceable Diode: Simplified maintenance with easily replaceable diodes.
- 24/7 Proven Reliability: Engineered for continuous operation in demanding production environments.
- Low Operational Cost: Cost-effective solution with high efficiency and minimal maintenance.
- Flexible Pulse Frequencies: Ranges from 1-300 kHz, with options up to 1 MHz for diverse applications.
- Wide Power Range: Average power from 10mW to 30W, with pulse energy exceeding 10mJ.
- High Beam Quality (M² < 1.2): Ensures a high-quality, consistent beam for precision tasks.
- Stable Pulse-to-Pulse Performance: Less than 2% RMS for reliable and consistent output.
- RS-232 Communication Protocol: Easy integration with existing systems for seamless operation.
- Wide Operating Voltage Range: Compatible with 90-260 VAC for versatile installation.
- Air Cooling: Efficient cooling mechanism to maintain optimal performance.
- Operating Temperature: Functions effectively between 15º - 30º C for various environments.
- Polarization Ratio: Greater than 100:1 linear, vertical for enhanced laser performance.
Applications
- Micromachining: Precision drilling, cutting, and structuring of metals and polymers
- Marking & Engraving: High-contrast marking on a variety of materials
- Semiconductor Processing: Wafer scribing, dicing, and trimming
- Medical Device Manufacturing: Fine feature cutting and marking for medical components
- Solar Cell Production: Laser edge isolation and patterning
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, material processing, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The AWAVE GR Series laser has a pulse frequency range of 1-300 kHz (300 kHz to 1 MHz is optional).
The AWAVE GR Series laser has an average power range of 10mW to 30W.
The AWAVE GR Series laser has a pulse energy in excess of 10mJ.
Yes, the AWAVE GR Series laser can be designed and engineered with flexible laser architectures. Customers can contact Advanced Optowave for any laser requirements exceeding standard specifications.
