Description
The AWAVE SERIES by Advanced Optowave is a testament to the power of innovation in the field of industrial lasers. These cutting-edge laser systems are meticulously designed to meet the rigorous demands of continuous 24/7 production environments. Engineered with precision, the AWAVE GR Series models are Q-switched TEM00 mode lasers, offering unparalleled performance and reliability. At the core of their design is an innovative end-pumping technology that ensures superior efficiency and effectiveness.

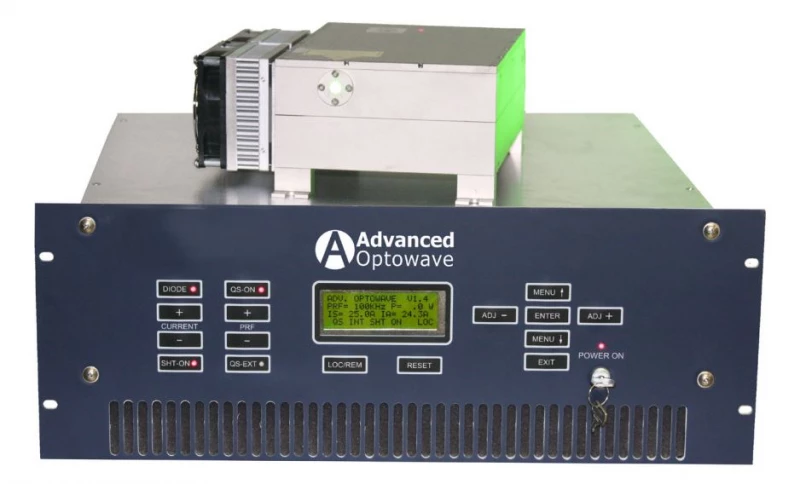

Each AWAVE GR Series system comprises a laser head and a laser controller, seamlessly connected by a 2.5-meter umbilical cable. The fiber-coupled pumping diodes are strategically housed within the laser controller, facilitating easy field replacement. This thoughtful design choice underscores the system's commitment to long-term reliability, with the laser head being sealed in a clean room environment. The lasers boast pulse frequencies ranging from 1-300 kHz, with options extending up to 1 MHz, and offer average power capabilities from 10mW to 30W. For those seeking even higher power, the AW-HP Series is recommended.
The AWAVE GR Series is renowned for its ultra-compact and lightweight construction, making it an ideal choice for diverse industrial applications. The inclusion of brand-new focusing optics and patent-pending harmonic conversion technologies further enhances its appeal. With a focus on cost-efficiency, these lasers promise low operational costs without compromising on performance. Moreover, the field-replaceable diode feature ensures minimal downtime, contributing to the system's proven 24/7 reliability.
Advanced Optowave's dedication to continuous product improvement ensures that the AWAVE SERIES remains at the forefront of laser technology. While specifications are subject to change, the company's commitment to quality and customer satisfaction remains unwavering. Each AWAVE Series laser system is backed by a limited warranty, offering peace of mind and assurance of performance. For further details on warranty coverage or specific product inquiries, customers are encouraged to contact Advanced Optowave directly.
AONano 527-12W-10K ND:YLF GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 12 W |
| Wavelength: | 527 nm |
| Repetition Rate: | 1 – 20 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 30 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Air |
| Average Power: | 5W, 10W, 15W |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Width (ns): | <10ns @20kHz, <30ns @100kHz, <10ns @20kHz, <40ns @100kHz, <10ns @20kHz, <40ns @100kHz |
| Pulse Energy (mJ @ 1kHz): | >150uJ, >300uJ, >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Communication Protocol: | RS-232 |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Enhances efficiency and performance for industrial applications.
- Air-Cooling (Average Power Up to 10W): Efficient cooling system ensures optimal performance without the need for liquid cooling.
- Excellent Beam Quality, Pulse Stability & Point Stability: Delivers precise and reliable results for demanding tasks.
- Patent Pending Harmonic Conversion Technologies: Advanced technology for superior laser performance.
- Ultra-Compact & Light-Weight: Easy to integrate and handle in various industrial environments.
- Brand-New Focusing Optics: Provides improved focusing capabilities for enhanced precision.
- Field-Replaceable Diode: Simplifies maintenance and reduces downtime.
- 24/7 Proven Reliability: Engineered for continuous operation in production environments.
- Low Operational Cost: Cost-effective solution due to efficient technology and design.
- Pulse Frequencies Ranging from 1-300 kHz: Offers flexibility for various applications, with an optional range up to 1 MHz.
- Average Power from 10mW to 30W: Suitable for a wide range of industrial applications, with higher power options available.
- Pulse Energy in Excess of 10mJ: Powerful enough to handle demanding tasks.
- Sealed Laser Head: Ensures long-term reliability by protecting the system from environmental factors.
Applications
- Precision Micromachining: High beam quality and stability ideal for micro-drilling and cutting.
- Semiconductor Processing: Accurate scribing, dicing, and marking of semiconductor wafers.
- Electronics Manufacturing: PCB drilling, component marking, and fine-feature structuring.
- Medical Device Fabrication: Laser cutting and marking of surgical instruments and implants.
- Photovoltaic Industry: Efficient scribing and edge isolation for solar cell production.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The pulse frequency range of AWAVE GR Series lasers is from 1-300 kHz (300 kHz to 1 MHz is optional).
The average power range of AWAVE GR Series lasers is from 10mW to 30W.
The pulse energy range of AWAVE GR Series lasers is in excess of 10mJ.
Yes, AWAVE GR lasers are designed and engineered with flexible laser architectures. Contact Advanced Optowave for any laser requirements exceeding standard specifications.
