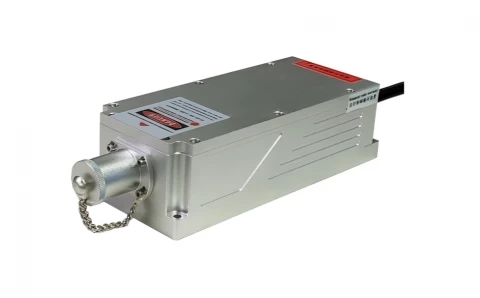

355nm DPSS CW Ultraviolet Laser UV-FN-355
Description
All solid-state UV laser featuring high output power stability, compact design, and easy operation. Suitable for various applications including collimation, medical treatment, and scientific experiments.
355nm DPSS CW Ultraviolet Laser UV-FN-355
Specifications |
|
|---|---|
| Wavelength: | 355 nm |
| Max Output Power: | 10 mW |
| Cooling Method: | Other (not specified) |
| Tunability: | Single Wavelength Tunable |
| Control Interface: | Other (not specified) |
| Power Stability (rms, Over 4 Hour: | <3 % |
| Transverse Mod: | Near TEM |
| M2: | <1.5 |
| Beam Diameter At The Aperture: | <1.2 mm |
| Beam Divergence, Full Angle: | <1.5 mrad |
| Polarization Ratio: | >50:1, Vertical (Horizontal Optional) |
| Warm-up Time: | <10 min |
| Operating Temperature: | 10-35 ℃ |
| Modulation OptioN: | TTL on/off, 1Hz-1kHz, 1kHz-10kHz; and Analog modulation optionan |
| Warranty: | 1 year |
| Power Supply (90-264VAC): | PSU-H-FDA/PSU-SR |
Features
- High output power stability
- Compact and lightweight design
- Long lifetime and low cost
- Easy to operate
- Suitable for various applications
Applications
- Collimation
- Laser medical treatment
- Scientific experiments
- Optical instrument
