Description
The 532L-1XB laser module from RPMC Lasers is a high-performance and ultra-compact solid-state laser designed for various applications.
With its thermally stabilized optics and hermetically sealed housing, this green CW DPSS laser ensures reliable and maintenance-free operation. The laser module offers multiple fiber-coupled options and is powered by a 5VDC input voltage.

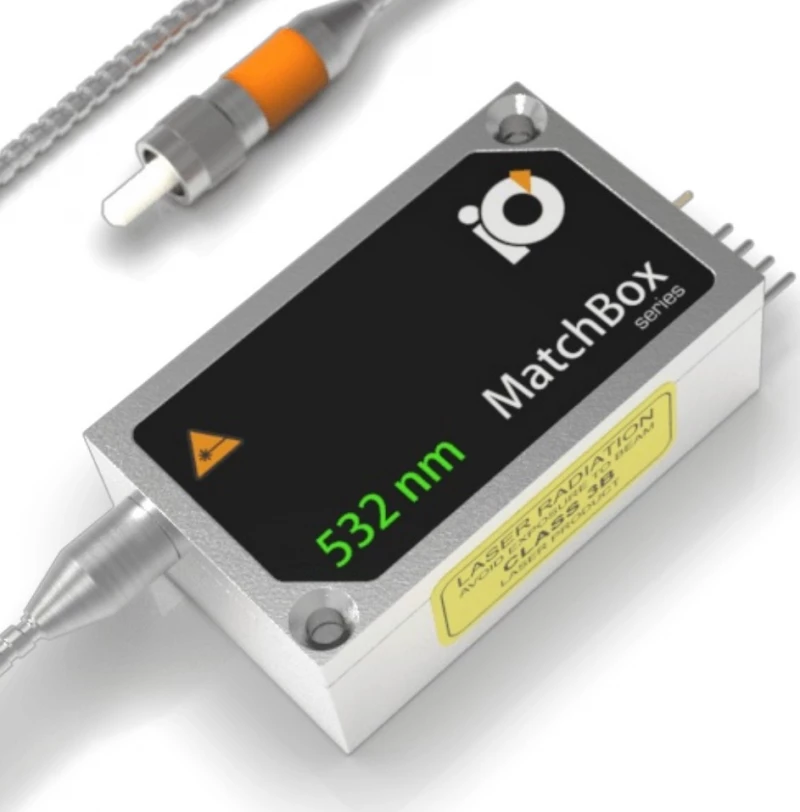

0532L-14B-NI-AT-NF Laser Module Single Mode 532nm 160mW
Specifications
| Wavelength: | 532 nm |
|---|---|
| Max Output Power: | 160 mW |
| Cooling Method: | Other (not specified) |
| Tunability: | Fixed Wavelength |
| Control Interface: | Other (not specified) |
| Input Voltage: | 5 VDC |
| Power Stability: | 0.05 % |
| Intensity Noise: | 0.5 % |
| Power Control: | Automatic |
| Transversal Modes: | Multiple |
| External Power Supply Requirement: | +5 V DC, 5A |
| Fiber Length: | 0.95 m |
| Optimum Heatsink Temperature: | 20 °C |
| Warm Up Time: | 0.2 min |
| Temperature Stabilization: | Internal TEC |
| Overheat Protection: | Yes |
| Storage Temperature: | -10 to +50 °C |
| Max. Power Consumption: | 5 W |
| Laser Safety Class: | 3B |
| Net Weight: | 0.1 kg |
| Dimensions: | 50 x 30 x 18 mm |
Download Data Sheet
Features
- Wavelength: 532nm
- Multiple Fiber Coupled Options
- Ultra-compact All-in-one Design
- Thermally stabilized optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- 5VDC Input Voltage
Applications
- Compact and lightweight design
- Wide range of fiber-coupled options available
- Stable and reliable performance
- Low noise operation
- Easy integration into systems
- Maintenance-free operation
- Customizable configurations
- High-quality beam properties
- Suitable for OEM integration
Frequently Asked Questions
What is the wavelength of the 0532L-14B-NI-AT-NF green CW DPSS module?
The wavelength of the 0532L-14B-NI-AT-NF DPSS module is 532 nm.
What is the output power of the 0532L-14B-NI-AT-NF green DPSS module?
The output power of the 0532L-14B-NI-AT-NF DPSS module is 160mW.
What is the warranty period for the Matchbox series modules?
The warranty period for the Matchbox series modules is 12 months.
What is the control interface type for the 0532L-14B-NI-AT-NF CW DPSS module?
The control interface type for the 0532L-14B-NI-AT-NF DPSS module is UART/USB.
What are some applications of the 0532L-14B-NI-AT-NF green CW DPSS module?
Some applications of the 0532L-14B-NI-AT-NF DPSS module include laser diffraction particle analysis, confocal microscopy, food sorting, and flow cytometry.
