Description
The SDL-593-XXXT is a high-performance yellow DPSS laser emitting at 593nm with an output power of 500-1000mW. It has a near TEM00 transverse mode and features TTL modulation and customizable options such as power stability, analog modulation, line output versions, and fiber-coupled versions. The laser has a long lifetime of up to 10,000 hours and comes with a 1-year warranty. It is suitable for a variety of applications in industrial, medical, scientific, defense, and entertainment fields.

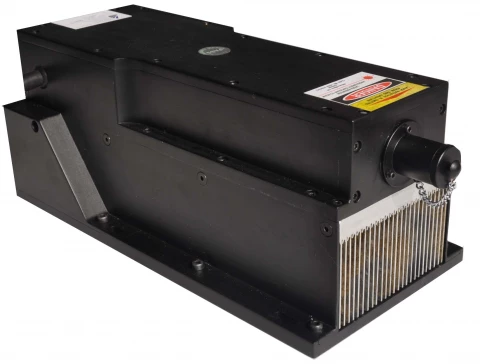

SDL-593-XXXT: 500-1000mW Yellow DPSS Laser with TTL Modulation
Specifications
Wavelength: | 593 nm |
---|---|
Max Output Power: | 1000 mW |
Cooling Method: | Air-Cooled |
Tunability: | Not Specified |
Control Interface: | Not Specified |
Warranty Time: | 1 year |
Expect Life Time: | 10,000 hours |
Modulation: | TTL Modulation >5kHz |
Operating Temperature: | 10-35 °C |
Polarization Ratio: | > 100:1 |
Beam Diameter At The Aperture: | ~ 4.0 mm |
Beam Divergence (1/e2, Full Angle): | < 2.0 mrad |
M2 Factor: | < 3.0 |
Warm-up Time: | < 15 minutes |
Pointing Stability After Warm-up: | < 0.05 mrad |
Power Stability Over 2 Hours After Warm-up: | < 5 % |
Operation Mode: | CW |
Transverse Mode: | Near TEM00 |
Features
- 4 or 8 hours Longer operation period output power stability are available on request.
- Better (<3%,<1%) power stability are available on request.

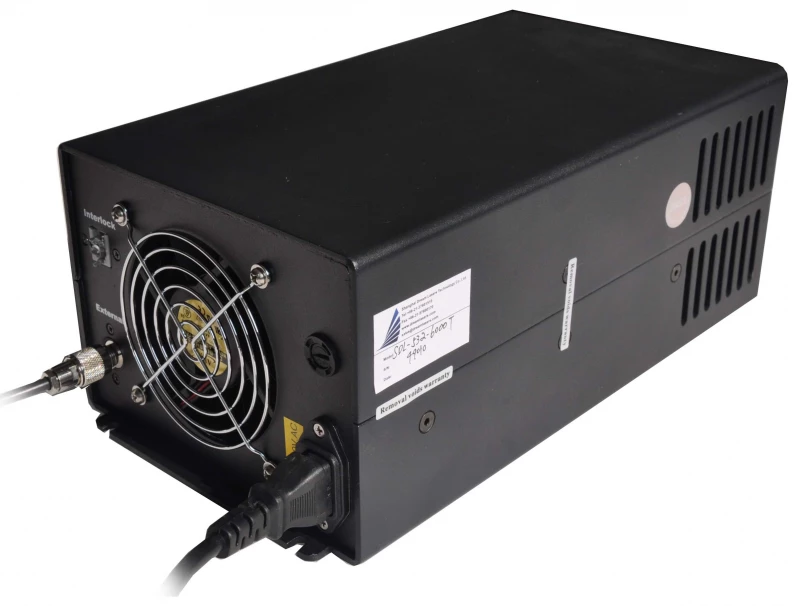

- Other version power supply are available on request such as 1. Current display, power adjustable function version and 2. OEM DC input version.
- Analog Modulation >2KHz or higher as option.
- Up to 30Khz TTL modulation on request.
- Line output version are available on request.
- Fiber coupled version are available on request.
- Longer warranty on request.
- Other custom-made design is available, please contact us for details.
Applications
- Industrial manufacturing: laser alignment, spectroscopy, and sensing
- Medical: dermatology, surgical procedures, and diagnostics
- Scientific research: materials processing, spectroscopy, and microscopy
- Defense and security: LIDAR, target designation, and countermeasures
Frequently Asked Questions
What is the output power of the SDL-593-XXXT yellow DPSS laser?
The SDL-593-XXXT yellow DPSS laser has an output power of 500-1000mW.
What is the transverse mode of the SDL-593-XXXT yellow DPSS laser?
The SDL-593-XXXT yellow DPSS laser has a near TEM00 transverse mode.
What are the customizable options available for the SDL-593-XXXT yellow DPSS laser?
The SDL-593-XXXT yellow DPSS laser offers customizable options such as power stability, analog modulation, line output versions, and fiber-coupled versions.
What is the lifetime of the SDL-593-XXXT yellow DPSS laser?
The SDL-593-XXXT yellow DPSS laser has a long lifetime of up to 10,000 hours.
What applications is the SDL-593-XXXT yellow DPSS laser suitable for?
The SDL-593-XXXT yellow DPSS laser is suitable for a variety of applications in industrial, medical, scientific, defense, and entertainment fields.
