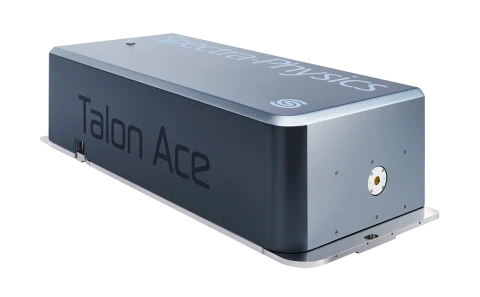

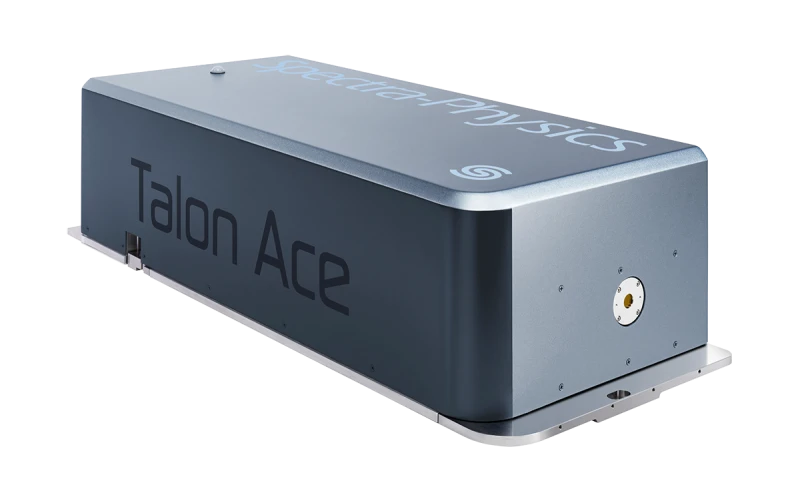

Talon® Ace™ High-Power UV Lasers with TimeShift™ Programable Pulse Capacity

Name: Talon® Ace™ High-Power UV Lasers with TimeShift™ Programable Pulse Capacity
Brand: MKS l Spectra-Physics
Availability: InStock

Description

Talon Ace UV100 is a powerful new pulsed nanosecond laser, delivering an industry-leading >100 W UV power with compelling cost-performance in a small form factor. The new laser delivers unprecedented flexibility, including TimeShift programmable pulse capability and a wide pulse repetition-rate range, to enable micromachining process optimization. Talon Ace UV100 is ideal for high-speed and high-quality manufacturing in micromachining of advanced electronics packaging, PC boards, photovoltaics, ceramics, semiconductors, and other materials and components.

Specifications

Wavelength:	343 nm
Cooling Method:	Chiller cooling
Tunability:	Fixed Wavelength
Control Interface:	Other (not specified)
UV Power:	>100 W
Pulse Energy:	>500 µJ
Pulse Width:	<2 ns to >50 ns
Pulse Repetition Rate:	single shot to 5.0 MHz
UV Power At 200 KHz 10 Ns:	>100 W
Repetition Rates:	up to 5 MHz

Download Data Sheet

Features

>100 W UV at 200 kHz 10 ns (>500 μJ/pulse)

TimeShift Technology

Repetition rates up to 5 MHz for fast processing

Lowest $/W and COO for high power ns UV

Robust and reliable for OEM tools

24x7 industrial reliability

Applications

Flex PCB Cutting and Drilling

Advanced Electronics Packaging Cutting and Drilling

Photovoltaics Processing

LED Processing

OLED Drilling and Lift-Off

Li-Ion Battery Processing

Through Glass Via (TGV) Drilling

High-Speed Marking

CFRP Cutting, Drilling & Surface Texturing

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

MKS l Spectra-Physics

On FindLight:

since 2025

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Talon Ace UV100?

Talon Ace UV100 is a powerful pulsed nanosecond laser that delivers over 100 W UV power, designed for high-speed and high-quality manufacturing in micromachining applications.

What industries and applications can the Talon Ace UV100 be used for?

The Talon Ace UV100 is ideal for industries such as advanced electronics packaging, PC boards, photovoltaics, ceramics, semiconductors, and more. Applications include flex PCB cutting and drilling, photovoltaics processing, LED processing, OLED drilling and lift-off, Li-Ion battery processing, and high-speed marking.

What is TimeShift technology in the Talon Ace UV100?

TimeShift technology in the Talon Ace UV100 allows for programmable pulse capability, enabling adjustable pulse widths, pulse shaping, pulse splitting, and burst mode operation. This enhances process customization and efficiency in micromachining.

What are the pulse width and repetition rate capabilities of the Talon Ace UV100?

The Talon Ace UV100 offers adjustable pulse widths from less than 2 ns to more than 50 ns, and pulse repetition rates ranging from single shot to 5.0 MHz.

How does the Talon Ace UV100 ensure reliability and precision?

The Talon Ace UV100 is fully automated and computer-controlled, providing excellent beam pointing stability and pulse-to-pulse energy stability, ensuring high precision and operational consistency. It also undergoes extensive environmental qualification testing for high reliability.

What is the significance of the Talon Ace UV100's high UV power?

The high UV power (>100 W) of the Talon Ace UV100 allows for maximum processing flexibility, enabling efficient material removal and high throughput in industrial applications.

What are the benefits of using the Talon Ace UV100 in industrial applications?

The benefits include high precision, high throughput, operational consistency, and the ability to process more materials faster. It offers the lowest cost per watt and cost of ownership for high-power nanosecond UV lasers, making it robust and reliable for 24/7 industrial use.
