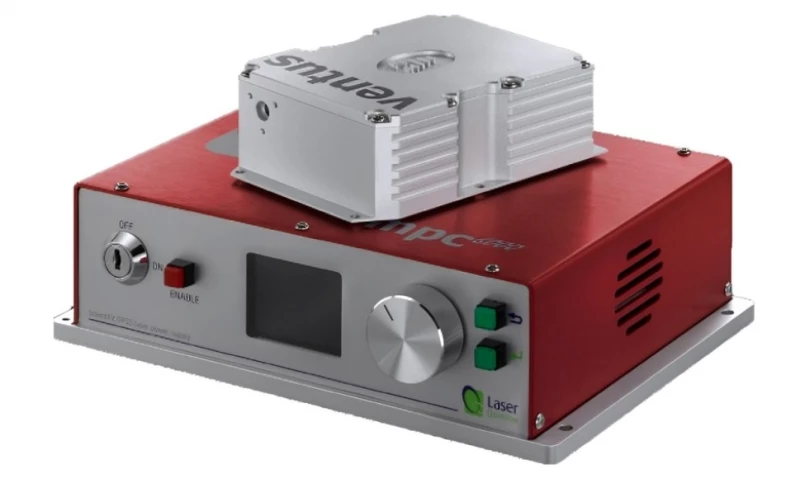

Ventus DPSS Continuous Wave Laser Series for Scientific Applications

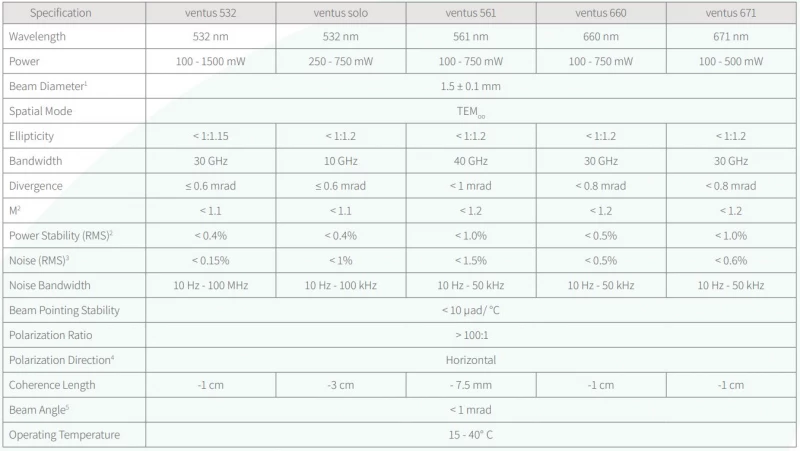

Specifications

Wavelength: 532 nm
Max Output Power: 100 mW
Cooling Method: Air-Cooled, Fan-cooled, Passive cooling, Active cooling, Heat sink
Tunability: Fixed Wavelength
Control Interface: Digital Control
Beam Diameter: 1.5 ± 0.1 mm
Spatial Mode: TEMoo
Ellipticity: < 1:1.2
Bandwidth: 10 - 40 model dependent GHz
Divergence: ≤ 0.6 - 1.0 model dependent mrad
M2: <1.2
Beam Pointing Stabilit: <10 µrad/ °C
Polarization Ratio: >100:1
Polarization Direction: Horizontal
Beam Angle: <1 mrad
Document icon Download Data Sheet Download icon

Features


  • Exceptional Power Stability: The Ventus series boasts outstanding power stability, ensuring consistent and reliable performance over extended periods of operation.

  • Tight Focus and Efficient Fiber Coupling: With its precise focus and efficient fiber coupling capabilities, the Ventus laser delivers repeatable and consistent results across various applications.

  • High Power on Sample: Offering high power output directly on the sample, the Ventus series optimizes performance in diverse scientific experiments and industrial processes.

  • Cost-Effective and Customizable: Designed for cost efficiency and customization, the Ventus platform allows users to tailor laser parameters to specific research or industrial requirements.

  • Efficient Thermal Management: Featuring advanced thermal management technology, the Ventus laser minimizes cooling requirements and associated costs, enhancing overall system efficiency.

  • Compact and Easy Integration: With its compact size and plug-and-play design, the Ventus laser seamlessly integrates into existing setups, reducing installation time and increasing productivity.

Applications


  • Laser-Based Diagnostic Applications: The Ventus laser series is ideal for a wide range of laser-based diagnostic techniques, including fluorescence spectroscopy, flow cytometry, and confocal microscopy.

  • Analytical Research: In analytical chemistry and material science, the Ventus laser enables precise sample analysis, such as Raman spectroscopy, mass spectrometry, and laser-induced breakdown spectroscopy (LIBS).

  • Micromachining: With its high power and stability, the Ventus laser is well-suited for micromachining applications, including laser ablation, surface structuring, and microfabrication.

  • Fine Material Processing: From laser cutting and welding to precision drilling and engraving, the Ventus series delivers the accuracy and reliability required for fine material processing tasks across various industries.
