Description
The Novanta Torus DPSS continuous wave laser series is engineered for applications that demand exceptionally clean, narrow-linewidth emission and long-term spectral stability. Built around an ingenious virtual ring cavity architecture, the Torus family delivers true single longitudinal mode (SLM) operation with a bandwidth of less than 1 MHz and outstanding spectral purity. This combination results in a long coherence length of over 100 meters, making these sources ideal for high-precision interferometry, holography, and advanced optical metrology where fringe visibility and phase stability are critical.
Available at 532 nm and 660 nm with output powers up to 750 mW, the Torus lasers provide a near‑perfect TEM00 spatial mode (M² < 1.1), low divergence, and a well‑defined beam diameter for efficient coupling into free‑space setups and single‑mode fibers. The intrinsic beam quality, combined with excellent ellipticity (< 1:1.1) and a tightly controlled beam angle, ensures precise beam positioning and uniform interaction with samples or optical components. These characteristics are particularly valuable in Raman spectroscopy, Brillouin scattering experiments, and other analytical techniques that rely on high spatial coherence and stable beam propagation.
To maintain consistent performance over time, the Torus series incorporates an active mode‑locking approach specifically designed to minimize mode drift and effectively eliminate mode hops. By stabilizing the laser cavity and locking the emission to a single longitudinal mode, the system delivers a remarkably stable wavelength profile, as evidenced by minimal wavelength shift versus both temperature and time. This stability underpins highly repeatable measurements in long‑duration experiments, multi‑point process monitoring, and precision materials processing workflows where small spectral deviations can undermine data integrity or machining accuracy.
Power and noise characteristics are optimized for sensitive detection and high signal‑to‑noise ratio applications. With RMS power stability down to <0.2% over extended test durations and intensity noise typically ≤1% over the specified noise bandwidth, the Torus lasers support reliable quantitative measurements in demanding laboratory and industrial environments. A high polarization ratio (>100:1) with a well‑defined polarization direction (vertical as standard, with horizontal available on request) further enhances performance in polarization‑dependent experiments, interferometric setups, and polarization‑sensitive imaging systems.
Designed by Laser Quantum and integrated into Novanta’s broader portfolio of photonics technologies, the Torus DPSS CW laser series is well suited for deployment in laser‑based diagnostics, analytical instrumentation, micromachining tools, and fine material processing platforms. Its compact, robust construction and 15–35 °C operating temperature range support easy integration into OEM systems as well as benchtop research instruments. For users seeking a narrow linewidth, single‑frequency CW laser with exceptional spectral purity and long‑term stability, the Torus series represents a proven, high‑performance solution aligned with the stringent requirements of modern photonics applications.

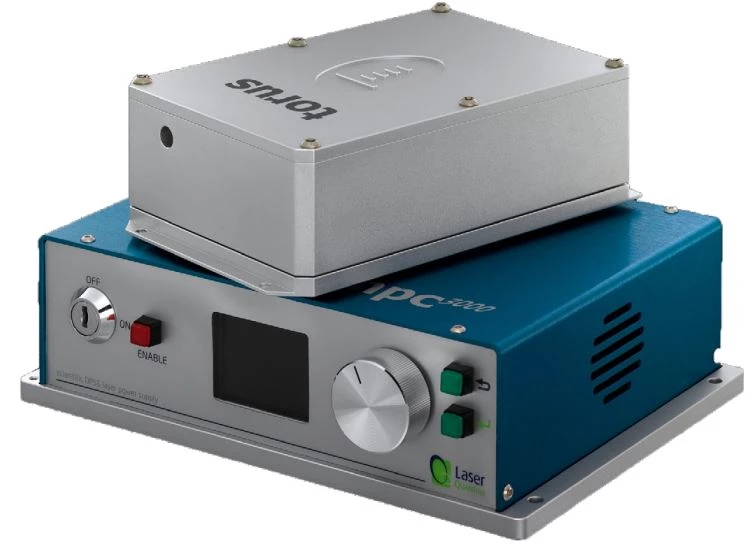

Torus DPSS Continuous Wave Laser Series with Active Mode Locking
Specifications
| Wavelength: | 660 nm |
|---|---|
| Max Output Power: | 200 mW |
| Cooling Method: | Air-Cooled, Fan-cooled, Passive cooling, Active cooling, Heat sink |
| Tunability: | Fixed Wavelength |
| Control Interface: | Digital Control |
| Wavelength (torus 532): | 532 nm |
| Wavelength (torus 660): | 660 nm |
| Power (torus 532): | 250 - 750 mW |
| Power (torus 660): | 150 - 200 mW |
| Beam Diameter: | 1.7 ± 0.2 mm |
| Spatial Mode: | TEM00 |
| Ellipticity: | < 1:1.1 |
| Bandwidth: | 1 MHz |
| Divergence (torus 532): | ≤ 0.45 mrad |
| Divergence (torus 660): | ≤ 0.55 mrad |
| M2: | < 1.1 |
| Power Stability (RMS, Torus 532): | < 0.2% |
| Power Stability (RMS, Torus 660): | < 1.0% |
| Noise (RMS): | ≤ 1% |
| Noise Bandwidth (torus 532): | 10 Hz - 100 MHz |
| Noise Bandwidth (torus 660): | 10 Hz - 50 kHz |
| Beam Pointing Stability: | < 2 µrad/°C |
| Polarization Ratio: | > 100:1 |
| Polarization Direction: | Vertical |
| Coherence Length: | > 100 m |
| Beam Angle: | < 1 mrad |
| Operating Temperature: | 15 - 35 °C |
Got questions about specs? Use the inquiry form to ask.
Features
- Single Longitudinal Mode DPSS CW Laser – True single-frequency operation with < 1 MHz linewidth for ultra‑high spectral resolution in demanding applications.
- Exceptional Spectral Purity – Ingenious virtual ring cavity design and active mode locking deliver market‑leading sideband suppression, ideal for Raman spectroscopy, Brillouin scattering, interferometry, and holography.
- Active Mode Locking for Ultimate Stability – Advanced control electronics minimize mode drift and virtually eliminate mode hops, providing an ultra‑stable spectral output and highly repeatable results over long measurement times.
- Ultra‑Narrow Linewidth & Long Coherence Length – > 100 m coherence length supports high‑precision interferometric measurements, high‑contrast holographic recording, and narrowband filtering applications.
- High Output Power Options – Available at 532 nm (250–750 mW) and 660 nm (150–200 mW), enabling strong signal levels and short integration times in spectroscopy, metrology, and microscopy.
- Excellent Beam Quality (TEM00) – Near‑diffraction‑limited performance with M² < 1.1, ellipticity < 1:1.1, and beam diameter 1.7 ± 0.2 mm for tight focusing, efficient fiber coupling, and uniform illumination.
- Low Beam Divergence & Tight Pointing Stability – Divergence of ≤ 0.45 mrad (532 nm) / ≤ 0.55 mrad (660 nm), beam angle < 1 mrad, and beam pointing stability < 2 µrad/°C support long optical paths and alignment‑sensitive setups.
- Outstanding Power Stability & Low Noise – Power stability < 0.2% RMS (532 nm) / < 1.0% RMS (660 nm) over >100 hours and noise ≤ 1% RMS (10 Hz – 100 MHz / 50 kHz), ensuring clean baselines for quantitative measurements.
- High Polarization Extinction Ratio – Linear polarization with > 100:1 polarization ratio (vertical standard, horizontal available on request) for polarization‑sensitive applications such as Raman, ellipsometry, and interferometry.
- Engineered for Demanding Industrial & Scientific Use – Designed by Laser Quantum / Novanta for 24/7 reliability in OEM systems and labs, supporting diagnostic, analytical, micromachining, and fine material processing tasks.
- Wide Operating Temperature Range – Stable performance from 15–35 °C, allowing integration into a variety of environmental conditions and instrument platforms.

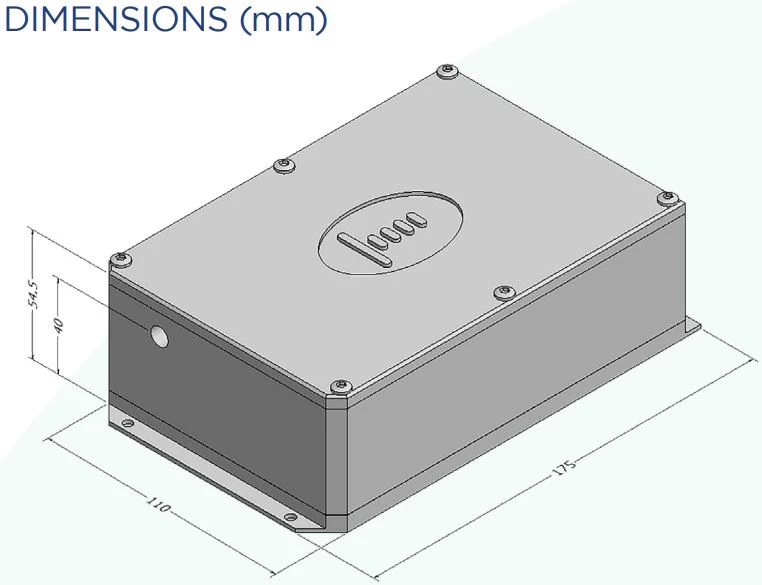

- Compact, Integration‑Ready Head – Small footprint DPSS design with robust mechanical housing and standardized beam height simplifies integration into optical benches, spectroscopy systems, and imaging platforms.
- Intelligent Control Electronics – Advanced driver and control system support precise power setting, monitoring, and system‑level integration for OEMs and research users.
- Low Total Cost of Ownership – Long lifetimes, solid‑state reliability, and factory‑aligned optomechanics minimize maintenance, downtime, and recalibration in high‑duty‑cycle environments.
- Ideal for High‑End Photonics Applications – Optimized for Raman & Brillouin spectroscopy, interferometry, holography, metrology, optical trapping, confocal and super‑resolution microscopy, and precision materials processing.
Applications
- Raman Spectroscopy – High spectral purity and <1 MHz linewidth at 532 nm and 660 nm make the torus DPSS CW lasers ideal excitation sources for Raman spectroscopy in chemistry, materials science, and life sciences, delivering excellent signal-to-noise ratios and well-resolved Raman peaks.
- Brillouin Scattering and Brillouin Microscopy – The single longitudinal mode, ultra-narrow bandwidth and >100 m coherence length provide the frequency resolution and stability required for Brillouin light scattering measurements of viscoelastic properties in polymers, crystals, and biological tissues.
- Interferometry and Precision Metrology – Active mode locking and superb wavelength stability minimize drift and mode hopping, enabling high-precision interferometric measurements for surface profiling, optical testing, and displacement / vibration metrology.
- Holography and Holographic Data Storage – Long coherence length, TEM00 spatial mode, and excellent beam pointing stability support high-contrast hologram formation for scientific holography, holographic interferometry, and volume holographic data recording.
- Optical Coherence and Coherent Detection Experiments – Single longitudinal mode emission and narrow linewidth support coherent detection schemes, heterodyne interferometry, and optical phase-sensitive measurements in advanced optics labs.
- High-Resolution Spectroscopy – The <1 MHz linewidth and suppressed sidebands enable high-resolution absorption, fluorescence, and pump–probe spectroscopy for atomic, molecular, and solid-state systems where precise spectral discrimination is critical.
- Laser Doppler Velocimetry (LDV) and Flow Diagnostics – Stable single-frequency output and low noise make these lasers suitable for velocity measurements in fluids and gases using Doppler shift techniques, including particle image velocimetry in research and industrial environments.
- Optical Trapping and Tweezers – High beam quality (M² < 1.1), low divergence, and excellent pointing stability allow tight focusing for optical trapping of microparticles and biological samples, particularly in single-beam gradient traps and advanced biophotonics setups.
- Confocal and Super-Resolution Microscopy Illumination – Stable CW output at 532 nm and 660 nm is well suited as an excitation source for confocal, fluorescence, STED, and other advanced microscopy modalities requiring low noise and precise beam control.
- Laser-Induced Fluorescence (LIF) – Narrow linewidth and stable output power enable sensitive LIF measurements in gas-phase diagnostics, plasma research, combustion studies, and fluorescence-based bioanalytical assays.
- Holographic Optical Tweezers and Beam Shaping – The high spatial coherence and TEM00 beam facilitate efficient spatial light modulator (SLM) and diffractive optical element (DOE) use for creating complex optical landscapes and multiple traps.
- Precision Alignment and Reference Beams – The well-defined beam diameter, low divergence and high pointing stability make these lasers suitable as reference beams for optical alignment in interferometers, imaging systems, and beam delivery paths.
- Frequency Doubling, Mixing and Nonlinear Optics – Single-frequency, low-noise operation provides an excellent pump for nonlinear crystals and waveguides in second-harmonic generation, sum-frequency generation, and other nonlinear optical experiments.
- Spectral Calibration and Wavelength Referencing – The exceptional wavelength stability supports use as a reference source for spectrometer calibration, wavelength meters, and high-precision optical instrumentation.
- Optical Metrology in Semiconductor and Microelectronics – High coherence and beam quality are advantageous for thin-film metrology, overlay measurements, and inspection systems requiring stable, narrow-linewidth illumination.
- Fiber Optic Sensing and Distributed Measurements – Narrow linewidth and long coherence length support interferometric and coherent fiber sensing techniques, such as fiber Bragg grating interrogation and phase-sensitive distributed sensing.
- Quantum Optics and Fundamental Physics Experiments – The torus series provides the spectral purity and stability necessary for many quantum optics setups, including single-photon generation, quantum interference, and coherent manipulation of atomic or solid-state systems.
Frequently Asked Questions
What applications are suitable for the Torus Series DPSS Laser?
How does TruLoQ™ technology benefit laser performance?
What is the significance of the 1200 g drop-test?
Can the Torus Series DPSS Laser be remotely controlled?
How does active mode locking contribute to laser stability?
Are there customizable options available for this laser?
What support is available for troubleshooting and optimization?
Got more questions? Use the inquiry form to ask the supplier directly.
