Description

Introducing the DPSS 1064nm IR Laser from Shanghai Dream Lasers Technology Co., Ltd. This high-powered laser boasts an output power range of 100000-500000mW and a wavelength of 1064±1nm, making it ideal for a wide range of applications.

The SDL-1064-XXXT model features near TEM00 transverse mode and operates in CW mode with a power stability of less than 5% over 2 hours after warm-up. The laser's pointing stability after warm-up is less than 0.05 mrad, ensuring precision and accuracy.

With a warm-up time of less than 15 minutes, the laser is ready to use quickly. The beam divergence of the laser is less than 2.5mrad (1/e2, full angle), and the beam diameter at the aperture is approximately 9.0 mm.

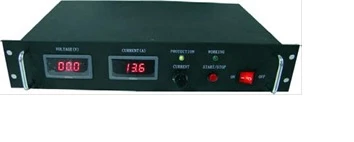

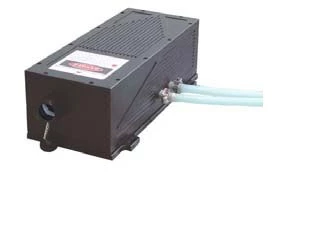

The laser is water-cooled for optimal performance and comes with an optional 5mW @ 650nm pilot light. The laser head (SDL-LH-1200) measures 375x165x105mm, while the power supply (SDL-PS-1700) measures 483x255x98mm.

The laser's input voltage is 90-265VAC 50/60Hz, and it has TTL modulation capabilities of over 5KHz. Additionally, the laser has an impressive 10000-hour life expectancy and comes with a 1-year warranty.

Customization options for this laser include longer operation period output power stability, better power stability (<3%, <1%), other version power supplies, analog modulation >2KHz or higher, up to 30Khz TTL modulation, line output versions, fiber-coupled versions, longer warranties, and other custom-made designs.

High-Powered DPSS 1064nm IR Laser for Precision Applications | Shanghai Dream Lasers

Visit the Shanghai Dream Lasers Technology Co., Ltd. Store

Specifications

Wavelength: 1064 nm
Max Output Power: 500000 mW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 4 or 8 hours Longer operation period output power stability are available on request.
  • Better (<3%,<1%) power stability are available on request.
  • Other version power supply are available on request: 1) Current display, power adjustable function version and 2) OEM DC input version.
  • Analog Modulation >2KHz or higher as option.
  • Up to 30Khz TTL modulation on request.
  • Line output version are available on request.
  • Fiber coupled version are available on request.
  • Longer warranty on request.
  • Other custom-made design is available, please contact us for details.

Applications

  • Laser marking and engraving
  • Scientific research
  • Material processing, cutting, and drilling
  • Industrial manufacturing and production
  • Spectroscopy and sensing
  • Medical and aesthetic treatments
  • Defense and security applications
  • Laser pumping for other lasers or nonlinear optics.

Frequently Asked Questions

What is the output power range of the DPSS 1064nm IR Laser?
The output power range of the DPSS 1064nm IR Laser is 100000-500000mW.
What is the warm-up time for the laser?
The warm-up time for the laser is less than 15 minutes.
What is the beam divergence of the laser?
The beam divergence of the laser is less than 2.5mrad (1/e2, full angle).
Is the laser water-cooled?
Yes, the laser is water-cooled for optimal performance.
What customization options are available for this laser?
Customization options for this laser include longer operation period output power stability, better power stability, other version power supplies, analog modulation, TTL modulation, line output versions, fiber-coupled versions, longer warranties, and other custom-made designs.

Got more questions? Use the inquiry form to ask the supplier directly.
