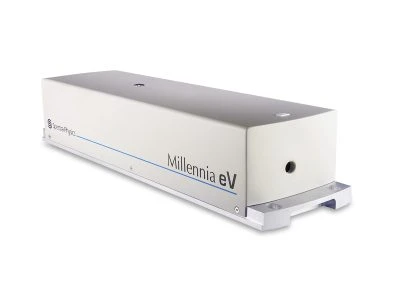

Millennia® eV™ High Power CW DPSS Lasers

MKS l Spectra-Physics

Specifications

Wavelength: 532 nm
Max Output Power: 25 mW
Cooling Method: Air-Cooled
Tunability: Multi-Wavelength Tunable
Control Interface: Other (not specified)
Output Power: 5 W, 10 W, 15 W, 20 W, 25 W
Wavelength: 532 nm
Beam Quality (M²): <1.1
Beam Diameter (1/e²): 2.3 mm ±10%
Beam Divergence: <0.5 mrad
Polarization: >100:1 vertical
Power Stability: ±1%
Beam Pointing Stability: 2 μrad/°C
Noise: <0.04% rms
Operating Voltage: 100–240 VAC, 50/60 Hz
Power Consumption: <250 W (max), <350 W (max)
Operating Temperature: 64–95°F (18–35°C)
Relative Humidity: 8–85%, non-condensing
Cooling Requirements: Closed-loop chiller
Dimensions (L × W × H): 14.75 x 6.00 x 4.08 in (374.7 x 152.4 x 103.8 mm), 23.0 x 6.0 x 4.5 in (584.2 x 152.4 x 114.3 mm)
Weight: <15 lbs (<7 kg), <26 lbs (<12 kg)
Document icon Download Data Sheet Download icon

Features


  • Industry leading power scalability from 5 W to 25 W

  • Exceptional value and low cost of ownership

  • Integrated laser head and power supply

  • Best-in-class power stability and beam quality

Applications


  • Ultrafast Spectroscopy

  • Photovoltaic Manufacturing

  • Laser doping of solar cells

  • Materials Processing

  • CW and mode-locked Ti:Sapphire laser pumping

  • Solid state and dye laser pumping
