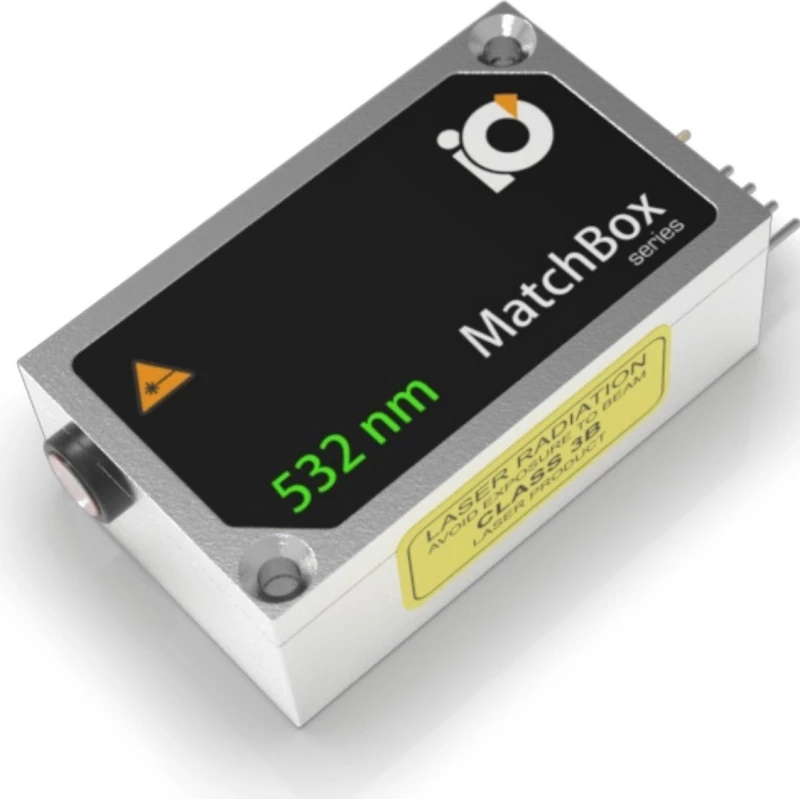

Thumbnail of 0532L-11B-NI-NT-NF: Solid State Laser Module (Single Mode | 532nm | 200mW) photo 1

Description

The 532L-1XB Laser Module is a compact and versatile solid-state laser designed for various applications. It offers excellent beam quality and accuracy, making it ideal for applications requiring precise laser performance. The laser module features thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation.

With multiple fiber-coupled options available, it provides flexibility in beam delivery. The 532L-1XB operates on a 5VDC input voltage and is customizable to meet specific requirements.

0532L-11B-NI-NT-NF: Solid State Laser Module (Single Mode | 532nm | 200mW)

Visit the RPMC Lasers, Inc. Store

Specifications

Wavelength: 532 nm
Max Output Power: 200 mW
Cooling Method: Other (not specified)
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Input Voltage: 5 VDC
Laser Safety Class: 3B
Max. Power Consumption: 15 W
Net Weight: 0.12 kg
Storage Temperature: -10 to +50 °C
Overheat Protection: Yes
Temperature Stabilization: Internal TEC
Warm Up Time: 1 min
Optimum Heatsink Temperature: 25 °C
Dimensions: 50 x 30 x 18 mm
External Power Supply Requirement: +5 V DC, 5A
Longitudinal Modes: Multiple
Modulation Bandwidth: 500 Hz
Polarization Contrast: 1000
Polarization Direction: Vertical
M Effective: 1.3
Vertical Beam Divergence: 1.1 mrad
Horizontal Beam Divergence: 1.1 mrad
Transversal Modes: TEM00
Power Stability: 0.1 %
Intensity Noise: 3 %
Spectral Line Width FWHM: 0.1 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 532nm
  • Multiple Fiber Coupled Options
  • Ultra-compact All-in-one Design
  • Thermally stabilized optics
  • Monolithic Design
  • Hermetically Sealed
  • Automatic Power Control
  • 5VDC Input Voltage

Applications

  • Integration into commercial flow cytometers
  • Life Science applications
  • Optical surface flatness testing
  • Confocal microscopy
  • Doppler LIDAR
  • Raman spectroscopy
  • Holography, interferometry & spectroscopy
  • Precision interferometry
  • Multi-color fluorescence microscopy
  • Machine vision
  • THz detection
  • And more

Frequently Asked Questions

What are the applications of the 0532L-11B-NI-NT-NF DPSS module?
The applications of the 0532L-11B-NI-NT-NF DPSS module include Laser Diffraction Particle Analysis, Confocal Microscopy, Food Sorting, and Flow Cytometry.
What is the warranty period for the Matchbox series CW DPSS laser modules?
The warranty period for the Matchbox series modules is 12 months.
What is the output power of the 0532L-11B-NI-NT-NF DPSS module?
The output power of the 0532L-11B-NI-NT-NF DPSS module is 200mW.
What is the wavelength of the 0532L-11B-NI-NT-NF CW DPSS module?
The wavelength of the 0532L-11B-NI-NT-NF DPSS module is 532nm.
Is the 0532L-11B-NI-NT-NF DPSS module compatible with Arduino?
Yes, the 0532L-11B-NI-NT-NF DPSS module is Arduino compatible.

Got more questions? Use the inquiry form to ask the supplier directly.
