Description

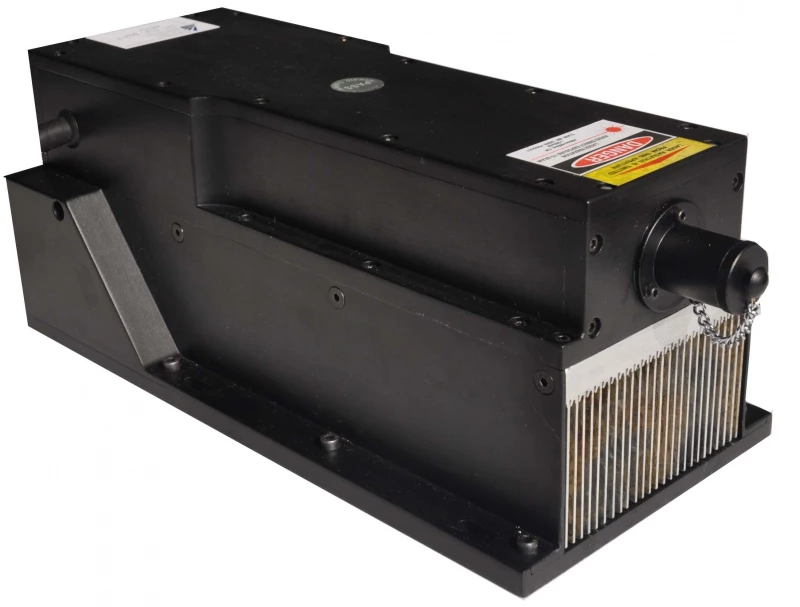

The SDL-561-XXXT is a high-power green DPSS laser emitting at 561nm with an output power of 1500-2500mW. It has a near TEM00 transverse mode and features TTL modulation and customizable options such as power stability, analog modulation, line output versions, and fiber-coupled versions. The laser has a long lifetime of up to 10,000 hours and comes with a 1-year warranty. It is suitable for a variety of applications in industrial, medical, scientific, defense, and entertainment fields.
SDL-561-XXXT: 1500-2500mW Green DPSS Laser with TTL Modulation
Specifications
| Wavelength: | 561 nm |
|---|---|
| Max Output Power: | 2500 mW |
| Transverse Mode: | Near TEM00 |
| Operation Mode: | CW |
| Power Stability Over 2 Hours After Warm-up: | < 5 % |
| Pointing Stability After Warm-up: | < 0.05 mrad |
| Warm-up Time: | < 15 minutes |
| M2 Factor: | < 3.0 |
| Beam Divergence (1/e2, Full Angle): | < 2.0 mrad |
| Beam Diameter At The Aperture: | ~4.0 mm |
| Operating Temperature: | 10 - 35 °C |
| Modulation: | TTL Modulation >5kHz |
| Expect Life Time: | 10,000 hours |
| Warranty Time: | 1 year |
Download Data Sheet
Features
- 4 or 8 hours Longer operation period output power stability are available on request.
- Better (<3%,<1%) power stability are available on request.

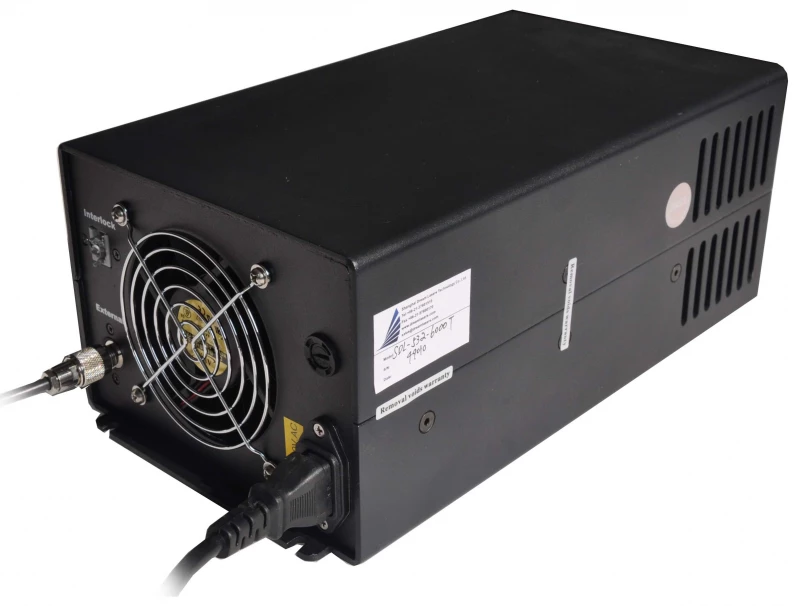

- Other version power supply are available on request: 1. Current display, power adjustable function version | 2. OEM DC input version.
- Analog Modulation >2KHz or higher as option.
- Up to 30Khz TTL modulation on request.
- Line output version are available on request.
- Fiber coupled version are available on request.
- Longer warranty on request.
- Other custom-made design is available, please contact us for details.
Applications
- Laser spectroscopy and interferometry
- Fluorescence microscopy and imaging
- Laser marking and engraving of metals and plastics
- Alignment and positioning in manufacturing processes
- Laser scanning and inspection in the semiconductor industry
- LIDAR and remote sensing in atmospheric and environmental research
- Laser light shows and special effects in the entertainment industry
Frequently Asked Questions
What is the output power range of the SDL-561-XXXT laser?
The SDL-561-XXXT laser has an output power range of 1500-2500mW.
What is the lifetime of the SDL-561-XXXT laser?
The SDL-561-XXXT laser has a long lifetime of up to 10,000 hours.
What are the customizable options available for the SDL-561-XXXT laser?
The SDL-561-XXXT laser offers customizable options such as power stability, analog modulation, line output versions, and fiber-coupled versions.
What applications is the SDL-561-XXXT laser suitable for?
The SDL-561-XXXT laser is suitable for a variety of applications in industrial, medical, scientific, defense, and entertainment fields.
What is the warranty period for the SDL-561-XXXT laser?
The SDL-561-XXXT laser comes with a 1-year warranty.
