Description
The SDL-532-XXXT is a green DPSS laser emitting at 532nm with an output power of 600-1500mW and a TEM00 transverse mode. It features TTL modulation and customizable options such as power stability, analog modulation, line output versions, and fiber-coupled versions. The laser has a long lifetime of up to 10,000 hours and comes with a 1-year warranty. It is suitable for applications such as laser marking and engraving, laser spectroscopy and interferometry, and alignment and positioning in manufacturing processes.

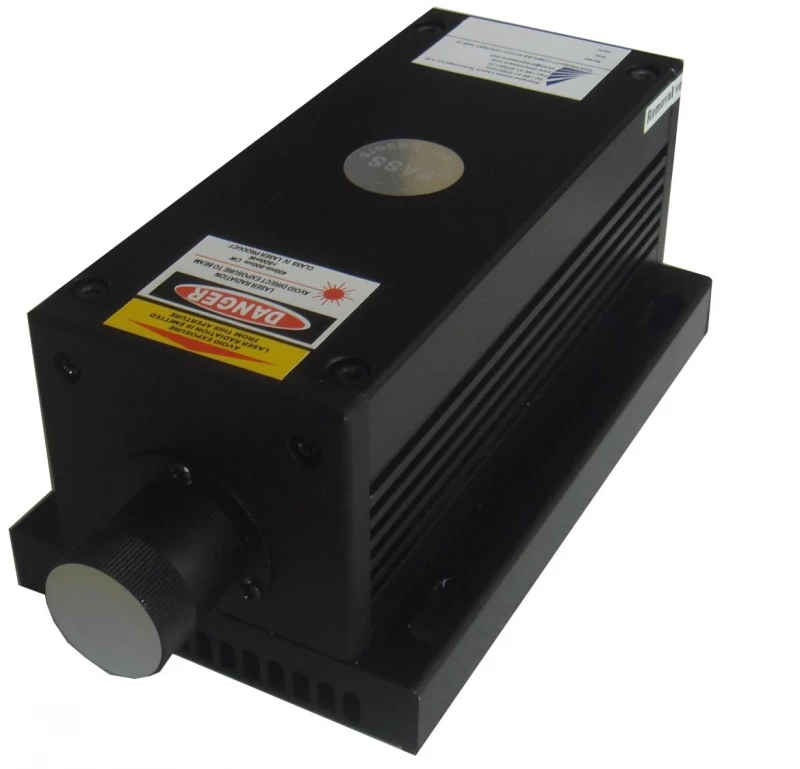

SDL-532-XXXT: 600-1500mW Green DPSS Laser with TEM00 Mode
Specifications
Wavelength: | 532 nm |
---|---|
Max Output Power: | 1500 mW |
Transverse Mode: | TEM00 |
Power Stability Over 2 Hours After Warm-up: | < 5 % |
Pointing Stability After Warm-up: | < 0.05 mrad |
Warm-up Time: | < 10 minutes |
M2 Factor: | < 2.0 |
Beam Divergence (1/e2, Full Angle): | < 2.0 mrad |
Beam Diameter At The Aperture: | ~ 3.0 mm |
Operating Temperature: | 10 - 35 °C |
Modulation: | TTL Modulation >5kHz |
Expect Life Time: | 10,000 hours |
Warranty Time: | 1 year |
Features
- 4 or 8 hours Longer operation period output power stability are available on request.
- Better (<3%,<1%) power stability are available on request.

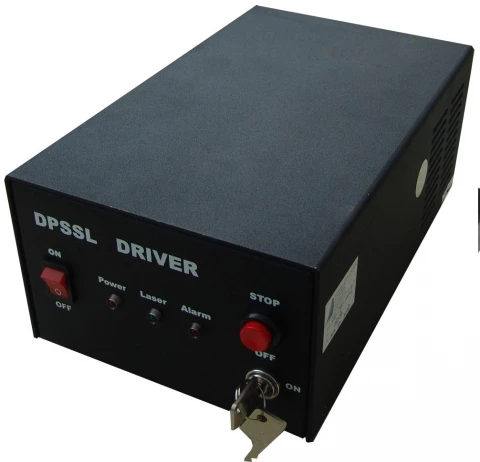

- Other version power supply are available on request: 1. Current display, power adjustable function version; 2. OEM DC input version.
- Analog Modulation >2KHz or higher as option.
- Up to 30Khz TTL modulation on request.
- Line output version are available on request.
- Fiber coupled version are available on request.
- Longer warranty on request.
- Other custom-made design is available, please contact us for details.
Applications
- Laser marking and engraving of various materials such as plastics, metals, and ceramics
- Laser holography and interferometry for research and engineering applications
- LIDAR and remote sensing for environmental research and surveying
- Laser show and entertainment industries
- Medical applications such as laser therapy and surgery
- Spectroscopy and fluorescence microscopy
- Industrial alignment and positioning in manufacturing processes
Frequently Asked Questions
What is the output power range of the SDL-532-XXXT green DPSS laser?
The SDL-532-XXXT green DPSS laser has an output power range of 600-1500mW.
What is the transverse mode of the SDL-532-XXXT laser?
The SDL-532-XXXT laser has a TEM00 transverse mode.
Can the SDL-532-XXXT laser be modulated?
Yes, the SDL-532-XXXT laser features TTL modulation and can be modulated up to 30KHz upon request.
Are there any customizable options available for the SDL-532-XXXT laser?
Yes, the SDL-532-XXXT laser offers customizable options such as power stability, analog modulation, line output versions, and fiber-coupled versions.
What is the warranty period for the SDL-532-XXXT laser?
The SDL-532-XXXT laser comes with a 1-year warranty.
