Description

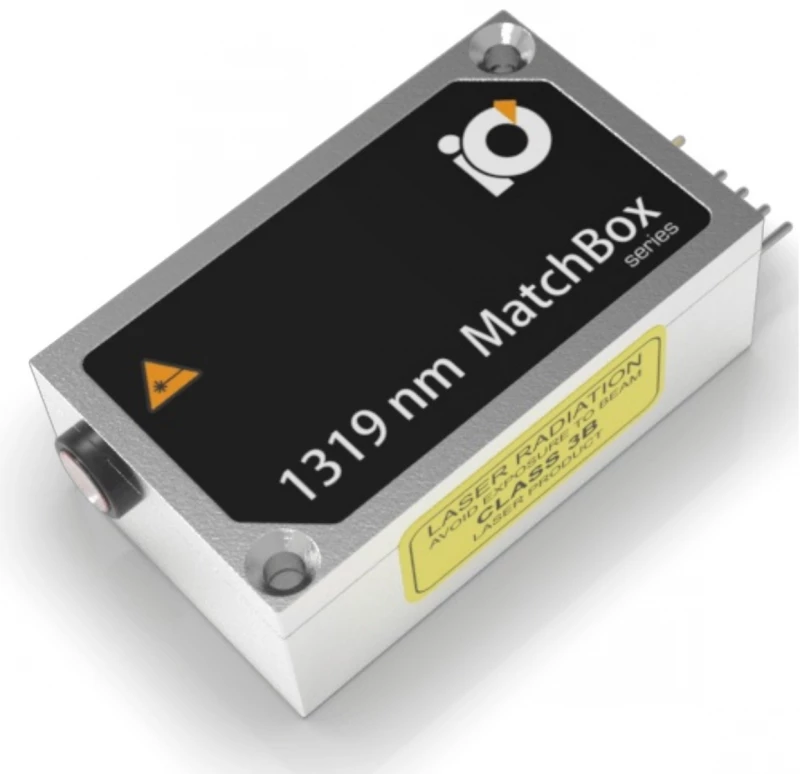

The 1319L-1XB Laser Module is a compact and versatile solid-state laser designed for various applications. With a wavelength of 1319nm and a power output of 200mW, this laser module offers excellent performance and reliability. It features a thermally stabilized optics in a hermetically sealed housing, ensuring maintenance-free operation.
The module operates on a 5VDC input voltage and comes with automatic power control. Multiple fiber-coupled options are available for flexible beam delivery. Whether you need a free-space or fiber-coupled output, the 1319L-1XB Laser Module is a cost-effective and high-performance solution.
1319L-11B-NI-NT-NF: Laser Module Single Mode (1319nm | 200mW)
Specifications
| Wavelength: | 1319 nm |
|---|---|
| Max Output Power: | 200 mW |
| Cooling Method: | Other (not specified) |
| Tunability: | Fixed Wavelength |
| Control Interface: | Other (not specified) |
| External Power Supply Requirement: | +5 V DC, 5 A |
| Spectral Line Width FWHM: | 0.7 % |
| Power Stability: | 0.2 % |
| Intensity Noise: | 3 % |
| Transversal Modes: | TEM00 |
| Horizontal Beam Divergence: | 2.3 mrad |
| Vertical Beam Divergence: | 2.4 mrad |
| M Effective: | 1.1 |
| Polarization Direction: | Horizontal |
| Polarization Contrast: | 1000 |
| Longitudinal Modes: | Multiple |
| Input Voltage: | 5 VDC |
| Dimensions: | 50 x 30 x 18 mm |
| Optimum Heatsink Temperature: | 20 ℃ |
| Warm Up Time: | 1 min |
| Temperature Stabilization: | Internal TEC |
| Overheat Protection: | Yes |
| Storage Temperature: | -10 to +50 °C |
| Net Weight: | 0.12 kg |
| Max. Power Consumption: | 10 W |
| Laser Safety Class: | 3B |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Wavelength: 1319nm
- Multiple Fiber Coupled Options
- Ultra-compact All-in-one Design
- Thermally stabilized optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- 5VDC Input Voltage
Applications
- Compact and versatile laser module
- High-performance and reliable operation
- Wide range of fiber-coupled options
- Easy integration into existing systems
- Low noise operation
- Cost-effective with smart power electronics
- Maintenance-free operation
- Excellent beam quality and accuracy
- Customizable to meet specific requirements
Frequently Asked Questions
What are some applications of the 1319L-11B-NI-NT-NF DPSS module?
What is the control interface type of the 1319L-11B-NI-NT-NF DPSS module?
What is the central wavelength of the 1319L-11B-NI-NT-NF DPSS module?
What is the warranty period for the 1319L-11B-NI-NT-NF DPSS module?
What is the output power of the 1319L-11B-NI-NT-NF DPSS module?
