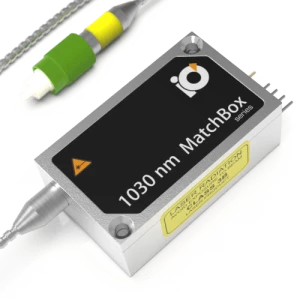

1030L-14B-NI-ST-NF: DPSS Module, 1030nm, 300mW, Multimode Fiber w/ SMA connector
Description
The 1030L-1XB is a 1030 nm DPSS laser module from RPMC. The Matchbox series includes single-mode and multimode lasers, offering excellent performance and reliability in an ultra-compact “all-in-one” driver integrated laser head. The 1030L-1XB comes standard with internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation.
The module contains a powerful Peltier cooler, microprocessor-based electronics, a USB control interface, and many useful accessories for ease of integration. In portable applications, this laser can be powered from conventional USB power banks.
The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing ensuring reliable and maintenance-free operation. All the Matchbox series modules include a 12-month warranty and are RoHS compliant. For fiber delivery, please check MM, SM, PM fiber output options. Higher output power is available on request.
These continuous wave laser modules have many configurations and provide elite performance in an ultra-compact package. They are available with either free-space or fiber-coupled output and options for break-out boxes, heatsinks, shutters, and power supplies. The key advantages for these modules include providing top-quality power electronics in the same housing while obtaining excellent output power and performance/price ratio.
These modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more. If you would like more information or want to request a more customizable laser, don’t hesitate to contact one of our product managers.
1030L-14B-NI-ST-NF: DPSS Module, 1030nm, 300mW, Multimode Fiber w/ SMA connector
Specifications |
|
|---|---|
| Wavelength: | 1030 nm |
| Max Output Power: | 300 mW |
| Cooling Method: | Passive cooling |
| Tunability: | Fixed Wavelength |
| Control Interface: | USB |
Features
- 1030nm Wavelength
- Multiple Fiber Coupled Options
- Ultra-compact All-in-one Design
- Thermally stabilized optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- +5VDC Input Voltage
- Warranty: 12 months
- RoHS compliance
Applications
- Laser Diffraction Particle Analysis
- Confocal Microscopy
- Food Sorting
- Flow Cytometry
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The wavelength of the 1030L-14B-NI-ST-NF DPSS module is 1030nm.
The output power of the 1030L-14B-NI-ST-NF DPSS module is 300mW.
The 1030L-14B-NI-ST-NF DPSS module has an SMA connector.
The warranty period for the 1030L-14B-NI-ST-NF DPSS module is 12 months.
Yes, the 1030L-14B-NI-ST-NF DPSS module can be powered from conventional USB power banks in portable applications.
