Description
The 532L-1XB is a compact and high-performance laser module offered by RPMC Lasers Inc. It operates at a wavelength of 532nm and features a single-mode design. The laser module is thermally stabilized and hermetically sealed, ensuring reliable and maintenance-free operation.
With its automatic power control and 5VDC input voltage, it offers convenient usage. The 532L-1XB is available in various configurations, including free space and fiber-coupled options, catering to different application needs.

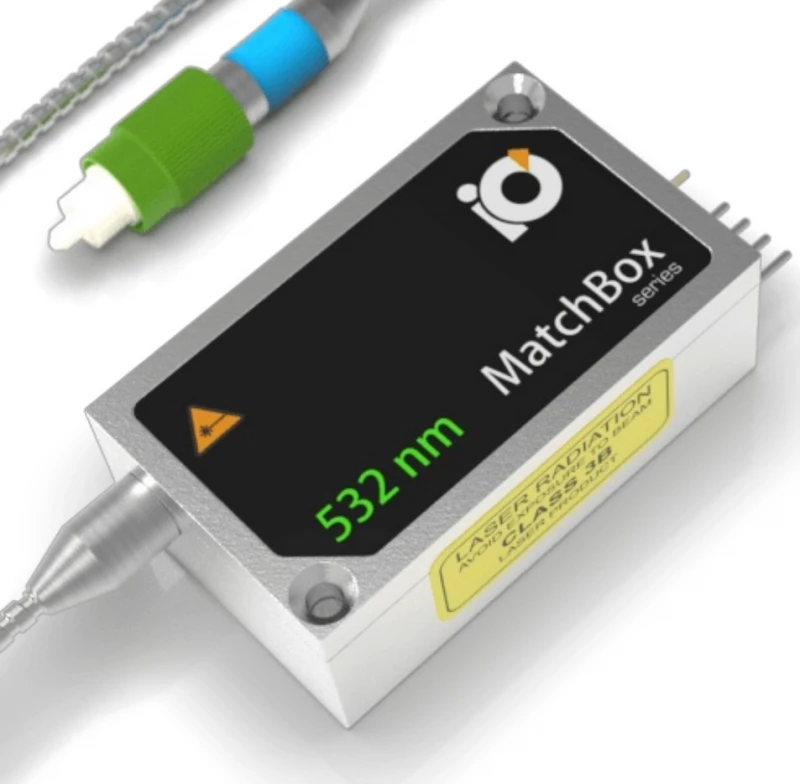

0532L-15B-NI-AT-NF Laser Module (Single Mode | 532nm | 100mW)
Specifications
| Wavelength: | 532 nm |
|---|---|
| Max Output Power: | 100 mW |
| Cooling Method: | Other (not specified) |
| Tunability: | Fixed Wavelength |
| Control Interface: | Other (not specified) |
| Input Voltage: | 5 VDC |
| Automatic Power Control: | Yes |
| Optics: | Thermally Stabilized |
| Housing: | Hermetically Sealed |
| Power Stability: | 2 % |
| Intensity Noise: | 3 % |
| Transversal Modes: | TEM00 |
| M Effective: | 1.05 |
| Polarization Direction: | Aligned within the slow axis of the PM fiber and the key position |
| Polarization Extinction Ratio: | 20 dB |
| Optimum Heatsink Temperature: | 20 °C |
| Warm Up Time: | 0.2 min |
| Temperature Stabilization: | Internal TEC |
| Storage Temperature: | -10 to +50 °C |
| Internal TEC: | Yes |
| Max. Power Consumption: | 5 W |
| External Power Supply Requirement: | +5 V DC, 5A |
| Laser Safety Class: | 3B |
| Net Weight: | 0.1 kg |
| Dimensions: | 50 x 30 x 18 mm |
Download Data Sheet
Features
- Wavelength: 532nm
- Multiple Fiber Coupled Options
- Ultra-compact All-in-one Design
- Thermally stabilized optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- 5VDC Input Voltage
Applications
- Laser Diode Drivers
- TEC Controllers
- Driver/Controller Combos
- Pockels Cell Drivers
- Heatsinks/Mounts
- Fibers
- Raman Probe
- Thin Disk Gain Media
- Thin Disk Pump Modules
- Mirror Mounts
Frequently Asked Questions
What is the wavelength of the 0532L-15B-NI-AT-NF DPSS Module?
The wavelength of the 0532L-15B-NI-AT-NF DPSS Module is 532nm.
What is the output power of the 0532L-15B-NI-AT-NF DPSS Module?
The output power of the 0532L-15B-NI-AT-NF DPSS Module is 100mW.
What is the polarization maintaining fiber w/ FC/APC connector in the 0532L-15B-NI-AT-NF DPSS Module?
The polarization maintaining fiber w/ FC/APC connector in the 0532L-15B-NI-AT-NF DPSS Module is a type of fiber optic cable that maintains the polarization of light waves traveling through it.
What applications is the 0532L-15B-NI-AT-NF DPSS Module suitable for?
The 0532L-15B-NI-AT-NF DPSS Module is suitable for applications like confocal fluorescence microscopy, DNA sequencing, and flow cytometry.
What is the warranty for the 0532L-15B-NI-AT-NF DPSS Module?
The 0532L-15B-NI-AT-NF DPSS Module comes with a 12-month warranty and is RoHS compliant.
