Description
The JenLas ® D2 is a doubled-frequency, diode-pumped thin-disc laser with high beam quality, operating at the wavelength of 532nm and providing up to 5W (CW) of output power. Efficiency and modulation capability of its CW-radiation distinguish this green 532nm laser. The compact OEM design of this green CW laser allows easy integration into end-user systems.
The JenLas D2.5 is an extension of the long-established and tried-and-tested D2.x series. JenLas® D2. Solid-State lasers are based on disk laser technology and have been on the market for many years. The entire JenLas® D2. Series is based on proven disk laser technology, using a thin Nd:YVO4 disk laser medium, which guarantees the maximum beam quality and stability for you.
These lasers are frequency-doubled and cooled using a Peltier element, which avoids the need for more expensive water cooling. The compact design of the JenLas D2.5 makes it very easy to integrate into your existing systems.
We can also offer you a range of accessories, such as fiber coupling and control electronics, many of which are designed for use in medical applications. An easy to integrate OEM module option, complete with control electronics, power supply, heat sink, and application-specific interfaces, is also available for the JenLas® D2.

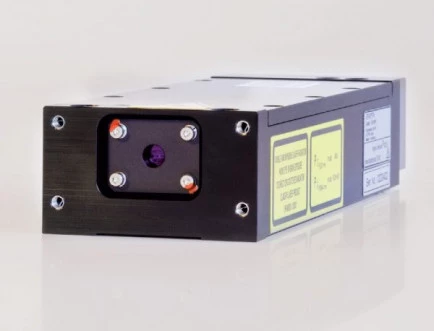

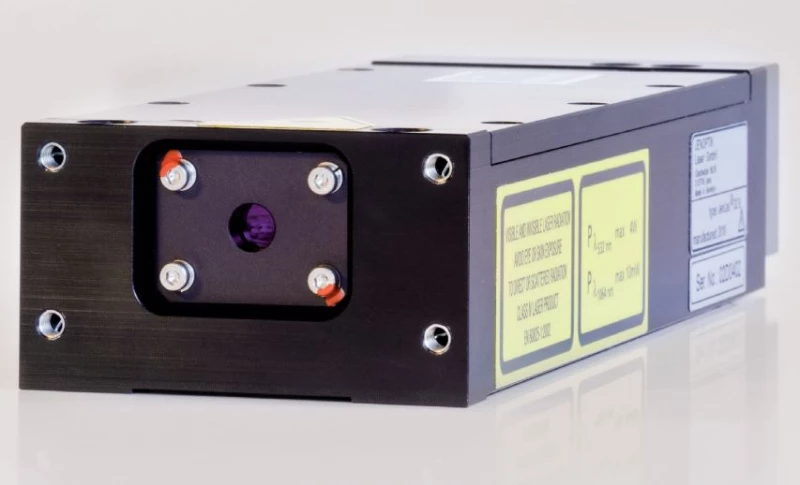

JenLas D2.5: 532nm CW Green Laser
Specifications
| Wavelength: | 532 nm |
|---|---|
| Max Output Power: | 5000 mW |
| Cooling Method: | Air-Cooled |
| Laser: | Thin-disk laser, diode-pumped |
| Laser Class: | 4 (according to EN 60825-1:2001) |
| Wavelength: | 532 nm |
| Ambient Temperature: | 5 °C ... 40 °C |
| Output Power: | 3/5 W |
| M2 (typical): | ~ 5 |
| Pulse Duration: | ~ 1 ms to cw |
| Beam Diameter: | < 2 mm |
| Electrical Input Data: | 2 V, typical 22 A |
| Input Power: | ≤ 60 VA |
| Dimensions (W X H X L): | 70 mm x 40 mm x 200 mm |
| Weight: | 1.8 kg |
Download Data Sheet
Features
- OEM design for easy integration
- High beam quality
- Small dimensions
- Thin-disk laser
- Diode pumping
- Frequency doubling
- CW operation
- Peltier cooling (TEC), system contains no water
Applications
- Medical engineering
- Show applications
- Display engineering
- Pumping of solid-state lasers
- Light exposure of plastic materials
- Substitution of Argon lasers
Frequently Asked Questions
What is the wavelength of the JenLas D2 5W green DPSS laser?
What is the maximum output power of the JenLas D2 5W green DPSS laser?
What distinguishes the JenLas D2 laser from other green lasers?
What applications is the JenLas D2 green DPSS laser suitable for?
What are the dimensions and weight of the JenLas D2 5W DPSS laser?
