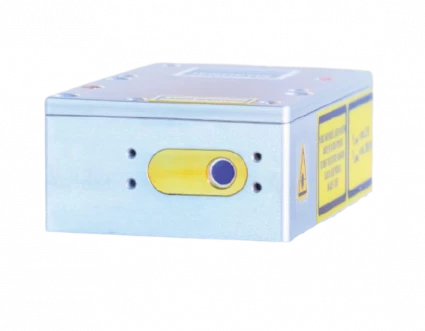

JenLas D2.mini: 2/3/5/8W: 532nm CW Green Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The JenLas D2.mini 2W is an extension of the long-established and tried-and-tested D2.x series. JenLas® D2. Solid-State lasers are based on disk laser technology and have been on the market for many years.
The highly efficient JenLas® D2.mini diode-pumped solid-state laser is available at 532nm with an output power of 2, 3, 5, or 8 watts.
The entire JenLas® D2. Series is based on proven disk laser technology, using a thin Nd:YVO4 disk laser medium, which guarantees the maximum beam quality and stability for you. These lasers are frequency-doubled and cooled using a Peltier element, which avoids the need for more expensive water cooling.
The compact design of the JenLas D2.mini 2W makes it very easy to integrate into your existing systems. We can also offer you a range of accessories, such as fiber coupling and control electronics, many of which are designed for use in medical applications. An easy to integrate OEM module option, complete with control electronics, power supply, heat sink, and application-specific interfaces, is also available for the JenLas® D2.mini.
JenLas D2.mini: 2/3/5/8W: 532nm CW Green Laser
Specifications |
|
|---|---|
| Wavelength: | 532 nm |
| Max Output Power: | 5000 mW |
| Cooling Method: | Peltier cooling |
| Tunability: | Fixed Wavelength |
| Control Interface: | Other (not specified) |
| Output Power Options: | 2W, 3W, 5W, 8W |
Features
- Minimal dimensions
- Low heat dissipation
- OEM design
- Accessories available
- Ideal for small devices
- Low cooling requirements
- Designed for integration
- Complexity reduction
Applications
- Ophthalmology
- Dermatology
- Show & Entertainment
- Spectroscopy
- Pumping of Ti:Sapphire Lasers
- Illumination
Frequently Asked Questions
The JenLas D2.mini diode-pumped solid-state laser is available at 532nm with an output power of 2, 3, 5, or 8 watts.
The beam quality of the JenLas D2.mini laser is M² < 5 (typical ~ 4) for 2-3W models and M² < 6 (typical ~ 5) for 5-8W models.
The dimensions of the JenLas D2.mini laser are 62 x 24 x 105.7 mm for the 2W model and 67 x 34 x 105.7 mm for the 3-8W models.
The JenLas D2.mini laser is suitable for various applications such as ophthalmology, dermatology, show and entertainment, spectroscopy, pumping of Ti:Sapphire lasers, and illumination.
No, the JenLas D2.mini laser does not require water cooling as it is cooled using a Peltier element.
