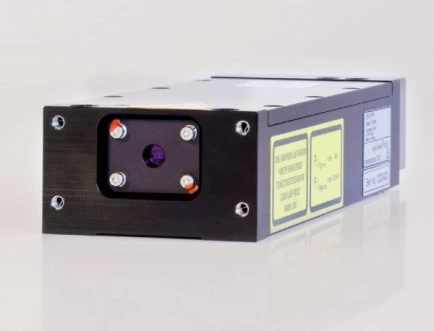

Thumbnail of JenLas D2: 532nm CW Green Laser photo 1

Description

The JenLas ® D2 is a doubled-frequency, diode-pumped thin-disc laser with high beam quality, operating at the wavelength of 532nm and providing up to 3W (CW) of output power. Efficiency and modulation capability of its CW-radiation distinguish this green 532nm laser. The compact OEM design of this green CW laser allows easy integration into end-user systems.

The JenLas D2.3 is an extension of the long-established and tried-and-tested D2.x series. JenLas® D2. Solid-State lasers are based on disk laser technology and have been on the market for many years. The entire JenLas® D2. Series is based on proven disk laser technology, using a thin Nd:YVO4 disk laser medium, which guarantees the maximum beam quality and stability for you.

These lasers are frequency-doubled and cooled using a Peltier element, which avoids the need for more expensive water cooling. The compact design of the JenLas D2.3 makes it very easy to integrate into your existing systems.

We can also offer you a range of accessories, such as fiber coupling and control electronics, many of which are designed for use in medical applications. An easy to integrate OEM module option, complete with control electronics, power supply, heat sink, and application-specific interfaces, is also available for the JenLas® D2.mini.

JenLas D2: 532nm CW Green Laser

Visit the RPMC Lasers, Inc. Store

Specifications

Wavelength: 532 nm
Max Output Power: 3000 mW
Cooling Method: Peltier cooling
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Laser: Thin-disk laser, diode-pumped
Laser Class: 4
Wavelength: 532 nm
Ambient Temperature: 5 °C ... 40 °C
M2 (typical): ~ 5
Pulse Duration: ~ 1 ms to cw
Beam Diameter: < 2 mm
Electrical Input Data: 2 V, typical 22 A
Input Power: ≤ 60 VA
Dimensions (W X H X L): 70 mm x 40 mm x 200 mm
Weight: 1.8 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • OEM design for easy integration
  • High beam quality
  • Small dimensions
  • Thin-disk laser
  • Diode pumping
  • Frequency doubling
  • CW operation
  • Peltier cooling (TEC), system contains no water

Applications

  • Medical engineering
  • Show applications
  • Display engineering
  • Pumping of solid-state lasers
  • Light exposure of plastic materials
  • Substitution of Argon lasers

Frequently Asked Questions

What is the wavelength of the JenLas D2.3 CW DPSS laser?
The JenLas D2.3 laser operates at a wavelength of 532nm.
What is the output power of the JenLas D2.3 DPSS laser?
The JenLas D2.3 laser provides up to 3W (CW) of output power.
What is the cooling system used in the JenLas D2.3 green DPSS laser?
The JenLas D2.3 laser uses Peltier cooling (TEC), which avoids the need for more expensive water cooling.
What are the applications of the JenLas D2.3 green CW DPSS laser?
The JenLas D2.3 laser is suitable for medical engineering, show applications, display engineering, pumping of solid-state lasers, light exposure of plastic materials, and substitution of Argon lasers.
What are the dimensions of the JenLas D2.3 green DPSS laser?
The JenLas D2.3 laser has small dimensions, with a size of 70mm x 40mm x 200mm and a weight of 1.8kg.

Got more questions? Use the inquiry form to ask the supplier directly.
