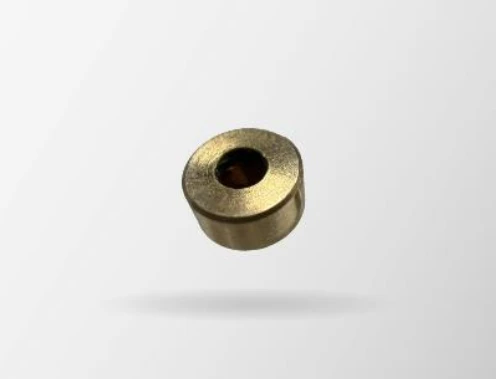

Metalens VCSEL 850nm 65mW AMG5300004-A-S1

Name: Metalens VCSEL 850nm 65mW AMG5300004-A-S1
Brand: LECC Technology Co., Ltd.

Description

Metalens VCSEL 850nm 65mW AMG5300004-A-S1: Revolutionizing Optical Design

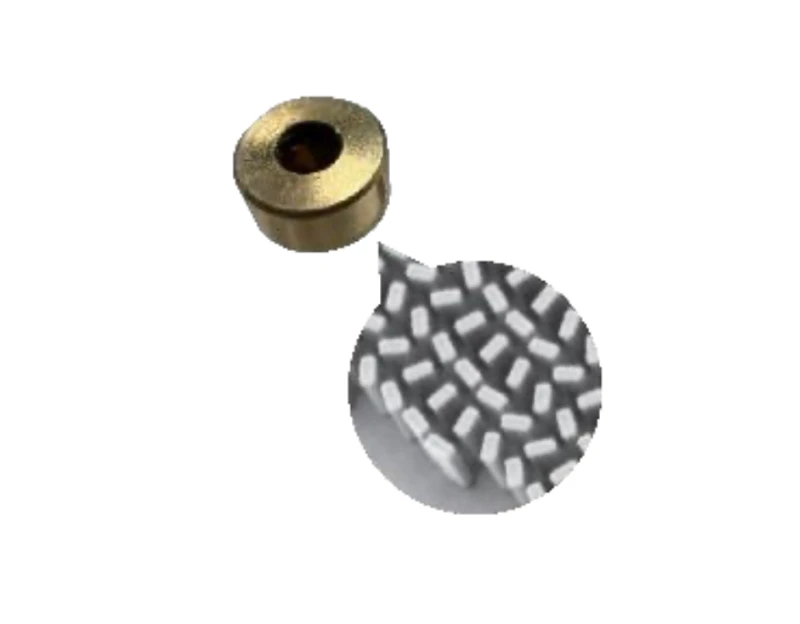

The Metalens VCSEL AMG5300004-A-S1 is a groundbreaking innovation in optical technology, designed to transform the way optical systems are constructed. By integrating the functions of multiple optical components into a single, thin lens, this product eliminates the need for bulky traditional lenses. This not only significantly reduces the size and weight of optical devices but also streamlines the assembly process, leading to substantial savings in production costs.

The Metalens VCSEL laser with connection terminals is an ideal solution for industries seeking to enhance efficiency without compromising on performance. Crafted with a high temperature coefficient, the Metalens ensures excellent uniformity and sharp edges, making it suitable for a wide range of applications. Its ability to support reflow soldering during production ensures minimal deviation and high product consistency. This is further enhanced by its semiconductor manufacturing advantage, which results in an excellent production yield rate.

The Metalens VCSEL is engineered to withstand various environmental conditions, offering reliability and durability in diverse settings. Incorporating the Metalens into your optical systems means embracing a future of compact, efficient, and high-performance optical solutions. Its innovative design and robust construction make it a valuable asset for any application requiring precision and reliability.

Whether used in advanced imaging systems or cutting-edge display technologies, the Metalens VCSEL AMG5300004-A-S1 stands as a testament to the future of optical engineering.

Specifications

Wavelength:	850 nm
Optical Power (CW):	0.065 W
Operating Current:	84 mA
Operating Voltage:	2.0 V
Operating Temp. Range:	-10 to 60 °C
Storage Temp. Range:	-30 to 70 °C

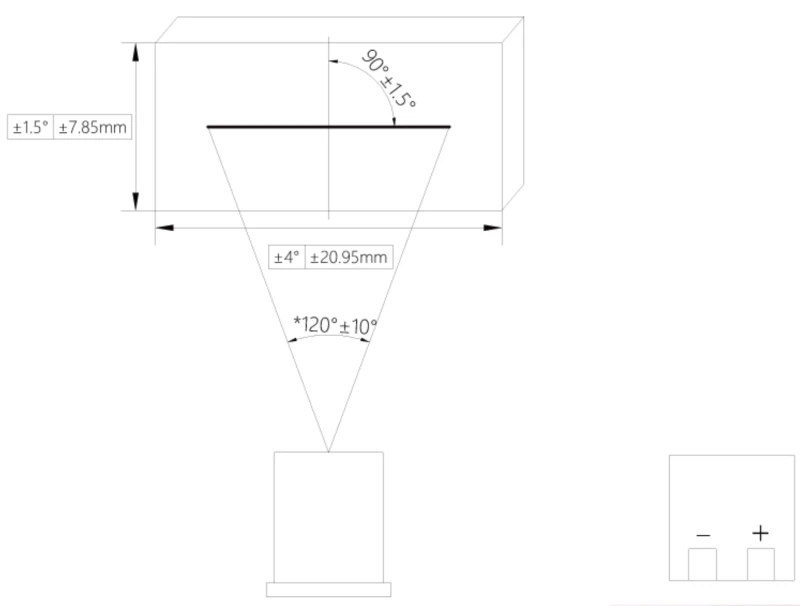

Beam @ 300 Mm Spot Size:	5 mm

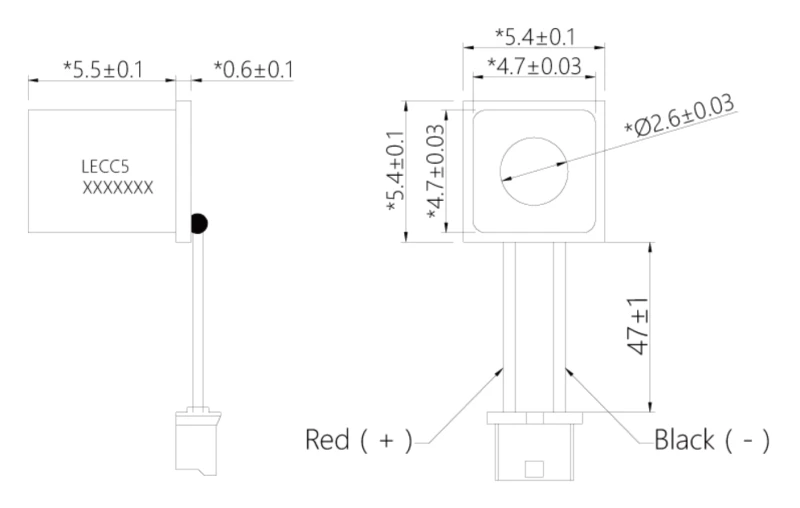

Connection Terminals:	Yes

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Compact and Lightweight: The Metalens VCSEL design integrates multiple optical components into a single thin lens, significantly reducing size and weight compared to traditional optical lenses.
High Uniformity and Sharp Edges: Delivers excellent uniformity of light spot and sharper edges, enhancing performance across various applications.
High Temperature Resistance: Features a high coefficient of temperature resistance, ensuring reliable performance in diverse environments.
Reflow Soldering Support: Capable of supporting reflow soldering in production, achieving minimal deviation and high product consistency.
Excellent Production Yield Rate: Benefits from semiconductor manufacturing advantages, resulting in a high production yield rate.

Cautions

Absolute Maximum Ratings: Ensure not to exceed the specified maximum ratings to prevent laser operation issues.
ESD and Surge Protection: Implement protective measures such as grounding devices and circuits, wearing anti-static clothing, and using anti-static containers.
Soldering Precautions: Maintain die-pad temperature below 160°C and use a heat sink during soldering. Iron temperature should be less than 180°C within 3 seconds for leads.
Eye Safety: Avoid direct exposure to laser beams. Use safety goggles when observing laser beams.

Applications

Camera and Display: Enhance image quality and reduce lens size in cameras and displays.
Optical Lens: Replace traditional bulky lenses with a compact and lightweight alternative.
AR, VR, MR: Improve the performance and reduce the weight of augmented, virtual, and mixed reality devices.
Medical Instrument and Equipment: Utilize in medical devices for precise imaging and diagnostics.

Request Quote

To: LECC Technology Co., Ltd.
Re: Metalens VCSEL 850nm 65mW AMG5300004-A-S1

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Taiwan
Sold by:: LECC Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Metalens VCSEL AMG5300004-A-S1?

The Metalens VCSEL AMG5300004-A-S1 is a compact and lightweight lens that integrates the functions of multiple optical components into a single thin lens, designed to replace traditional bulky optical lenses.

What are the key features of the Metalens VCSEL?

The key features of the Metalens VCSEL include its compact and lightweight design, high uniformity of light spot with sharper edges, and high coefficient of temperature resistance.

What applications is the Metalens VCSEL suitable for?

The Metalens VCSEL is suitable for applications in cameras and displays, optical lenses, augmented reality (AR), virtual reality (VR), mixed reality (MR), and medical instruments and equipment.

What is the maximum optical power of the Metalens VCSEL module?

The maximum optical power of the Metalens VCSEL module is 65 mW.

What are the operating temperature and storage temperature ranges for the Metalens VCSEL module?

The operating temperature range for the Metalens VCSEL module is -10°C to 60°C, and the storage temperature range is -30°C to 70°C.

What precautions should be taken to prevent damage to the Metalens laser unit?

Precautions include grounding the device and circuits, wearing anti-static clothing and grounded wrist straps, using anti-static containers for transport and storage, and designing circuits to avoid excessive current spikes.

Is the Metalens laser safe for the eyes?

When the laser diode is in operation, looking directly into the laser beam, even through a lens or optical fibers, can cause severe eye damage. It is recommended to use safety goggles when observing laser beams.
