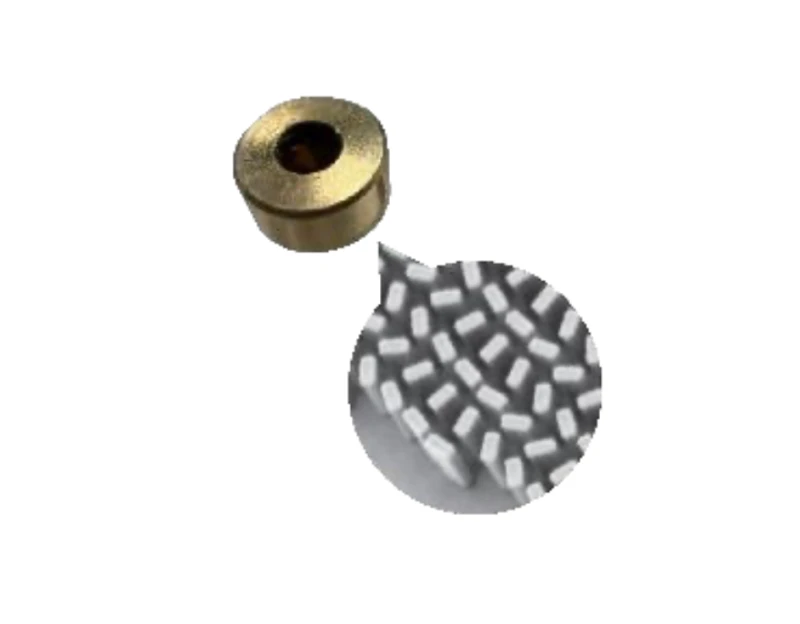

Thumbnail of Metalens VCSEL 850nm 65mW AMG5300003-A-S2 photo 1

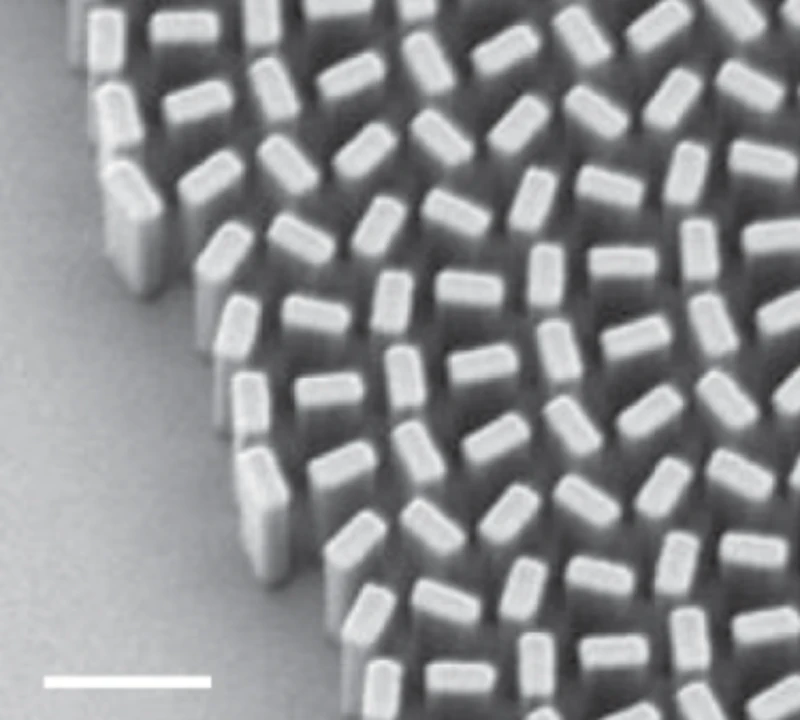

Thumbnail of Metalens VCSEL 850nm 65mW AMG5300003-A-S2 photo 2

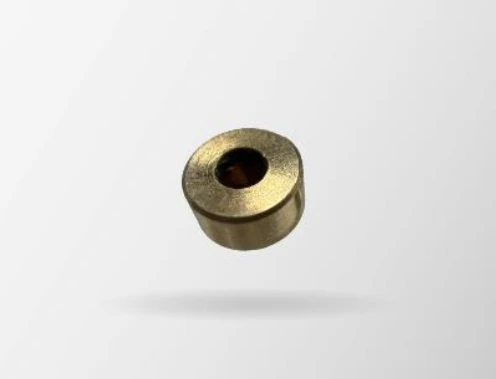

Thumbnail of Metalens VCSEL 850nm 65mW AMG5300003-A-S2 photo 3
Thumbnail of Metalens VCSEL 850nm 65mW AMG5300003-A-S2 photo 4

Description

Metalens VCSEL 850nm 65mW AMG5300003-A-S2

The Metalens AMG5300003-A-S2 represents a breakthrough in optical technology, integrating the functions of multiple optical components into a single, thin lens. This innovative design replaces the bulky and cumbersome traditional optical lenses, significantly reducing both size and weight. By simplifying the assembly process, the Metalens not only enhances efficiency but also contributes to substantial production cost savings.

Crafted with a high temperature coefficient, the Metalens VCSEL ensures excellent uniformity and sharp edges, making it suitable for a wide range of applications. Its ability to support reflow soldering in production processes ensures minimal deviation and high product consistency. This results in an excellent production yield rate, thanks to the advantages of semiconductor manufacturing techniques.

The Metalens VCSEL AMG5300003-A-S2 is designed to meet the demands of modern optical applications, offering a compact and lightweight solution with high uniformity of light spots and sharper edges. Its high coefficient of temperature resistance further enhances its reliability and performance, making it an ideal choice for industries seeking advanced optical solutions.

Metalens VCSEL 850nm 65mW AMG5300003-A-S2

Visit the LECC Technology Co., Ltd. Store

Specifications

Wavelength: 850 nm
Optical Power (CW): 0.065 W
Operating Current: 84 mA
Operating Voltage: 2.0 V
Operating Temp. Range: -10 to 60 °C
Storage Temp. Range: -30 to 70 °C
Beam @ 300 Mm Spot Size: 5 mm
Connection Terminals: No

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact and Lightweight: The Metalens design integrates multiple optical functions into a single thin lens, reducing size and weight compared to traditional optical lenses.
  • High Uniformity and Sharp Edges: Provides excellent uniformity of light spot and sharper edges, enhancing performance in various applications.
  • High Temperature Resistance: Features a high coefficient of temperature resistance, ensuring reliability under varying conditions.
  • Reflow Soldering Support: Capable of supporting reflow soldering in production, achieving minimal deviation and high product consistency.
  • Excellent Production Yield: Benefits from semiconductor manufacturing advantages, resulting in a high production yield rate.

Cautions

  • Absolute Maximum Ratings: Do not exceed the specified maximum ratings to prevent damage.
  • ESD and Surge Protection: Implement protective measures such as grounding devices and circuits, wearing anti-static clothing, and using anti-static containers.
  • Soldering: Ensure mechanical stress and temperature are controlled during soldering. Recommended iron temperature is less than 180°C within 3 seconds for leads only.
  • Eye Safety: Use safety goggles when observing laser beams to prevent severe eye damage.

Applications

  • Camera and Display: Enhance image quality and display performance with compact and efficient metalens technology.
  • AR, VR, MR: Improve augmented, virtual, and mixed reality experiences with high uniformity and sharp edge lenses.
  • Medical Instrument and Equipment: Utilize metalens laser module for precise and reliable optical performance in medical applications.

Frequently Asked Questions

What is the Metalens VCSEL AMG5300003-A-S2?
The Metalens VCSEL AMG5300003-A-S2 is a compact and lightweight modules which integrates a VCSEL laser and a meta lens (metalens) with the functions of multiple optical components in a single thin lens, reducing size and weight while simplifying assembly processes.
What are the key features of the Metalens unit?
The key features of the Metalens include high uniformity of light spot with sharper edges, a high coefficient of temperature resistance, and the ability to support reflow soldering for minimal deviation and high product consistency.
What applications are suitable for the Metalens VCSEL unit?
The Metalens VCSEL module is suitable for applications in cameras and displays, optical lenses, augmented reality (AR), virtual reality (VR), mixed reality (MR), and medical instruments and equipment.
What are the operating specifications of the Metalens VCSEL unit?
The Metalens VCSEL operates at an optical power of up to 65 mW, with an operating current of 84 mA, and an operating voltage between 1.9 and 2.2 V. It has a peak emission wavelength of 850 nm and operates within a temperature range of -10 to 60 °C.
What precautions should be taken when handling the Metalens VCSEL?
Precautions include preventing surge current and electrostatic discharge (ESD), grounding the device and circuits, wearing anti-static clothing and grounded wrist straps, and using anti-static containers for transport and storage.
What are the soldering guidelines for the Metalens VCSEL?
When soldering the Metalens, ensure the temperature of the die-pad portion is less than 160°C. Soldering should be done with an iron temperature of less than 180°C within 3 seconds for leads only, and it is recommended to use a heat sink to radiate heat.
What safety measures should be taken regarding eye safety?
To ensure eye safety, avoid looking directly into the laser beam with the naked eye or through lenses, microscopes, or optical fibers, as it may cause severe damage. Using safety goggles is recommended when observing laser beams.

Got more questions? Use the inquiry form to ask the supplier directly.
