NECSEL BLUE NovaLum VHP Blue 465
Description

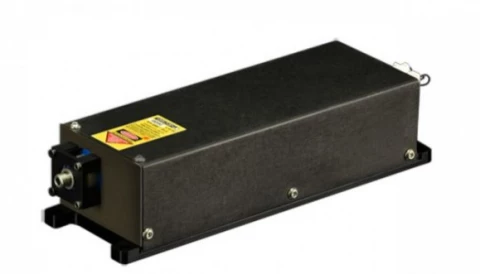

The NovaLum VHP Blue Laser Module produces up to an impressive 19.2W of power with standard lifetimes of 20,000 hours in a compact easy to integrate fiber coupled module. A 400μm core fiber delivery is standard.
NECSEL BLUE NovaLum VHP Blue 465
Specifications |
|
|---|---|
| Laser Type: | Modulated |
| Fiber Type: | Single Mode |
| Wavelength: | 465 nm |
| Output Power: | 19200 mW |
| Fiber Core Diamater: | 400 um |
| Fiber Cladding Diameter: | N/A um |
Features
- 19.2 W of Power
- 20,000 hours of Lifetime
- 400um Fiber Coupled
- Optional Developer’s Kit
Applications
- Digital Projection
- Remote Source Lighting
- Hazardous Lighting
- Theme Park Attractions
- Forensics
- Medical
- Therapeutics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Some applications include digital projection, remote source lighting, hazardous lighting, theme park attractions, forensics, and medical therapeutics.
The recommended drive conditions are a laser diode voltage of 36.0-63.0V per string and an operating current (CW) of 1.5-1.7A.
The standard fiber coupling option is a 400μm core fiber delivery.
The module produces up to 19.2W of power.
The standard lifetime is 20,000 hours.
