Description

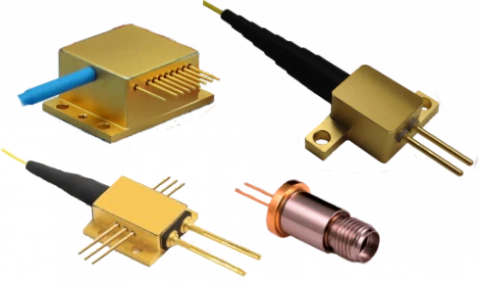

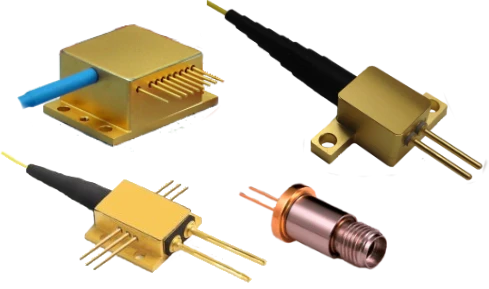

The LDX Series of made-in-the-US, high-power, multimode laser diodes provides wavelengths from 400nm – 1900nm, a wide range of output powers and package types, as well as completely customized solutions. We have been offering these high-quality laser diodes for over 25 years. The performance, reliability, and lifetimes are time-tested, and if, for some reason, there is an issue, we will make it right.

Benefits:

  • Low threshold current and high slope efficiency: resulting in a low operating current that enhances reliability
  • High precision placement with a flux-free, void-free, uniform solder thickness
  • Customizable: From wafers & packaging to options & qualification
  • Made-in-the-US: No tariffs or international shipping issues
  • Dependable Delivery: Just-in-time deliveries – Buffer stock
  • No Discontinued Products: Guaranteed supply for the life of your program
  • Advanced hard or soft laser soldering process – Superior packaging
  • The broadest selection of diode wavelengths and packaging configurations on the market

LDX-2410-630: 630nm 320mW Fiber Coupled Multimode Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 630 nm
Output Power: 320 mW
Fiber Core Diamater: 105 um
Fiber Cladding Diameter: 125 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 630nm
  • Output Power:  400mW free space, 320mW from the fiber
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs available.

Applications

  • Biomedical
  • Inspection
  • Military
  • Spectroscopy
  • Research

Frequently Asked Questions

What is the output power of the LDX-2410-630 laser diode?
The LDX-2410-630 laser diode has an output power of 400mW free space and 320mW from the fiber.
What is the wavelength range of the LDX Series laser diodes?
The LDX Series laser diodes provide wavelengths from 400nm – 1900nm.
Is the LDX Series laser diodes customizable?
Yes, the LDX Series laser diodes are customizable from wafers & packaging to options & qualification.
What is the advantage of the LDX Series laser diodes being made-in-the-US?
The advantage of the LDX Series laser diodes being made-in-the-US is that there are no tariffs or international shipping issues.
Does LDX Optronics Inc. guarantee the supply of their laser diodes?
Yes, LDX Optronics Inc. guarantees the supply for the life of your program with no discontinued products.

Got more questions? Use the inquiry form to ask the supplier directly.
