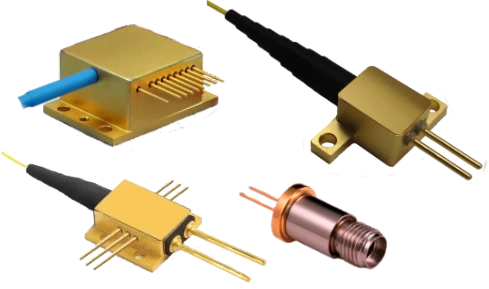

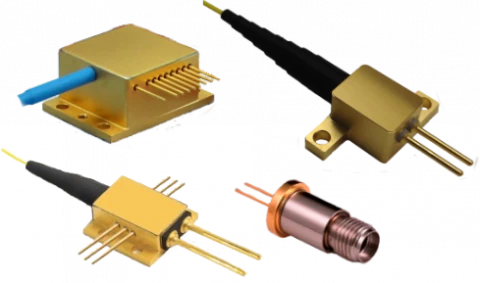

Thumbnail of LDX-2305-645: 645nm 250mW Fiber Coupled Multimode Laser Diode photo 1

Description

The LDX Series of made-in-the-US, high-power, multimode laser diodes provides wavelengths from 400nm – 1900nm, a wide range of output powers and package types, as well as completely customized solutions. We have been offering these high-quality laser diodes for over 25 years. The performance, reliability, and lifetimes are time-tested, and if, for some reason, there is an issue, we will make it right.

Benefits:

  • Low threshold current and high slope efficiency: resulting in a low operating current that enhances reliability
  • High precision placement with a flux-free, void-free, uniform solder thickness
  • Customizable: From wafers & packaging to options & qualification
  • Made-in-the-US: No tariffs or international shipping issues
  • Dependable Delivery: Just-in-time deliveries – Buffer stock
  • No Discontinued Products: Guaranteed supply for the life of your program
  • Advanced hard or soft laser soldering process – Superior packaging
  • The broadest selection of diode wavelengths and packaging configurations on the market

LDX-2305-645: 645nm 250mW Fiber Coupled Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 645 nm
Output Power: 250 mW
Fiber Core Diamater: 105 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 645nm
  • Output Power: Up to 400mW free space, Up to 320mW from the fiber
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs are available.

Applications

  • Medical Applications: These laser diodes are ideal for use in medical devices and procedures, including photodynamic therapy and laser surgery.
  • Industrial Applications: Suitable for material processing, such as cutting, welding, and engraving, due to their high precision and power.
  • Scientific Research: Perfect for laboratory experiments and research in fields like spectroscopy and fluorescence.
  • Telecommunications: Used in fiber optic communications for data transmission over long distances.
  • Display Technology: Can be used in projectors and display systems for vibrant color production.
  • Security and Defense: Applicable in range-finding, target designation, and other defense-related technologies.
  • Consumer Electronics: Utilized in devices such as Blu-ray players and optical drives.
  • Environmental Monitoring: Used in sensors and monitoring equipment for environmental data collection.

Frequently Asked Questions

What are the package options available for the LDX Series laser diodes?
The standard free space package options include 9mm FC package, 8-pin HHL package, HHL FC Package, 2-pin FC package, and 4-pin.
What is the output power of the LDX-2305-645 laser diode?
The output power of the LDX-2305-645 laser diode is up to 400mW free space, up to 320mW from the fiber.
Does RPMC Lasers guarantee a supply for the life of a customer's program?
Yes, RPMC Lasers guarantees no discontinued products and a supply for the life of a customer's program.
Is the LDX Series customizable?
Yes, the LDX Series is customizable from wafers & packaging to options & qualification.
What is the wavelength range of the LDX Series laser diodes?
The LDX Series provides wavelengths from 400nm – 1900nm.

Got more questions? Use the inquiry form to ask the supplier directly.
