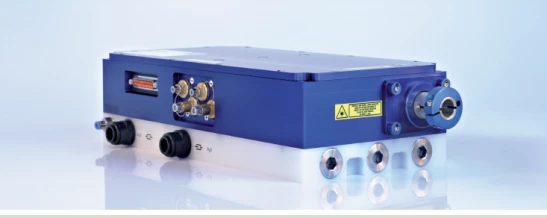

Thumbnail of JOLD-250-CAXF-6P2 976: Fiber Coupled Laser Diode photo 1

Description

The JOLD-250-CAXF-6P2 is a fiber-coupled, multimode laser diode array, with options for 808nm, 915nm, 940nm, and 976nm wavelength, and CW output power up to 25oW, delivered via 600µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-250-CAXF-6P2 is conductively cooled and is designed for medical applications.

JOLD-250-CAXF-6P2 976: Fiber Coupled Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Multi-Mode
Wavelength: 976 nm
Output Power: 250000 mW
Fiber Core Diamater: 600 um
Maximum Optical Output Power: 250 W
Center Wavelength At 25 °C: 807 nm, 915 nm, 938 nm, 976 nm
Center Wavelength Variation At 25 °C: 5 nm, 5 nm, 5 nm, 3 nm
Typical Spectral Bandwidth (FWHM): 5 nm, 6 nm, 6 nm, 6 nm
Maximum Spectral Bandwidth (FWHM): 6 nm, 7 nm, 7 nm, 7 nm
Typical Operation Current: 40 A, 42 A, 42 A, 44 A
Maximum Operation Current: 45 A, 47 A, 47 A, 47 A
Typical Threshold Current: 7 A, 6 A, 6 A, 6 A
Maximum Threshold Current: 10 A, 9 A, 9 A, 9 A
Typical Slope: 7.6 W/A, 7.0 W/A, 7.0 W/A, 6.6 W/A
Minimum Slope: 6.5 W/A, 6.0 W/A, 6.0 W/A, 6.0 W/A
Maximum Operating Voltage: 26 V (2x13 V)
Fiber Core Diameter: 600 µm
Numerical Aperture: 0.22
Pilot Laser Power: 0.5 ... 3 mW
Pilot Laser Wavelength: 650 nm ± 15 nm
Pilot Laser Voltage: 3 ... 5 V
Pilot Laser Current: 40 ± 15 mA
Expected Lifetime: > 10,000 h
Cooling Flow Rate: 4.6 l/min ± 0.4 l/min
Water Temperature: 15 ... 35 °C
Water Pressure: 400 kPa maximum inlet and outlet pressure, 150 ... 250 kPa pressure drop
Water Quality: Deionized 2 ... 6 µS/cm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 808, 915, 940, and 976 nm
  • High optical output power up to 250 W cw
  • Fiber core diameter: 600 μm ( NA 0.22 )
  • Integrated pilot laser and power monitor
  • Internal fiber detector ( interlock )
  • Conductive cooling
  • Designed for medical applications

Applications

  • Pumping of solid-state lasers and fiber lasers
  • Material processing

Frequently Asked Questions

What are the applications of the JOLD-250-CAXF-6P2 laser diode array?
The JOLD-250-CAXF-6P2 laser diode array can be used for pumping of solid-state lasers and fiber lasers, as well as material processing.
What is the cooling system used for the JOLD-250-CAXF-6P2 laser diode array?
The JOLD-250-CAXF-6P2 laser diode array is conductively cooled and uses deionized water as the cooling medium.
What is the expected lifetime of the JOLD-250-CAXF-6P2 laser diode array?
The expected lifetime of the JOLD-250-CAXF-6P2 laser diode array is greater than 10,000 h (constant current).
What is the fiber core diameter of the JOLD-250-CAXF-6P2 laser diode array?
The fiber core diameter of the JOLD-250-CAXF-6P2 laser diode array is 600 µm (NA 0.22).
What is the maximum output power of the JOLD-250-CAXF-6P2 laser diode array?
The maximum output power of the JOLD-250-CAXF-6P2 laser diode array is 250 W cw.
