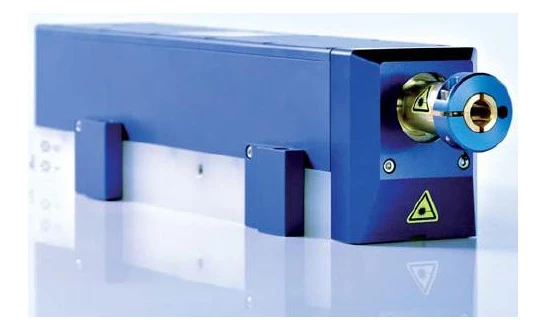

JOLD-210-CAXF-6A 808: Fiber Coupled Laser Diode

Description

The JOLD-210-CAXF-6A is a fiber-coupled, multimode laser diode array, with options for 808nm, 915nm, 940nm, and 976nm wavelength, and CW output power up to 21oW, delivered via 600µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-210-CAXF-6A is conductively cooled and is designed for medical applications.

Specifications

Laser Type:	Continuous Wave (CW)
Fiber Type:	Multi-Mode
Wavelength:	808 nm
Output Power:	210000 mW
Fiber Core Diamater:	600 um
Fiber Cladding Diameter:	Not Specified

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength: 808, 915, 940, and 976 nm
High optical output power up to 210 W cw
Fiber core diameter: 600 μm (NA 0.22)
Integrated pilot laser and power monitor
Internal fiber detector (interlock )
Conductive cooling
Designed for medical applications

Applications

Pumping of solid-state lasers and fiber lasers
Material processing

Request Quote

To: RPMC Lasers, Inc.
Re: JOLD-210-CAXF-6A 808: Fiber Coupled Laser Diode

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What features does the JOLD-210-CAXF-6A have?

The JOLD-210-CAXF-6A is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). It is conductively cooled and has a fiber core diameter of 600 µm (NA 0.22).

What is the JOLD-210-CAXF-6A laser diode array used for?

The JOLD-210-CAXF-6A is a fiber-coupled, multimode laser diode array designed for medical applications, such as pumping of solid-state lasers and fiber lasers, and material processing.

What are the available wavelength options for the JOLD-210-CAXF-6A?

The JOLD-210-CAXF-6A has options for 808nm, 915nm, 940nm, and 976nm wavelength.

What is the maximum optical output power of the JOLD-210-CAXF-6A?

The JOLD-210-CAXF-6A has a high optical output power of up to 210 W cw.

What is the typical threshold current of the JOLD-210-CAXF-6A?

The typical threshold current of the JOLD-210-CAXF-6A is 10.666A.
