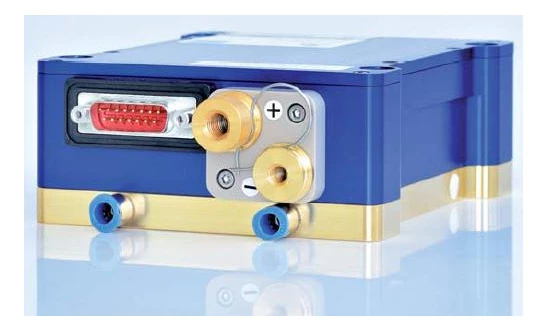

Thumbnail of JOLD-140-CPXF-2P W 915: Fiber Coupled Laser Diode photo 1

Description

The JOLD-140-CPXF-2P-W is a fiber-coupled, multimode laser diode array, with options for 915nm, 940nm, and 976nm wavelength, and CW output power up to 14oW, delivered via 400µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-140-CPXF-2P-W is conductively cooled and is designed for medical applications.

JOLD-140-CPXF-2P W 915: Fiber Coupled Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 915 nm
Output Power: 140000 mW
Fiber Core Diamater: 400 um
Fiber Cladding Diameter: 440 um
Maximum Optical Output Power: 140 W
Wavelengths: 915, 938, 976 nm
Fiber Core Diameter: 400 μm
Numerical Aperture: 0.22
Long Lifetime: > 20,000 h
Typical Operation Current: 95 A
Maximum Operation Current: 105 A
Typical Threshold Current: 6 A
Maximum Threshold Current: 9 A
Typical Slope: 1.6 W/A
Minimum Slope: 1.4 W/A
Maximum Operating Voltage: 4.5 V
Fiber Connector: HP-SMA 905
Power Monitor: Infineon, SFH 229
Pilot Laser Power: 0.5 ... 3 mW
Pilot Laser Wavelength: 650 nm ± 15 nm
Pilot Laser Voltage: 3 ... 5 V
Pilot Laser Current: 40 ± 15 mA
Anode, Cathode Connectors: M8, M6
Signal Connector: D-Sub, male, 15 pin
Expected Lifetime (Constant Current): > 20,000 h
Flow Rate: > 3 l/min
Water Temperature: 8 ... 20 °C
Water Pressure: 400 kPa maximum inlet and outlet pressure
Water Connectors: Ø 6 mm push-in fittings
Water Quality: Industrial water, unfiltered up to a particle size of 0.5 mm
Diode Laser Operating Temperature: 15 ... 35 °C
Integrated Temperature Sensor: PT 100

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 915, 940 and 976 nm
  • High optical output power up to 140 W cw
  • Fiber core diameter: 400 μm (NA 0.22)
  • Integrated pilot laser and power monitor
  • Internal fiber detector ( interlock )
  • Conductive cooling
  • Designed for medical applications

Applications

  • Pumping of solid-state lasers and fi ber lasers
  • Material processing
  • Medical applications

Frequently Asked Questions

What is the JOLD-140-CPXF-2P-W laser diode array used for?
The JOLD-140-CPXF-2P-W laser diode array is designed for medical applications, pumping of solid-state lasers and fiber lasers, and material processing.
What are the available wavelength options for the JOLD-140-CPXF-2P-W laser diode array?
The JOLD-140-CPXF-2P-W laser diode array has options for 915nm, 940nm, and 976nm wavelength.
What is the maximum optical output power of the JOLD-140-CPXF-2P-W laser diode array?
The JOLD-140-CPXF-2P-W laser diode array has a maximum optical output power of 140W cw.
What features does the JOLD-140-CPXF-2P-W laser diode array have?
The JOLD-140-CPXF-2P-W laser diode array has an integrated pilot laser, power monitor, and an internal fiber detector (interlock). It is also conductively cooled and designed for medical applications.
What is the expected lifetime of the JOLD-140-CPXF-2P-W laser diode array?
The JOLD-140-CPXF-2P-W laser diode array has an expected lifetime of over 20,000 hours.

Got more questions? Use the inquiry form to ask the supplier directly.
