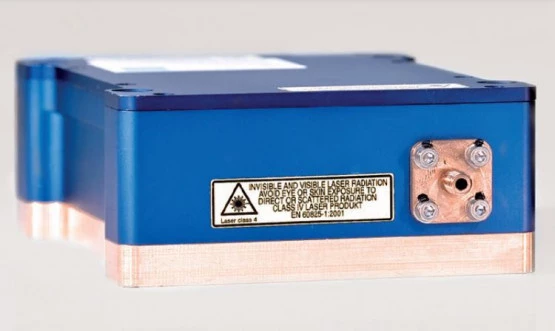

Thumbnail of JOLD-120-QPXF-2P W 808: Fiber Coupled Diode Laser photo 1

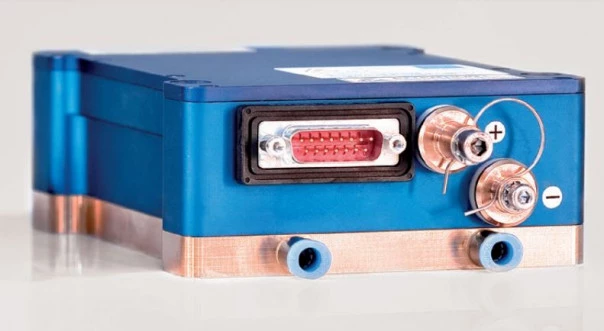

Thumbnail of JOLD-120-QPXF-2P W 808: Fiber Coupled Diode Laser photo 2

Description

JOLD-120-QPXF-2P is a 808nm Fiber Coupled Diode Laser with 120W output power. Depending on the specific configuration, these laser diode modules offer either CW or QCW mode of operation, a pilot laser, power monitor, and/or fiber detector.

It operates with a 600 μm, NA 0.22 fiber with free-standing SMA 905 fiber connector. JOLD-120-QPXF-2P Fiber Coupled Diode Laser incorporate passive water cooling. It can operate with industrial unfiltered water with contaminants of particle size up to 0.5 mm. It comes with an integrated temperature sensor for easy monitoring.

We currently offer two models of JOLD-120 fiber coupled diode lasers operating at 808 nm (this model) and 938 nm center wavelengths.







JOLD-120-QPXF-2P W 808: Fiber Coupled Diode Laser

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 120 mW
Fiber Core Diamater: 600 um
Fiber Cladding Diameter: Not Specified
Maximum Pulse Length / Duty Cycle: ≤ 0.3 ms / ≤ 20 %
Center Wavelength Variation At 25 °C: 5 nm
Typical Spectral Bandwidth (FWHM): 5 nm
Maximum Spectral Bandwidth (FWHM): 6 nm
Typical Operation Current: 105 A
Maximum Operation Current: 120 A
Typical Threshold Current: 18 A
Maximum Threshold Current: 20 A
Typical Slope: 1.4 W/A
Minimum Slope: 1.1 W/A
Maximum Operating Voltage: 5.5 V
Fiber Connector: F-SMA 905, potential free
Pilot Laser: 0.5 ... 3 mW, 650 nm ± 15 nm, 3 ... 5 V, 40 ± 15 mA, power not adjustable (only for teaching and targeting purposes before laser operation)
Power Monitor: Infineon, SFH 229
Anode, Cathode Connectors: M5, M4 (e.g. socket cap screws ISO 4762)
Signal Connector: D-Sub, male, 15 pin
Operation Conditions: Non-condensing atmosphere
Expected Lifetime: > 1 GShot

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

JOLD-120-QPXF-2P W-808nm - Fiber Coupled Diode Laser offers the following key benefits:

•  High optical output power of 120 W qcw
•  Fiber core diameter: 600 μm (NA 0.22)
•  Integrated pilot laser and power monitor
•  Long lifetime > 1GShot, high reliability

Applications

Thanks to stable operation JOLD-120-QPXF-2P W-808nm - Fiber Coupled Diode Laser is ideal for the following applications:

•  Pumping of solid-state lasers and fiber lasers
•  Material processing
•  Medical applications

Frequently Asked Questions

What is the cooling system used in JOLD-120-QPXF-2P Fiber Coupled Diode Laser?
JOLD-120-QPXF-2P Fiber Coupled Diode Laser incorporates passive water cooling and can operate with industrial unfiltered water with contaminants of particle size up to 0.5 mm.
What are the applications of JOLD-120-QPXF-2P Fiber Coupled Diode Laser?
The applications of JOLD-120-QPXF-2P Fiber Coupled Diode Laser include pumping of solid-state lasers and fiber lasers, material processing, and medical applications.
What is the expected lifetime of JOLD-120-QPXF-2P Fiber Coupled Diode Laser?
The expected lifetime of JOLD-120-QPXF-2P Fiber Coupled Diode Laser is greater than 1GShot.
What is the fiber core diameter of JOLD-120-QPXF-2P Fiber Coupled Diode Laser?
The fiber core diameter of JOLD-120-QPXF-2P Fiber Coupled Diode Laser is 600 μm.
What is the output power of JOLD-120-QPXF-2P Fiber Coupled Diode Laser?
The output power of JOLD-120-QPXF-2P Fiber Coupled Diode Laser is 120W.
