Description
The JOLD-100-CPXF-2P-W is a fiber-coupled, multimode laser diode array, with options for 808nm, 880nm, 915nm, 940nm, and 976nm wavelength, and CW output power up to 10oW, delivered via 400µm or 600µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-100-CPXF-2P-W is conductively cooled and is designed for medical applications.

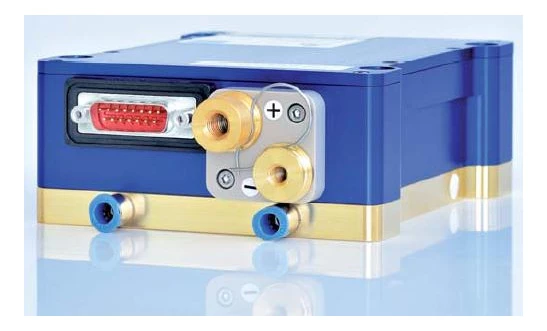

JOLD-100-CPXF-2P W 880: Fiber-Coupled Laser Diode
Specifications
Laser Type: | Continuous Wave (CW) |
---|---|
Fiber Type: | Multi-Mode |
Wavelength: | 880 nm |
Output Power: | 100000 mW |
Fiber Core Diamater: | 400 um |
Maximum Optical Output Power: | 140 W |
Fiber Core Diameter: | 400 μm |
Numerical Aperture: | NA 0.22 |
Center Wavelength At 25 °C: | 880 nm, 915 nm, 938 nm, 976 nm |
Center Wavelength Variation At 25 °C: | 3 nm, 5 nm |
Typical Spectral Bandwidth (FWHM): | 5 nm |
Maximum Spectral Bandwidth (FWHM): | 6 nm |
Typical Operation Current: | 95 A |
Maximum Operation Current: | 105 A |
Typical Threshold Current: | 9 A |
Maximum Threshold Current: | 12 A |
Typical Slope: | 1.6 W/A |
Minimum Slope: | 1.4 W/A |
Maximum Operating Voltage: | 4.5 V |
Pilot Laser Power: | 0.5 ... 3 mW |
Pilot Laser Wavelength: | 650 nm ± 15 nm |
Pilot Laser Voltage: | 3 ... 5 V |
Pilot Laser Current: | 40 ± 15 mA |
Expected Lifetime: | > 20,000 h |
Water Temperature: | 8 ... 20 °C |
Water Pressure: | 400 kPa maximum inlet and outlet pressure |
Diode Laser Operating Temperature: | 15 ... 55 °C |
Features
- Wavelength: 808, 880, 915, 940 and 976 nm
- High optical output power up to 100 W cw
- Fiber core diameter: 400 or 600 μm (NA 0.22)
- Integrated pilot laser and power monitor
- Internal fiber detector (interlock)
- Conductive cooling
- Designed for medical applications
Applications
- Pumping of solid-state lasers and fi ber lasers
- Material processing
- Medical applications
Frequently Asked Questions
What features does the JOLD-100-CPXF-2P-W laser diode array have?
The JOLD-100-CPXF-2P-W laser diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). It is also conductively cooled and designed for medical applications.
What is the JOLD-100-CPXF-2P-W laser diode array used for?
The JOLD-100-CPXF-2P-W laser diode array is designed for medical applications, pumping of solid-state lasers and fiber lasers, and material processing.
What are the available wavelength options for the JOLD-100-CPXF-2P-W laser diode array?
The JOLD-100-CPXF-2P-W laser diode array has options for 808nm, 880nm, 915nm, 940nm, and 976nm wavelength.
What is the fiber core diameter of the JOLD-100-CPXF-2P-W laser diode array?
The JOLD-100-CPXF-2P-W laser diode array has options for 400µm or 600µm core diameter fiber.
What is the maximum CW output power of the JOLD-100-CPXF-2P-W laser diode array?
The JOLD-100-CPXF-2P-W laser diode array has a maximum CW output power of up to 100W.
