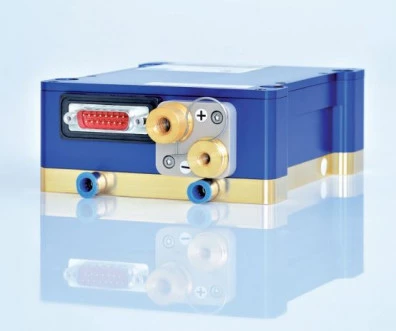

Thumbnail of JOLD-100-CPXF-2P A 940: Fiber Coupled Laser Diode photo 1

Description

The JOLD-100-CPXF-2P-A is a fiber-coupled, multimode laser diode array, with options for 915nm, 940nm, and 980nm wavelength, and CW output power up to 10oW, delivered via 400µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-100-CPXF-2P-A is conductively cooled and is designed for medical applications.

JOLD-100-CPXF-2P A 940: Fiber Coupled Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 940 nm
Output Power: 100 mW
Fiber Core Diamater: 400 um
Maximum Optical Output Power: 100 W
Center Wavelengths: 915, 938, 976 nm
Fiber Core Diameter: 400 μm
Numerical Aperture: 0.22
Typical Operation Current: 95 A
Maximum Operation Current: 105 A
Maximum Operating Voltage: 4.5 V
Expected Lifetime: > 20,000 h
Flow Rate: > 3 l/min
Water Temperature: 8 ... 20 °C
Water Pressure: 400 kPa maximum inlet and outlet pressure
Diode Laser Operating Temperature: 15 ... 35 °C
Integrated Temperature Sensor: PT 100

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 915, 940 and 980 nm
  • High optical output power up to 100 W cw
  • Fiber core diameter of 400 μm ( NA 0.22 )
  • Integrated pilot laser and power monitor
  • Internal fiber detector ( interlock )
  • Conductive cooling
  • Designed for medical applications

Applications

  • Pumping of solid-state lasers and fiber lasers
  • Material processing
  • Medical applications

Frequently Asked Questions

What are the features of the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array features a fiber core diameter of 400 μm (NA 0.22), integrated pilot laser and power monitor, internal fiber detector (interlock), conductive cooling, and is designed for medical applications.
What is the JOLD-100-CPXF-2P-A laser diode array used for?
The JOLD-100-CPXF-2P-A laser diode array is designed for medical applications, material processing, and pumping of solid-state lasers and fiber lasers.
What is the expected lifetime of the JOLD-140-CPXF-2P W laser diode array?
The JOLD-140-CPXF-2P W laser diode array has a long lifetime of over 20,000 hours and high reliability.
What are the available wavelength options for the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array has options for 915nm, 940nm, and 980nm wavelength.
What is the maximum optical output power of the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array has a maximum optical output power of 100 W cw.

Got more questions? Use the inquiry form to ask the supplier directly.
