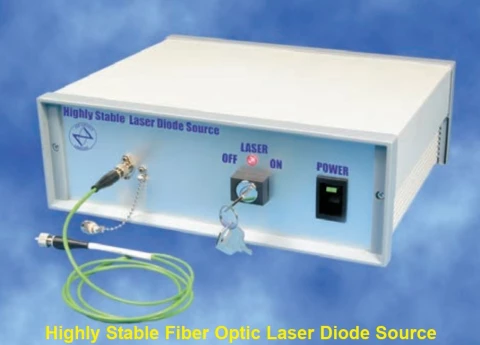

Highly Stable Laser Diode Source
Description
Introducing the Highly Stable Laser Diode Source by OZ Optics - a reliable and versatile solution for a wide range of fiber optic testing and manufacturing applications. With its exceptional stability and a host of advanced features, this laser diode source ensures accurate and efficient performance in demanding environments.
Featuring a broad spectrum of available wavelengths ranging from 400 nm to 2050 nm, the Highly Stable Laser Diode Source offers versatility and flexibility to meet your specific requirements. Whether you need it for accurate fiber optic testing, insertion loss measurement, splicing and connectorization, or end-to-end short link testing, this source has got you covered.
The Highly Stable Laser Diode Source (HIFOSS) from OZ Optics is a meticulously engineered laser diode source designed to deliver exceptional stability and performance. Equipped with a thermoelectric (TE) cooler and an isolator, this source maintains a stable temperature for the laser diode while reducing the effects of backreflection, ensuring reliable and accurate results.
The HIFOSS is available in both receptacle-style and pigtail-style configurations. Receptacle-style sources and pigtail-style sources offer a choice of polarization maintaining, single-mode, or multimode fiber output, with a wide range of receptacles or connectors available. For optimum stability, OZ Optics recommends using angled connectors.
OZ Optics primarily utilizes polarization maintaining fibers based on the PANDA fiber structure for building polarization maintaining components and patchcords. However, alternative fiber types can be used upon request or using customer-supplied fibers.
To provide further customization options, OZ Optics offers the inclusion of a blocking-style optical attenuator, allowing you to adjust the output power according to your specific needs without compromising the spectral properties of the laser diode output. Reach out to OZ Optics for more details on this option.
Highly Stable Laser Diode Source
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 1625 nm |
| Output Power: | 1 mW |
| Fiber Core Diamater: | 9 um |
| Fiber Cladding Diameter: | 125 um |
| Available Wavelengths: | 400 nm to 2050 nm |
| Wavelength Accuracy: | ±20 nm (nominal) |
| Linewidth: | 1.5 nm (Typical for 1550nm) |
| Optical Power Stability: | ±0.004 dB (Typical) |
| Available Receptacles: | Super FC/PC, FC/APC, SC, Angled SC, AT&T-ST, LC, MU |
| Power Supply: | 110/220 V AC 60/50 Hz |
| Dimensions (W X L X H): | 260 x 209 x 90 mm |
| Operating Temperature Range: | 0 to +50 °C |
| Storage Temperature Range: | -40 to +70 °C |
Features
- Wide Range of Available Wavelengths: Choose from an extensive selection of wavelengths, including 400 nm to 2050 nm, to suit your application needs.
- Long Life Time and Excellent Stability: With stability levels of less than 0.1% at 1550 nm, this laser diode source ensures reliable and consistent performance over extended periods.
- High Power Versions Available: For applications requiring higher power output, the Highly Stable Laser Diode Source offers high-power versions to meet your specific power requirements.
- Fiber Output Options: Select from polarization maintaining, single-mode, or multimode fiber output to match your fiber type and application.
- Wide Range of Connector Receptacles: Enjoy the convenience of various connector receptacles, including Super FC/PC, FC/APC, SC, Angled SC, AT&T-ST, LC, and MU, for seamless integration into your existing setup.
- Optional Output Power Adjustment: Adjust the output power as needed with the blocking screw feature, without affecting the spectral properties of the laser diode output.
Applications
- Accurate Fiber Optic Testing: The HIFOSS is well-suited for precise fiber optic testing applications, providing reliable and stable laser output for accurate measurements and analysis.
- Insertion Loss Measurement: Use the HIFOSS as a stable and consistent light source to measure insertion loss in optical components, connectors, and splices, ensuring optimal performance and quality control.
- Splicing and Connectorization: The HIFOSS facilitates the alignment and fusion splicing of optical fibers by providing a stable and reliable light source, ensuring precise and efficient splicing and connectorization processes.
- End-to-End Short Link Testing: Verify the integrity and performance of short fiber links by employing the HIFOSS as a stable light source for end-to-end testing, ensuring proper signal transmission and identifying potential issues.
- Component Manufacturing and Testing: The HIFOSS is an ideal tool for manufacturing and testing optical components such as couplers, splitters, switches, and attenuators, ensuring consistent and accurate performance.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
Yes, the Highly Stable Laser Diode Source offers an optional blocking screw feature that allows you to adjust the output power without affecting the spectral properties of the laser diode output.
The Highly Stable Laser Diode Source is suitable for accurate fiber optic testing, insertion loss measurement, splicing and connectorization, or end-to-end short link testing.
The Highly Stable Laser Diode Source is a laser diode source designed for fiber optic testing and manufacturing applications.
The Highly Stable Laser Diode Source offers a broad spectrum of available wavelengths ranging from 400 nm to 2050 nm.
The Highly Stable Laser Diode Source offers polarization maintaining, single-mode, or multimode fiber output options.
