Wavelength Stabilized Fiber-coupled Laser Diode FBLD-976-27W-FC105-VBG-4Pin
Description
The FBLD-976-27W-FC105-VBG-4Pin is a high-power fiber-coupled laser diode designed for applications that require a stable and powerful laser beam at a wavelength of 976nm.
This laser diode features wavelength stabilization using a Volume Bragg Grating (VBG) and is equipped with a feedback protection filter. With its high output power of 27W and compact fiber-coupled design, it provides reliable and efficient laser performance for various industrial, scientific, and medical applications.

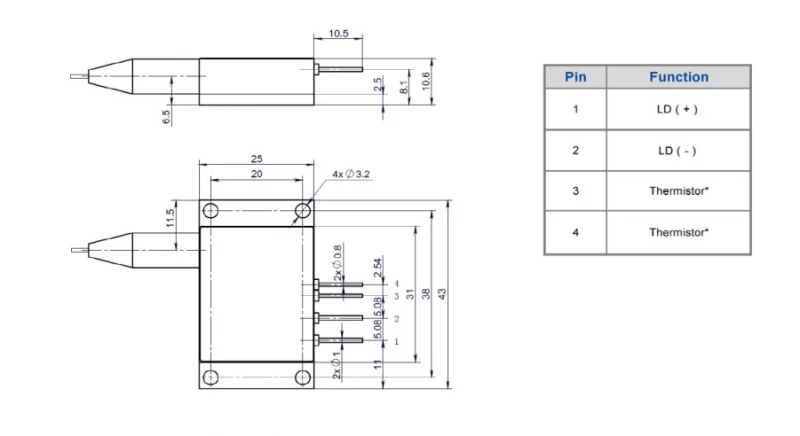

Wavelength Stabilized Fiber-coupled Laser Diode FBLD-976-27W-FC105-VBG-4Pin
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 27000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | 125 um |
| Numerical Aperture (NA): | 0.22 |
| Slope Efficiency: | 2.5 W/A |
| Operation Current: | 12 A |
| Threshold Current: | 0.9 A |
| Minimum Bending Radius: | 50 mm |
| Buffer Diameter: | 250 µm |
| Avelength Shift With Current: | 0.03 nm/A |
| Wavelength Shift With Temp.: | 0.02 nm/°C |
| Back Reflection Isolation: | 30 dB |
| Back Reflection Wavelength: | 1200 nm |
| Spectral Width (FWHM): | 0.7 nm |
Features
- Wavelength: 976nm
- Continuous Wave (CW) output power: 27W
- Fiber core diameter: 105µm with a Numerical Aperture (NA) of 0.22
- Wavelength stabilization using a Volume Bragg Grating (VBG)
- Feedback protection filter
- Optional thermistor for temperature monitoring
- High optical-to-electrical efficiency
- Compact and robust design
- Reliable and long-lasting performance
Applications
- Fiber laser pumping
- Materials processing
- Medical treatments
- Laser-based printing
- Scientific research
- Optical communication
- Spectroscopy
- Laser illumination
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The feedback protection filter is a feature that protects the laser diode from damage caused by back-reflected light.
The thermistor is an optional feature that allows for temperature monitoring of the laser diode.
The laser diode is wavelength stabilized at a specific wavelength (VBG).
The laser diode is commonly used for fiber laser pumping.
Yes, the laser diode is fiber-coupled.
