Description

The FBLD-976-18W-FC105-VBG-2Pin Wavelength Stabilized Fiber-coupled Laser Diode offered by Frankfurt Laser Company is a high-quality laser diode module designed for precision applications. Operating at a wavelength of 976nm, it delivers a continuous wave (CW) output power of 18W.

The module features a fiber core diameter of 105µm and a numerical aperture (NA) of 0.22, ensuring efficient light transmission and accurate beam focusing. With its wavelength stabilization (VBG) and feedback protection filter, it guarantees stable performance and excellent beam quality. This laser diode is ideal for various applications that require high-power and wavelength stability, such as materials processing, scientific research, and medical procedures.

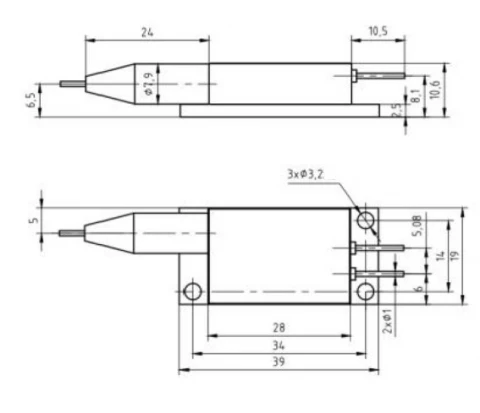

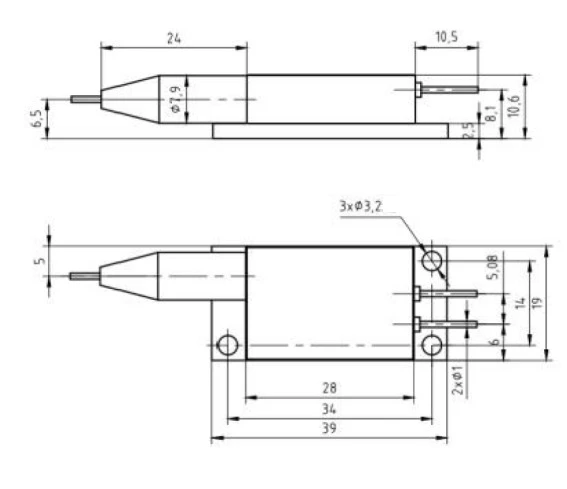

FBLD-976-18W-FC105-VBG-2Pin Wavelength Stabilized Fiber-coupled Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 976 nm
Output Power: 18000 mW
Fiber Core Diamater: 105 um
Fiber Cladding Diameter: 125 um
Numerical Aperture (NA): 0.22
Operation Current: 12 A
Threshold Current: 0.9 A
Minimum Bending Radius: 50 mm
Fiber Length: 1 m
Buffer Diameter: 250 µm
Cladding Diameter: 125 µm
Numerical Aperture: 0.22
Wavelength Shift With Current: 0.03 nm/A
Wavelength Shift With Temp.: 0.02 nm/°C
Back Reflection Isolation: 30 dB
Back Reflection Wavelength: 1040 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 976nm
  • CW Output Power: 18W
  • Fiber Core Diameter: 105µm / NA 0.22
  • Wavelength Stabilized (VBG)
  • Feedback Protection Filter for enhanced stability
  • Compact and reliable design

Applications

  • Materials processing
  • Laser engraving and marking
  • Scientific research
  • Biomedical applications
  • Optical pumping
  • Laser therapy

Frequently Asked Questions

What is the wavelength of the FBLD-976-18W-FC105-VBG-2Pin laser diode?
The laser diode is wavelength stabilized (VBG) but the specific wavelength is not mentioned in the product description.
What is the Feedback Protection Filter in the FBLD-976-18W-FC105-VBG-2Pin laser diode?
The Feedback Protection Filter is a feature that protects the laser diode from damage caused by feedback.
What is the application of the FBLD-976-18W-FC105-VBG-2Pin laser diode?
The laser diode is primarily used for fiber laser pumping.
What is the power output of the FBLD-976-18W-FC105-VBG-2Pin laser diode?
The laser diode has a power output of 18W.
Is the FBLD-976-18W-FC105-VBG-2Pin laser diode fiber-coupled?
Yes, the laser diode is fiber-coupled.
