Description

The FBLD-976-200W-FC400-DF-6Pin Fiber-coupled High-Power Laser Diode by Frankfurt Laser Company is a high-performance laser diode module designed for industrial applications. It operates at a wavelength of 976nm with a continuous wave (CW) output power of 200W.

The module features a detachable fiber with a core diameter of 400µm and a numerical aperture (NA) of 0.22, ensuring efficient power delivery and precise focusing. With its high-power output and reliable performance, it is suitable for various applications in materials processing, laser printing, and scientific research.

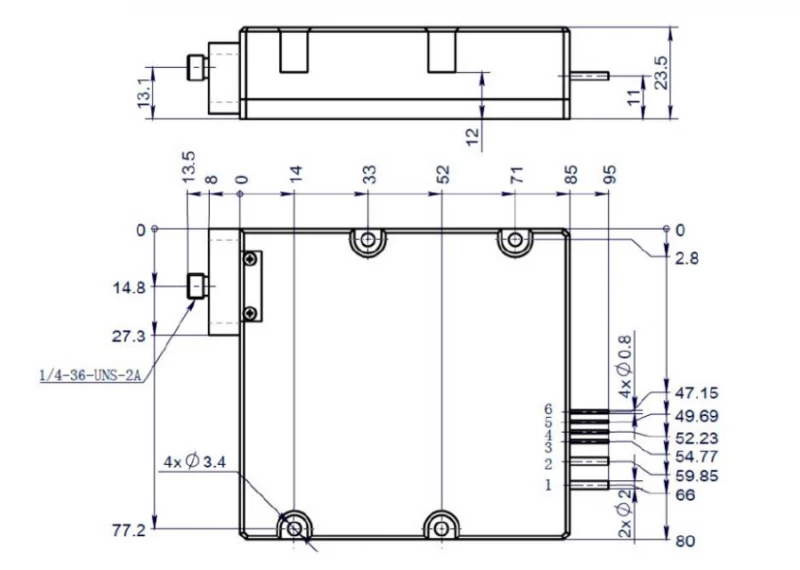

FBLD-976-200W-FC400-DF-6Pin Fiber-coupled High-Power Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 976 nm
Output Power: 200000 mW
Fiber Core Diamater: 400 um
Fiber Cladding Diameter: Not Specified
Numerical Aperture (NA): 0.22
Spectral Width (FWHM): 3 nm
Temperature Drift Of ฮป: 0.2 nm/ยฐC
Threshold Current: 1.0 A
Operation Current: 13. A
Slope Efficiency: 16 W/A
Electrical-to-Optical Efficiency: 50 %
Operation Voltage: 31 V

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 976nm
  • CW Output Power: 200W
  • Fiber Core Diameter: 400µm / NA 0.22
  • Detachable Fiber for easy integration
  • Optional Red Aiming Beam
  • Optional Thermistor for temperature monitoring

Applications

  • Materials processing
  • Laser cutting and welding
  • Laser printing and marking
  • Scientific research
  • Laser pumping

Frequently Asked Questions

What is the Feedback Protection Filter in the FBLD-976-180W-FC200-VBG-6Pin laser diode?
The Feedback Protection Filter is a feature that protects the laser diode from damage due to feedback.
What are the applications of the FBLD-976-180W-FC200-VBG-6Pin laser diode?
The laser diode is used for Fiber Laser Pumping and Material Processing applications.
What are the optional features available in the FBLD-976-180W-FC200-VBG-6Pin laser diode?
The optional features available in the laser diode are Photodiode and Thermistor.
What is the wavelength of the FBLD-976-180W-FC200-VBG-6Pin laser diode?
The laser diode is wavelength stabilized (VBG) and has a wavelength of 976nm.
What is the maximum power output of the FBLD-976-180W-FC200-VBG-6Pin laser diode?
The maximum power output of the laser diode is 180W.

Got more questions? Use the inquiry form to ask the supplier directly.
