EP2051-0-DMH Series 2051nm Carbon Dioxide Sensing Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Ireland
-
Sold by:
-
On FindLight:
since 2019
Description
Eblana Photonics proudly presents the EP2051-0-DMH Series, an advanced solution designed specifically for precise Carbon Dioxide (CO2) detection. This laser series is meticulously engineered to operate at the 2051 nm absorption line, ensuring optimal performance for a variety of CO2 sensing applications. Built on Eblana's renowned Discrete Mode technology platform, the EP2051-0-DMH offers stable and precise lasing performance, making it an ideal choice for environments where accuracy and reliability are paramount.
The EP2051-0-DMH Series showcases a monolithic design that eliminates the need for an external cavity, which contributes to its robustness and ease of integration into existing systems. Its tunability via temperature or current adjustments provides flexibility, allowing users to fine-tune the laser's output to meet specific requirements. Additionally, the low sensitivity to mechanical vibrations ensures consistent performance even in challenging conditions.

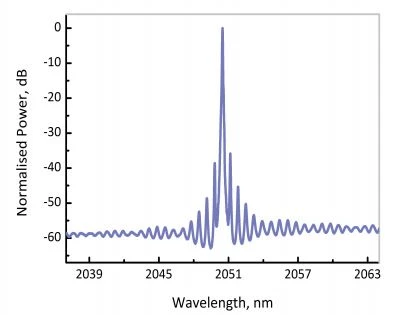

With a focus on delivering high-quality and reliable products, Eblana Photonics offers the EP2051-0-DMH Series with a range of packaging options to suit diverse application needs. The laser's precise spectral performance at 2051 nm, coupled with its high optical isolation and narrow linewidth, underscores its capability to deliver exceptional results in CO2 detection tasks. Experience the cutting-edge technology and expertise that Eblana Photonics has been providing for over a decade with the EP2051-0-DMH Series.
EP2051-0-DMH Series 2051nm Carbon Dioxide Sensing Laser Diode
Specifications |
|
|---|---|
| Laser Type: | Modulated |
| Fiber Type: | Single Mode |
| Wavelength: | 2051 nm |
| Output Power: | 10 mW |
Features
- Precise, Stable Spectral Performance: The EP2051-0-DMH series ensures accurate and stable lasing at 2051 nm, ideal for CO2 detection applications.
- CO2 Detection at 2051 nm: Optimized for carbon dioxide detection using the 2051 nm absorption line.
- Monolithic Design: Features a monolithic design without the need for an external cavity, enhancing reliability and performance.
- Tunable Lasing: Easily tunable by either temperature or current adjustments, providing flexibility in various environments.
- Low Sensitivity to Mechanical Vibration: Engineered to maintain performance with minimal impact from mechanical vibrations.
- Range of Packaging Options: Available in various packaging configurations to suit different application needs.
Applications
- Carbon Dioxide Detection: Industrial, environmental, and safety monitoring systems.
- Gas Analyzers: Integration into portable and fixed CO₂ sensing instruments.
- Environmental Monitoring: Air quality and greenhouse gas tracking.
- Process Control: Leak detection and monitoring in manufacturing.
- Scientific Research: High-precision spectroscopy and laser-based analysis.
- OEM Modules: Custom integration for laser-based sensing products.
- Optical Communication: Suitable for narrow linewidth, stable laser source requirements.
Frequently Asked Questions
The EP2051-0-DMH laser is designed for Carbon Dioxide detection using the 2051 nm absorption line.
The linewidth of the EP2051-0-DMH laser is less than 2 MHz.
The EP2051-0-DMH laser is available in a range of packaging options.
The EP2051-0-DMH laser has low sensitivity to mechanical vibration.
The EP2051-0-DMH laser is built on Eblana's Discrete Mode technology platform.
