Description

Brandnew supply high brightness and high power fiber coupled diode laser which can be used in laser pumping, laser cutting and laser welding. This diode laser is suitable to meet the needs of you who are looking for excellent performance and great quality. 800W 976nm High Power Fiber Coupled Diode Laser, the superior combination of high output power and brightness is backed by extensive reliability testing across a wide range of operating temperatures, drive currents and lifetime tests.

This fiber coupled diode laser have 800W output power, CW working mode, high efficiency and high reliability. 220um fiber core at bare end fiber connector, 0.22NA and 1.5m fiber length with Stable aiming beam, good quality.

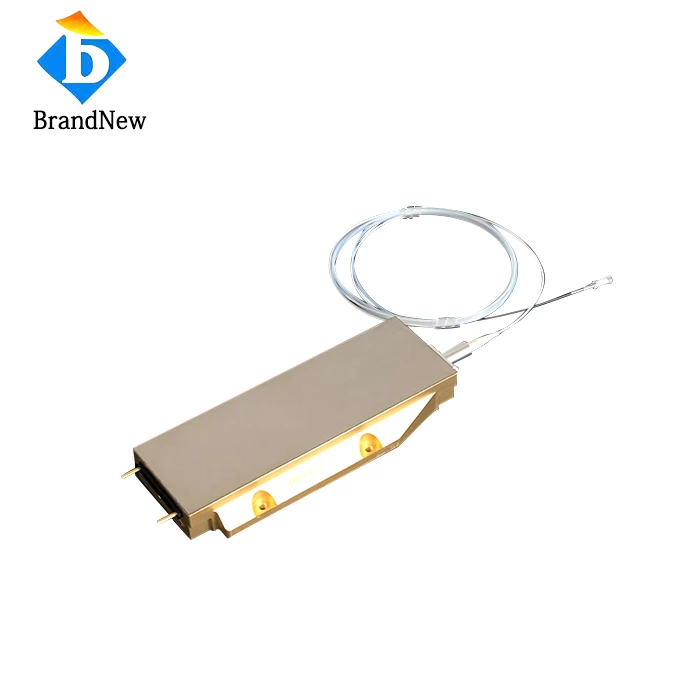

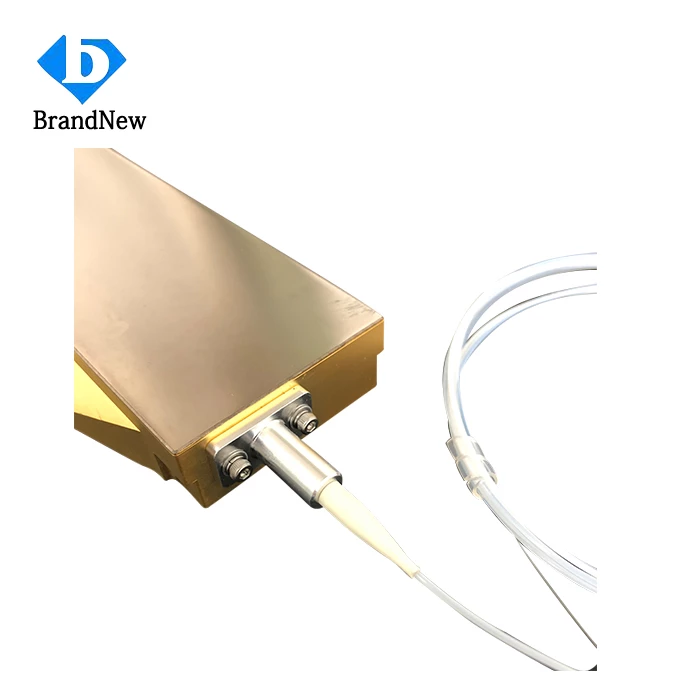

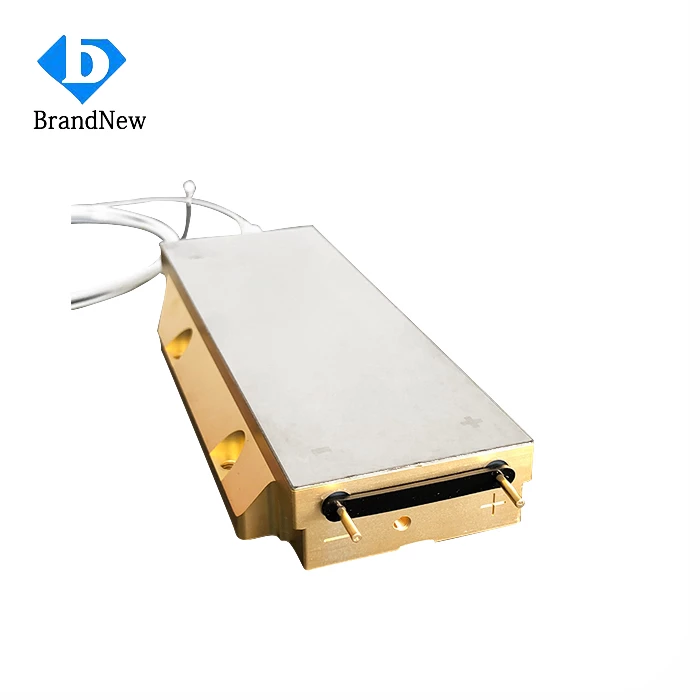

800W 976nm Fiber Coupled Diode Laser

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 976 nm
Output Power: 800000 mW
Fiber Core Diamater: 220 um
Fiber Cladding Diameter: Not Specified
Spectral Width FWHM: 6 nm
Slope Efficiency: 18 W/A
Fiber Bend Radius: >65 mm
Fiber Core Diameter: 220 um
Fiber Numerical Aperture: 0.22 NA
Fiber Connector: Bare End
Operating Current Iop: 25-28 A
Threshold Current Ith: 1.1 A
Operating Voltage Vop: 62~64 V
Power Conversion Efficiency: 43 %
Operating Temperature: 15~35 ℃
Storage Temperature: -20-55 ℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Up to 800W CW output power
  • 976nm standard wavelength
  • 220µm core diameter MM fiber
  • 0.22 Numerical Aperture
  • Highly efficient
  • Highly stable
  • Superior beam quality
  • Long diode lifetime
  • Multiple single emitter-based diode lasers
  • 1040 – 1200 feedback protection

Applications

  • Laser pumping
  • Fiber laser sourcing
  • Laser drilling
  • Laser cutting

Frequently Asked Questions

What is the output power of the 800W 976nm Fiber Coupled Diode Laser?
The output power of the 800W 976nm Fiber Coupled Diode Laser is 800W.
What is the working mode of this diode laser?
The working mode of this diode laser is continuous wave (CW).
What is the core diameter of the fiber used in this diode laser?
The core diameter of the fiber used in this diode laser is 220µm.
What is the numerical aperture of the fiber?
The numerical aperture of the fiber is 0.22NA.
What is the typical center wavelength of this diode laser?
The typical center wavelength of this diode laser is 976nm±10nm.

Got more questions? Use the inquiry form to ask the supplier directly.
