Description
Delivering up to 350W of diode laser into a 200um core fiber, the system makes it easy to develop new applications. This fiber coupled diode laser is manufactured by adopting specialized fiber-coupling techniques, resulting in volume products with a high efficiency, stability and superior beam quality.
The products are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics.
Brandnew Technology has recently developed a 350W 793nm Fiber Coupled Diode Laser with 200 μ m core diameter and 0.22NA fiber. And we can provide other power and wavelength Fiber Coupled according to customer's requirements.

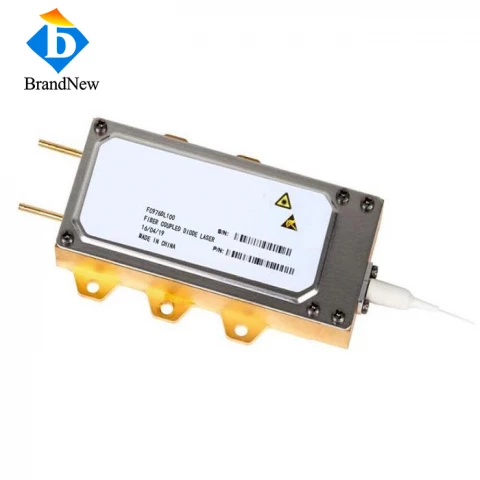

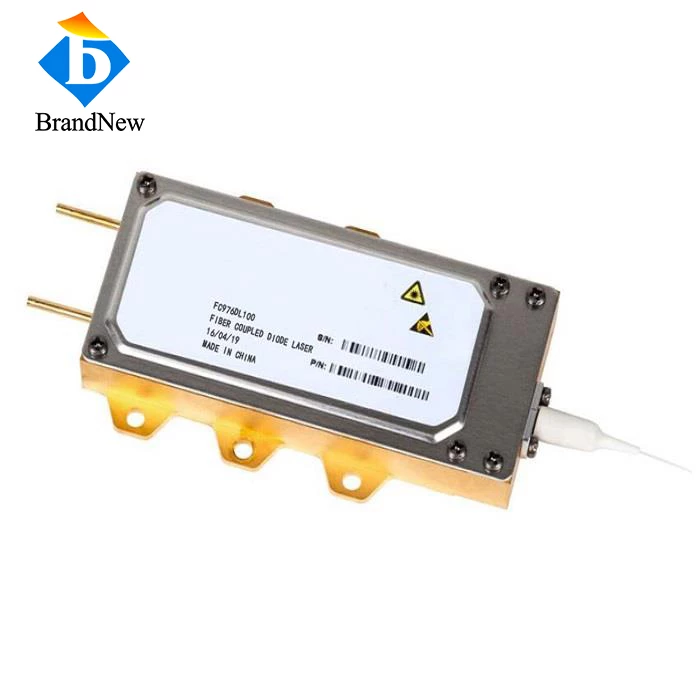

350W 793nm Fiber Coupled Diode Laser
Specifications
Laser Type: | Continuous Wave (CW) |
---|---|
Fiber Type: | Multi-Mode |
Wavelength: | 793 nm |
Output Power: | 350000 mW |
Fiber Core Diamater: | 200 um |
Fiber Cladding Diameter: | Not Specified |
Fiber Numerical Aperture: | 0.22 NA |
Fiber Connector: | Bare end |
Operating Current Iop: | 12 A |
Threshold Current Ith: | 2 A |
Operating Voltage Vop: | 73 V |
Test Temperature: | 25 ℃ |
Storage Temperature: | -30~70 ℃ |
Features
- Up to 350W high output power, high brightness
- 793nm center wavelength, perfect operating performance
- 0.22 numerical aperture, 200um fiber core through 1m fiber length
- 0.3nm/℃ wavelength temperature coefficient
- High sensitivity and overload power with wide dynamic range
- High coupling efficiency
- Isolated electrical contacts
- High Quality, high reliability and stability
Applications
- Material processing
- Medical therapeutics
- Pumping solid-state laser media
- Fiber laser pumping source
- Ion velocity testing
- Bio technology
- Measurement and analysis diagnostics
Frequently Asked Questions
What is the output power of the 350W 793nm Fiber Coupled Diode Laser?
The output power of the 350W 793nm Fiber Coupled Diode Laser is equal to or greater than 340W.
What is the core diameter of the fiber used in this laser?
The core diameter of the fiber used in this laser is 200um.
What is the numerical aperture of the fiber?
The numerical aperture of the fiber is 0.22NA.
What is the wavelength tolerance of the laser?
The wavelength tolerance of the laser is ±10nm.
What are some applications of the 350W 793nm Fiber Coupled Diode Laser?
Some applications of the laser include material processing, medical therapeutics, pumping solid-state laser media, fiber laser pumping source, ion velocity testing, bio technology, and measurement and analysis diagnostics.
