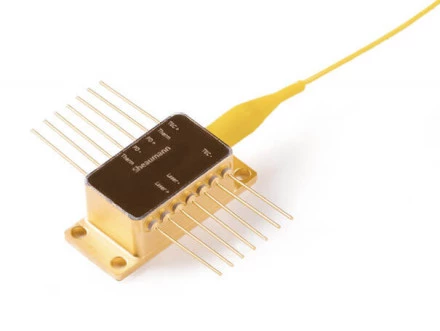

14 Pin Single-mode 1064nm - 200mW Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description
Introducing our advanced 1064nm 200mW laser diode, meticulously engineered for precision and reliability. This laser diode is housed in a hermetically sealed package, ensuring optimal performance and longevity. The inclusion of an internal TEC, thermistor, and photodiode provides enhanced thermal management and stability, making it a robust choice for demanding applications.
Designed with safety and efficiency in mind, this laser diode features a single-mode fiber with an FC/APC connector, ensuring high-quality beam delivery. The electrically isolated design further enhances its safety profile, reducing the risk of electrical interference and ensuring consistent performance.
Our laser diode is built to withstand a range of environmental conditions, with a case temperature operating range from -20ºC to 50ºC and storage capabilities from -40ºC to 85ºC. This resilience, combined with a typical operating power of 200mW and a wavelength of 1064nm, makes it a versatile component for various applications.
Safety is paramount when using laser diodes. It is crucial to avoid direct exposure to the laser beam, as it can be harmful to the eyes. Proper handling procedures, including the use of ESD protection, are essential to prevent device failure. Additionally, maintaining the specified operating conditions is vital to ensure the longevity and reliability of the laser diode.
Our products are designed as components for electronic systems and are not independently certified under IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11. Compliance with export regulations is required, and a Destination Control Statement or End User Agreement may be necessary for each order. For more information on our warranty and terms, please refer to our official documentation.
14 Pin Single-mode 1064nm - 200mW Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 1064 nm |
| Output Power: | 200 mW |
Features
- 1064 nm Single-Mode Output: Provides up to 200 mW of CW optical power with excellent beam quality.
- Hermetically Sealed Package: Ensures long-term reliability and protection from environmental factors.
- Integrated TEC, Thermistor, and Photodiode: Enables precise temperature control, power monitoring, and stability.
- Electrically Isolated: Simplifies system integration and enhances safety.
- Fiber-Coupled Output: Single-mode fiber with FC/APC connector for low back-reflection and stable performance.
Applications
- Scientific Research: Ideal for precision experiments and interferometry requiring stable laser output.
- Industrial Processing: Supports material processing, micromachining, and alignment systems.
- Laser Seeding: Provides stable single-mode output for use in fiber and solid-state laser seeding.
- Sensing and Metrology: Suitable for LIDAR, spectroscopy, and high-resolution optical sensing systems.
- Medical and Biophotonics: Useful in diagnostic equipment and therapeutic laser systems requiring 1064 nm emission.
Frequently Asked Questions
The wavelength emission range of the laser module is 780-1070nm.
The butterfly module features internal TEC, thermistor, and photodiode. It is electrically isolated and hermetically sealed.
The maximum operating power of the laser module is 200mW.
The laser module has an operating current range of 380-450mA, an operating voltage range of 2.1-2.5V, and a threshold current range of 35-50mA.
Yes, laser light emitted from the module is invisible and may be harmful to the human eye. It is important to avoid looking directly into the laser aperture when the device is in operation.
