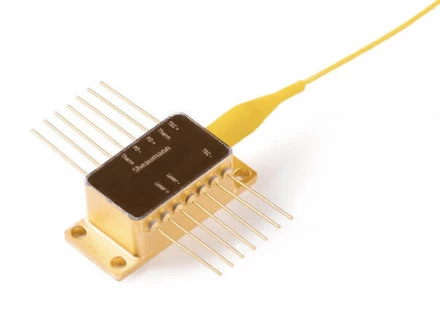

14 Pin Multimode 1064nm - 2W Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description
The 1064nm 2W laser diode is a sophisticated component designed for precision and reliability in demanding applications. Encased in a hermetically sealed package, this laser diode ensures optimal performance and longevity. The inclusion of an internal thermoelectric cooler (TEC), thermistor, and photodiode enhances its operational stability, making it a robust choice for various environments. The device is electrically isolated, which adds an extra layer of safety and reliability, ensuring that it operates efficiently without interference from external electrical noise.
One of the standout features of this laser diode is its 62.5μm, 0.29NA graded index output fiber, which is 1.0m in length. This design choice facilitates efficient light transmission and ensures minimal signal loss, making it ideal for applications requiring high precision and consistency. Additionally, the product offers a variety of fiber and connector options, providing flexibility to meet specific user requirements and integration needs.
Safety and operational considerations are paramount with this laser diode. It is crucial to avoid direct exposure to the laser light, as it is invisible and can be harmful to the human eye. Users are advised to employ appropriate safety measures, such as wearing protective eyewear and avoiding direct eye contact with the laser aperture. Furthermore, the device is sensitive to electrostatic discharge (ESD), necessitating the use of ESD wrist straps and grounded work surfaces during handling to prevent damage.
Operating the laser diode within the specified parameters is essential to prevent device failure and ensure safety. The laser must be adequately cooled, either passively or actively, to maintain the case temperature within the recommended range. Exceeding the operational limits or neglecting the cooling requirements can lead to device degradation or failure, voiding the warranty. It is important to note that these products are intended as components of electronic systems and are subject to specific compliance regulations, including Export Administration Regulations (EAR).
Sheaumann offers a limited warranty for this laser diode, reflecting their commitment to quality and customer satisfaction. For detailed terms and conditions, users are encouraged to refer to the company's official documentation. As specifications are subject to change, it is advisable to consult the latest datasheets or contact Sheaumann directly for the most current information regarding product availability and specifications.
14 Pin Multimode 1064nm - 2W Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 1064 nm |
| Output Power: | 2000 mW |
Features
- High Output Power: Provides up to 2 W continuous-wave optical power at 1064 nm.
- Integrated Thermal Management: Includes internal TEC and thermistor for stable temperature control.
- Built-In Photodiode: Enables real-time output monitoring and feedback control.
- Hermetically Sealed Package: Protects against environmental contaminants for enhanced reliability.
- Electrically Isolated Design: Improves system safety and integration flexibility.
- Fiber-Coupled Output: Supplied with 62.5 µm, 0.29 NA graded-index fiber (1.0 m length).
- Flexible Options: Available with multiple fiber and connector configurations.
Applications
- Materials Processing: Delivers stable 1064 nm output for marking, engraving, and micromachining.
- Medical Instrumentation: Suitable for therapeutic and surgical laser systems.
- Scientific Research: Provides reliable performance for spectroscopy and nonlinear optics.
- Laser Pumping: Effective as a pump source for solid-state or fiber lasers.
Frequently Asked Questions
The wavelength emission range is 780-1070nm.
The features include internal TEC, thermistor, and photodiode, electrically isolated and hermetically sealed package, and a 62.5μm .29NA graded index 1.0m output fiber.
Yes, it can be customized for military applications with optional protection against damaging reverse currents.
The maximum operating power is 2.0W and the maximum operating current is 3.8A.
Yes, it is important to avoid looking directly into the laser aperture when the device is in operation and to follow anti-static techniques when handling diode lasers.
