Page 12 - CW Semiconductor Lasers

The QLD1061-3030 is a 1030-nm distributed feedback (DFB) laser for use in seeder for fiber lasers and sensing applications. The laser is assembled into a 14-pin butterfly package with an optical isolator, a monitor PD and a thermo-electric cooler.

Specifications

Center Wavelength: 1.03 um
Output Power: 50 mW
QLD1335-AA is a quantum-dot (QD) distributed feedback (DFB) laser diode emitting at 1.3-μm wavelength range, which is specially designed for the operation at high temperatures (85°C to 125°C). The laser is mounted into a TO-56 header including a monitor PD and hermetically sealed with a lens cap.

Specifications

Center Wavelength: 1.3 um
Output Power: 30 mW

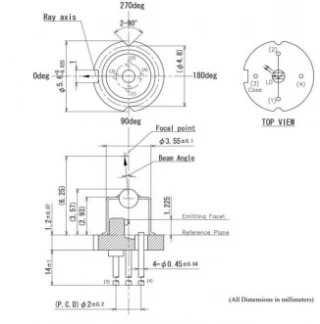

QLF1312-P10 is a 1310 nm quantum dot FP laser diode chip for use in telecom and datacom applications up to 2.5Gbps speed. Since quantum dot technologies are equipped with active layers of the device, it realizes excellent temperature characteristics and low power consumption.

Specifications

Center Wavelength: 1.3 um
Output Power: 15 mW
QLF131F-P16 is a 1305 nm quantum dot FP laser diode chip for use in telecom and datacom applications up to 110 deg.C temperature. Since quantum dot technologies are equipped with active layers of the device, it realizes excellent temperature characteristics and low power consumption.

Specifications

Center Wavelength: 1.305 um
Output Power: 22 mW
The QLF1339-AA is 1310 nm quantum dot laser diode device for use in telecom and datacom applications up to 2.5Gbps speed. The laser is mounted into a TO-56 header without PD monitor and hermetic sealed with a lens cap. Since quantum dot technologies are equipped with active layers of the device, it realizes excellent temperature ...

Specifications

Center Wavelength: 1.31 um
Output Power: 6 mW

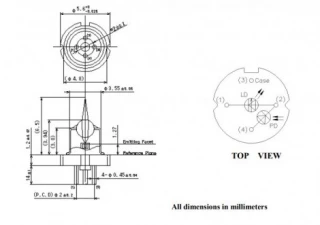

The QLF1335-AD is 1300 nm quantum dot laser diode device for use in extremely high temperature environment. The laser is mounted into a TO-56 header including a monitor PD for optical power control and hermetic sealed with a lens cap. Since quantum dot technologies are equipped with active layers of the device, it realizes excellent ...

Specifications

Center Wavelength: 1.3 um
Output Power: 10 mW

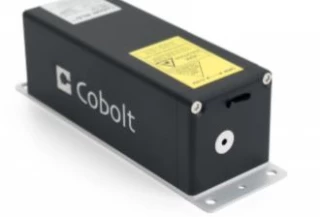

The Cobolt 08-01 Series is a family of narrow linewidth continuous-wave lasers, including diode pumped lasers as well as frequency stabilized diode lasers operating at fixed wavelengths between 405 nm and 1064 nm with output power up to 500 mW. The lasers are designed and manufactured to ensure the highest level of reliability. ...

Specifications

Center Wavelength: 0.457 um
Output Power: 25 mW
The Cobolt 08-01 Series is a family of narrow linewidth continuous-wave lasers, including diode pumped lasers as well as frequency stabilized diode lasers operating at fixed wavelengths between 405 nm and 1064 nm with output power up to 500 mW. The lasers are designed and manufactured to ensure the highest level of reliability. ...

Specifications

Center Wavelength: 0.405 um
Output Power: 30 mW

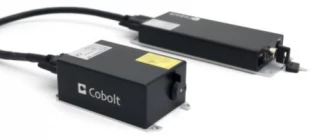

The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 1.0642 um
Output Power: 3000 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.6596 um
Output Power: 500 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.6396 um
Output Power: 500 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.5612 um
Output Power: 500 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.5321 um
Output Power: 1500 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.5148 um
Output Power: 300 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.4915 um
Output Power: 200 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.457 um
Output Power: 200 mW
The Cobolt 05-01 Series lasers are continuous-wave diode pumped laser (DPL) devices operating at a fixed wavelength between 355 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package. The lasers emit a very high quality laser beam ...

Specifications

Center Wavelength: 0.3548 um
Output Power: 20 mW

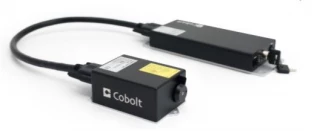

The Cobolt 04-01 Series lasers are continuous-wave diode-pumped laser (DPL) devices operating at a fixed wavelength between 457 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package which has been shown to withstand 60G mechanical shocks ...

Specifications

Center Wavelength: 1.0642 um
Output Power: 400 mW
The Cobolt 04-01 Series lasers are continuous-wave diode-pumped laser (DPL) devices operating at a fixed wavelength between 457 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package which has been shown to withstand 60G mechanical ...

Specifications

Center Wavelength: 0.6596 um
Output Power: 100 mW
The Cobolt 04-01 Series lasers are continuous-wave diode-pumped laser (DPL) devices operating at a fixed wavelength between 457 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package which has been shown to withstand 60G mechanical ...

Specifications

Center Wavelength: 0.5936 um
Output Power: 100 mW
