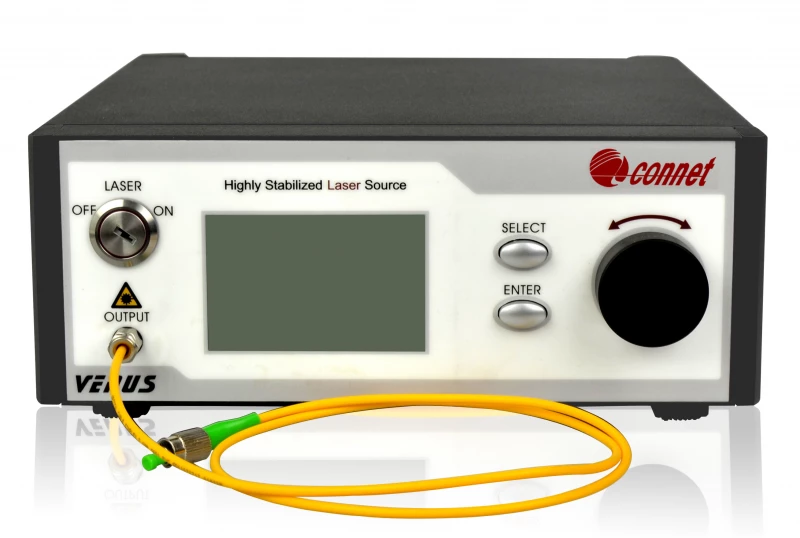

Thumbnail of Connet VENUS 1480nm High Stability Single-Mode Pump Laser Source photo 1

Description

The Connet VENUS series 1480nm High Stability Single-Mode Pump Laser Source is a cutting-edge laser source engineered for high-performance applications such as EDFA (Erbium-Doped Fiber Amplifier), Raman amplifiers, and more. With built-in isolation protection, Connet ensures added safety for the pump laser source.

This highly integrated turn-key system boasts a high-definition LCD display for continuously adjustable output power and simultaneous monitoring of current and voltage. Additionally, Connet offers modular packaging options tailored to user requirements, simplifying system integration.

Connet VENUS 1480nm High Stability Single-Mode Pump Laser Source

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 1.48 um
Output Power: 800 mW
Output Power: 100 to 800 mW
Peak Operating Wavelength: 1460 to 1490 nm
Spectral Width (FWHM): 5 nm
SMSR: 20 dB
Output Isolation: 30 dB
Stability Of Output Power (typ.): ±0.5%
Output Power Tunable Range: 0 to 100%
Part No.: VLSS-1480-B
Output Fiber Type: SMF or PMF
Length Of Output Fiber: >1 m
Output Fiber Connector: FC/APC (other options available)
Operating Voltage: 100-240 V AC
Power Consumption: 10 W
Operating Temperature: 0 to +50 ℃
Storage Temperature: -40 to +85 ℃
Dimensions: 340(L) x 240(W) x 100(H) mm
Output Power Tunable Mode: Coarse / Fine

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Single-mode high power output, up to 800mW
  • Optional built-in isolation protection
  • Stable output power, continuously adjustable
  • LCD display for work status
  • High-precision ACC and ATC control circuit

Applications

  • C-Band high-power EDFA
  • L-Band high-power EDFA
  • Raman amplifier
  • Test and measurement
  • Other laboratory applications

Frequently Asked Questions

Can the laser source be computer-controlled?
Yes, Connet can provide corresponding communication interfaces and control software according to user requirements to achieve computer control.
Is there built-in isolation protection for the laser source?
Yes, built-in isolation protection is optional.
What are the available ordering options for the laser source?
The available ordering options are package type (B-benchtop, M-module), output power in mW (300-300mW, 500-500mW), and feedback protection (0-none, 1-yes).
What is the Connet VENUS series 1480nm single-mode pump laser source used for?
It is a high performance pump laser source designed for high performance EDFA, Raman amplifier and other applications.
What is the output power range of the laser source?
The output power range is up to 800mW.
