Page 3 - Fiber Amplifiers

Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp Erbium-doped Fiber Amplifier (EDFA) uses a unique optical path design with the proprietary ultra-low noise Erbium-doped fiber, featuring with low noise figure and high gain, which can be used for effectively amplifying such weak signal as -50dBm. The comprehensive performance ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1528 – 1560 nm
Min Input Power: -50 dBm
Max Output Power: 20 dBm
Nominal Gain: 30 dB
Connet's CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser specially designed for long-distance coherent Doppler wind LiDAR application.  This fiber laser is generally suited for applications which require a long-pulse (in the pulse range of ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1545 – 1565 nm
Min Input Power: Not Specified
Max Output Power: 34.77 dBm
Nominal Gain: Not Specified
The MARS series 1.0um high power pulsed fiber amplifiers of Connet are specially designed for short pulse (<50ns) amplification. These amplifiers employ the optimized double cladding fiber amplification technology. Therefore, it can guarantee the maximum optical-optical conversion efficiency and the minimum ...

Specifications

Amplifier Type: YDFA - Ytterbium-Doped Fiber Amplifier
Wavelength Range: 1040 – 1083 nm
Min Input Power: Not Specified
Max Output Power: 37 dBm
Nominal Gain: 30 dB
The MARS series C-band PreAmp EDFA module of Connet is the high-gain, low-noise fiber preamplifier (Pre-EDFA). This amplifier is used to pre-amplify the small signal (down to - 40dBm), improve the receiver sensitivity and extend the transmission distance of the signal. This series of amplifiers employ the optimized Erbium-doped ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1528 – 1560 nm
Min Input Power: Not Specified
Max Output Power: 10 dBm
Nominal Gain: 50 dB
An optical amplifier is a device which receives some input signal light and generates an output signal with higher optical power. Typically, inputs and outputs are laser beams (very rarely other types of light beams), either propagating as Gaussian beams in free space or in a fiber. The amplification occurs in a so-called gain ...

Specifications

Amplifier Type: Not Specified
Wavelength Range: 1525 – 1565 nm
Min Input Power: -3 dBm
Max Output Power: -40 dBm
Nominal Gain: Not Specified
Introducing our Erbium-doped Fiber Line Amplifier, a cutting-edge optical power amplifier meticulously designed for superior performance in fiber laser and fiber communication systems. This advanced In-Line Amplifier, also known as a Line Amplifier (LA), seamlessly integrates the strengths of both Pre-Amplifiers (PA) and Booster ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1565 nm
Min Input Power: Not Specified
Max Output Power: 26 dBm
Nominal Gain: 0.5 dB
Connet MARS series L-band high power optical fiber amplifier is integrated with high power and high property multi-mode pumps, plus the double cladding fiber amplifying technology and the optimized optical structure design to realize the output power up to 5W. It has built-in laser current driver, high accuracy ATC & ACC (APC) ...

Specifications

Amplifier Type: Not Specified
Wavelength Range: 1575 – 1602 nm
Min Input Power: -3 dBm
Max Output Power: Not Specified
Nominal Gain: Not Specified
These amplifiers harness the power of high-performance multi-mode pump sources and utilize integrated double cladding fiber amplification technology, ensuring outstanding output power ranging from 1W to 20W. The MARS series optical fiber amplifiers are complete Turn-Key systems, featuring a microprocessor for precise control. The ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1575 nm
Min Input Power: 4.7 dBm
Max Output Power: 43 dBm
Nominal Gain: 66 dB
The MARS series C-band PreAmp Er-doped fiber amplifiers of Connet are the high-gain, low-noise fiber amplifiers (Pre-EDFA). This amplifier is used to pre-amplify the small signal, improve the receiver sensitivity and extend the transmission distance of the signal. This series of amplifiers employ the optimized Er- doped fiber optical ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1528 – 1560 nm
Min Input Power: Not Specified
Max Output Power: 10 dBm
Nominal Gain: 30 dB
The Connet CoLIS-MP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser designed for medium-distance coherent Doppler wind LiDAR applications. Operating at an eye-safe wavelength, this laser delivers single-mode linear polarization with an impressive ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1545 – 1565 nm
Min Input Power: Not Specified
Max Output Power: Not Specified
Nominal Gain: Not Specified
An optical amplifier is a device which receives some input signal light and generates an output signal with higher optical power. Typically, inputs and outputs are laser beams (very rarely other types of light beams), either propagating as Gaussian beams in free space or in a fiber. The amplification occurs in a so-called gain ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1525 – 1565 nm
Min Input Power: -10 dBm
Max Output Power: 23 dBm
Nominal Gain: Not Specified
The MOA is a miniaturized high power fiber optic amplifier from Bktel capable of producing up to 17dBm of output power between 1529 nm to 1564nm. This series of fiber amplifiers can be configured with single or multiple output ports terminated with your choice of industry standard connectors including SC/APC and FC/APC.  The ...

Specifications

Amplifier Type: Not Specified
Wavelength Range: 1529 – 1564 nm
Min Input Power: -30 dBm
Max Output Power: 17 dBm
Nominal Gain: 5.5 dB
Highly efficiently multicascaded Raman lasers based on phosphosilicate fibers (P-doped) can be created at different wavelength. Raman shift by 1330 cm-1 in opposite to Ge-doped fibers is approximately three times larger.  Output emission spectrum of two-cascade 1.48 µm Raman fiber laser converter is presented in the ...

Specifications

Amplifier Type: Raman Amplifier
Wavelength Range: 1240 – 1484 nm
Max Output Power: Not Specified
Nominal Gain: Not Specified
Central Wavelength, Nm: 1240, 1270, 1484
Fiber amplifier FOA-EDFA-HP-30-1 offers unprecedentedly high level of nonlinearity threshold, which exceeds that of standard single-mode erbium doped fiber amplifiers by two orders of magnitude. Peak power of tens kW and pulse energy of about 1 mJ can be achieved with this amplifier. Standard version of amplifier deliver 5W of ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1550 – 1580 nm
Max Output Power: 38 dBm
Nominal Gain: 30 dB
Central Wavelength, Nm: 1550, 1565, 1580
L-Band and Extended L-Band DWDM EDFA devices from Amonics are expertly crafted under a HKQAA ISO 9001 certified quality management system, ensuring high standards in production quality. Please note that the ISO 9001:2008 certification is specific to the Hong Kong production site. These Erbium-doped Fiber Amplifiers (EDFA) are ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1570 – 1620 nm
Max Output Power: 22 dBm
Nominal Gain: 25 dB
Output Fiber Type: SMF-28
L-Band and Extended L-Band DWDM Erbium-Doped Fiber Amplifiers (EDFA) are part of Amonics' specialized product lineup. These amplifiers are crafted under a HKQAA ISO 9001 certified quality management system, ensuring superior quality and reliability. It is important to note that the ISO 9001:2008 certification is applicable ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1570 – 1603 nm
Max Output Power: 22 dBm
Nominal Gain: 30 dB
Output Fiber Type: SMF-28

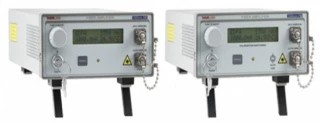

The Benchtop Pre-Amp, Booster, and In-line Amplifier is an essential tool for enhancing signal strength in various applications. Designed with precision and reliability in mind, this amplifier is ideal for users seeking to improve signal quality and maintain high performance in demanding environments. Its robust construction and ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1563 nm
Max Output Power: 13 dBm
Nominal Gain: 30 dB
Output Fiber Type: SMF-28
Experience unparalleled performance with our EDFA for Burst Mode Networks, designed to deliver exceptional optical amplification in dynamic network environments. This advanced device is engineered to support high-speed data transmission, ensuring robust and reliable communication across your network. With its state-of-the-art ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1537.37 – 1561.62 nm
Max Output Power: 15 dBm
Nominal Gain: 18 dB
Output Fiber Type: SMF-28
The Benchtop Pre-Amp, Booster, and In-line Amplifier is an essential tool for enhancing signal strength in various applications. Designed with precision and reliability in mind, this amplifier is ideal for users seeking to improve signal quality and maintain high performance in demanding environments. Its robust construction and ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1563 nm
Max Output Power: 18 dBm
Nominal Gain: 35 dB
Pre-Amp And Booster Specs: Check datasheet for details
The Benchtop Pre-Amp, Booster, and In-line Amplifier is an essential tool for enhancing signal strength in various applications. Designed with precision and reliability in mind, this amplifier is ideal for users seeking to improve signal quality and maintain high performance in demanding environments. Its robust construction and ...

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1563 nm
Max Output Power: 23 dBm
Nominal Gain: 40 dB
Pre-Amp And Booster Specs: Check datasheet for details
