Description

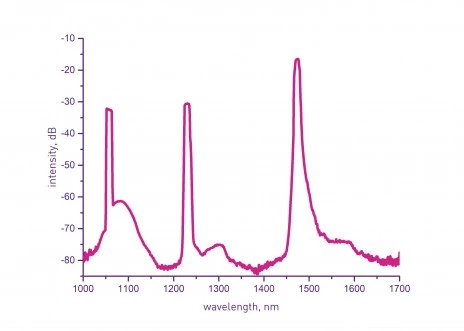

Highly efficiently multicascaded Raman lasers based on phosphosilicate fibers (P-doped) can be created at different wavelength. Raman shift by 1330 cm-1 in opposite to Ge-doped fibers is approximately three times larger. Output emission spectrum of two-cascade 1.48 µm Raman fiber laser converter is presented in the graph.
The wavelength region can be changed at the customer\'s request.
Available to change the wavelength with combination of Ge-doped and P-doped).
RAMAN FIBER LASER CONVERTERS FOLR
Specifications
| Amplifier Type: | Raman Amplifier |
|---|---|
| Wavelength Range: | 1240 – 1484 nm |
| Max Output Power: | Not Specified |
| Nominal Gain: | Not Specified |
| Central Wavelength, Nm: | 1240, 1270, 1484 |
| Spectral Bandwidth, Nm: | 0.1 ± 0.05 |
Frequently Asked Questions
What are Raman fiber laser converters?
                        Raman fiber laser converters are highly efficient lasers that are created using phosphosilicate fibers (P-doped) and can operate at different wavelengths.

                How does the Raman shift of these converters compare to Ge-doped fibers?
                        The Raman shift of these converters is approximately three times larger than that of Ge-doped fibers.

                What is the central wavelength of the FOLR -1240 converter?
                        The central wavelength of the FOLR -1240 converter is 1240 ± 0.2 nm.

                What is the operating temperature range for these converters?
                        The operating temperature range for these converters is from +10°C to +50°C.

                Can the wavelength region be changed according to customer's request?
                        Yes, the wavelength region can be changed according to the customer's request.
