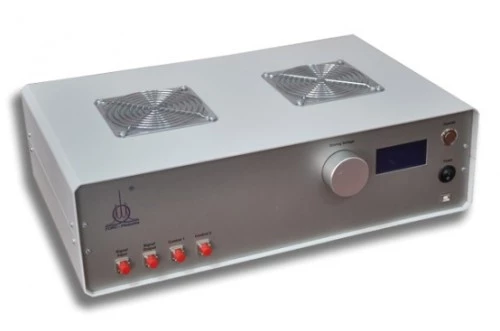

Thumbnail of LARGE MODE AREA DOUBLE CLAD EDFA FOA-HP-30-1 photo 1

Description

Fiber amplifier FOA-EDFA-HP-30-1 offers unprecedentedly high level of nonlinearity threshold, which exceeds that of standard single-mode erbium doped fiber amplifiers by two orders of magnitude. Peak power of tens kW and pulse energy of about 1 mJ can be achieved with this amplifier.

Standard version of amplifier deliver 5W of average power even for a very small input signal (gain of more than 30 dB is achievable).

LARGE MODE AREA DOUBLE CLAD EDFA FOA-HP-30-1

Visit the FORC-Photonics Store

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1550 – 1580 nm
Max Output Power: 38 dBm
Nominal Gain: 30 dB
Central Wavelength, Nm: 1550, 1565, 1580
Spectral Bandwidth, Nm: > 15
Output Optical Power, W: > 4
Input Optical Power, MW: 20

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High peak power;
  • Backward pulses control;
  • Stability and compactness;
  • Safety for eyes.

Applications

  • Remote sensing (lidars);
  • Three-photon microscopy;
  • Scientific instrumentation;
  • Pumping of different lasers types

Frequently Asked Questions

What is the nonlinearity threshold of the FOA-EDFA-HP-30-1 fiber amplifier?
The FOA-EDFA-HP-30-1 fiber amplifier offers an unprecedentedly high level of nonlinearity threshold, exceeding that of standard single-mode erbium doped fiber amplifiers by two orders of magnitude.
What is the peak power and pulse energy that can be achieved with this amplifier?
With the FOA-EDFA-HP-30-1 amplifier, a peak power of tens of kW and a pulse energy of about 1 mJ can be achieved.
What is the average power delivered by the standard version of the amplifier?
The standard version of the amplifier delivers 5W of average power, even for a very small input signal. A gain of more than 30 dB is achievable.
What are the features of the FOA-EDFA-HP-30-1 fiber amplifier?
The FOA-EDFA-HP-30-1 fiber amplifier features high peak power, backward pulses control, stability, and compactness. It also ensures safety for the eyes.
What are the applications of the FOA-EDFA-HP-30-1 fiber amplifier?
The FOA-EDFA-HP-30-1 fiber amplifier is suitable for remote sensing (lidars), three-photon microscopy, scientific instrumentation, and pumping of different laser types.

Got more questions? Use the inquiry form to ask the supplier directly.
