Description

The HPOA-1 is a high power fiber optic amplifier from Bktel capable of producing up to 40dBm of output power between 1030 nm to 1100nm.   This series of fiber amplifiers comes available in a standard rack-mount configuration, with input and output ports terminated with your choice of industry standard connectors including SC/APC and FC/APC.

Available either standard single mode or polarization maintaining fiber, the HPOA-1 is capable of handling input powers from -10 to 15 dBm and provides 30dB of optical isolation, making sure to protect the seed laser from dangerous back reflections. In addition to an industry standard RS232 communication interface, this end user fiber amplifier also comes with an optional graphical user interface for more natural control.

With a built-in power supply, this unit runs on standard 100-240 VAC making it the ideal amplifier for high power laboratory applications. All of these features make the HPOA-1 series of fiber optic amplifiers a robust tool for applications like LIDAR, free space communications, and many others.

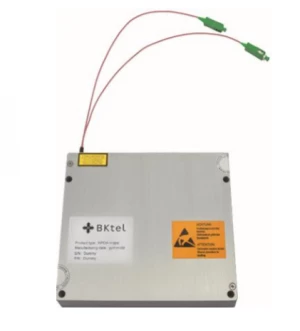

HPOA-1: 1 µm-Band High Power Optical Amplifier

Specifications

Amplifier Type: Not Specified
Wavelength Range: 1030 – 1100 nm
Min Input Power: -10 dBm
Max Output Power: 15 dBm
Nominal Gain: Not Specified
Output Fiber Type: Not Specified
Optical Input Isolation: 30 dB
Noise Figure: 5.0 dB
PDG: 0.5 dB
PMD: 0.5 ps
Return Loss: 40 dB
Fiber Termination / Connector: FC/APC, Collimator, others
Power Supply Voltage: 24 V

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Output Power, up to 5W
  • Compact Package (150 x 170 x 25 mm)
  • Digital Control System

Applications

  • Airborne LIDAR
  • Optical Tweezing
  • Test & Measurement

Frequently Asked Questions

What communication interface does the HPOA-1 fiber optic amplifier come with?
In addition to an industry standard RS232 communication interface, this end user fiber amplifier also comes with an optional graphical user interface for more natural control.
What is the optical isolation provided by the HPOA-1 fiber optic amplifier?
The HPOA-1 provides 30dB of optical isolation, making sure to protect the seed laser from dangerous back reflections.
What is the wavelength range of the HPOA-1 fiber optic amplifier?
The HPOA-1 is capable of producing output power between 1030 nm to 1100nm.
What is the input power range of the HPOA-1 fiber optic amplifier?
The HPOA-1 is capable of handling input powers from -10 to 15 dBm.
What is the output power range of the HPOA-1 fiber optic amplifier?
The HPOA-1 is capable of producing up to 40dBm of output power.

Got more questions? Use the inquiry form to ask the supplier directly.
