CTFL-TERA - CW Thulium Fiber Laser

Keopsys by Lumibird
REQUEST QUOTE
CTFL-TERA - CW Thulium Fiber Laser

OVERVIEW

The CTFL-TERA series is a range of 2µm Continuous Wave thulium fiber laser delivering
up to 30W output power with random or linear polarization. The innovative all-in fiber
designs offer a very good optical power stability with an excellent beam quality, M2<1.1
or M2<1.3 depending on the output power. Solutions are possible with a fixed operating
center wavelength between 1900nm and 2050nm.



The CTFL-TERA lasers are commonly used for applications such as medical surgery, medical
treatment, Solid state laser pumping, plastic material processing and for counter-measure
in defense.

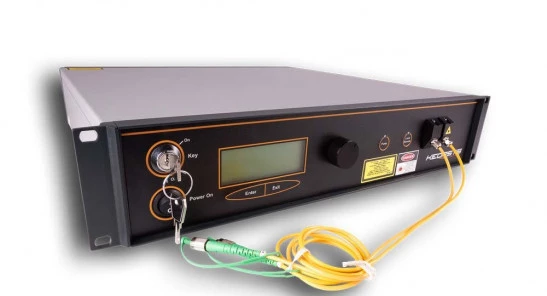

The CTFL-TERA series is proposed in turn-key easy rack with a user-friendly front panel.
Depending on the model, the rack can be remotely controlled with a RS232 communication
through Sub-D 9 connector, or with a RS232 communication through a USB connector
and Webpages/Telnet/SSH/SNMP2 through a RJ45 connector. OEM modules are also
available with a microcontroller for internal controls, alarms, and RS232 communications
making the laser compatible with all systems.

SPECIFICATION

  • Wavelength: From 1900 to 2050 nm
  • Output Power: Up to 30 W
  • Beam Quality (M^2): <1.1 or <1.3
  • Operation Mode: Continuous Wave (CW), Modulated
  • Output Fiber Length: 1 m
Download Data Sheet

Applications


  • Medical surgery

  • Medical treatment

  • Solid state laser pumping

  • Plastics material processing

  • Counter-measure in Defense

KEY FEATURES


  • Large choice of wavelength from 1900 to 2100 nm

  • High output power: up to 30W

  • Linear polarization available

  • Compact module

  • Plug & play benchtop

  • High beam quality
