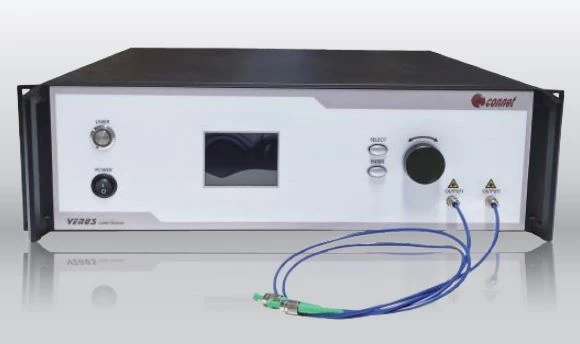

1.5um CoSF-D High Power Narrow Linewidth Single Frequency Fiber Laser (HP2/HP3)
OVERVIEW
Connet CoSF-D narrow linewidth single frequency fiber laser is a low-noise fiber laser independently developed by patented technology. It adopts the Distributed Feedback Bragg Grating (DFB) type fiber laser technology and has independent intellectual property to achieve stable linear polarization, single longitudinal mode and ultra-narrow linewidth single-frequency laser output. The unique Relative Intensity Noise (RIN) suppression technique guarantees the low noise operation of the CoSF-D narrow linewidth single frequency fiber laser.
Connet CoSF-D narrow linewidth single frequency fiber laser has excellent performance with the output optical spectrum linewidth of kHz level and the ultra-low frequency noise and intensity noise. The OSNR is greater than 50dB.
CoSF-D-HP2/HP3 high power narrow linewidth single frequency fiber laser internally adopts MOPA design, based on CoSF-D basic module, integrates low noise fiber amplifier and high power double-clad Er/Yb co-doped fiber amplifier to achieve the output power up to 50W.
SPECIFICATION
- Wavelength: 1545 - 1570 nm
- Output Power: 10 - 50 W
- Beam Quality (M^2): <1.1
- Operation Mode: Continuous Wave (CW)
Applications
·Optical fiber sensing
·LiDAR
·Microwave photonics
·Cold atom physics
·Laser spectroscopy
·Coherent communication
·Other scientific research
KEY FEATURES
·Ultra-narrow linewidth < 10kHz
·Stable single-frequency & single polarization
operation
·No mode hopping, No bursting noise
·Low phase noise and low relative intensity noise
·Flexible design, multiple wavelengths optional
·Linear polarization output, high PER
