Description

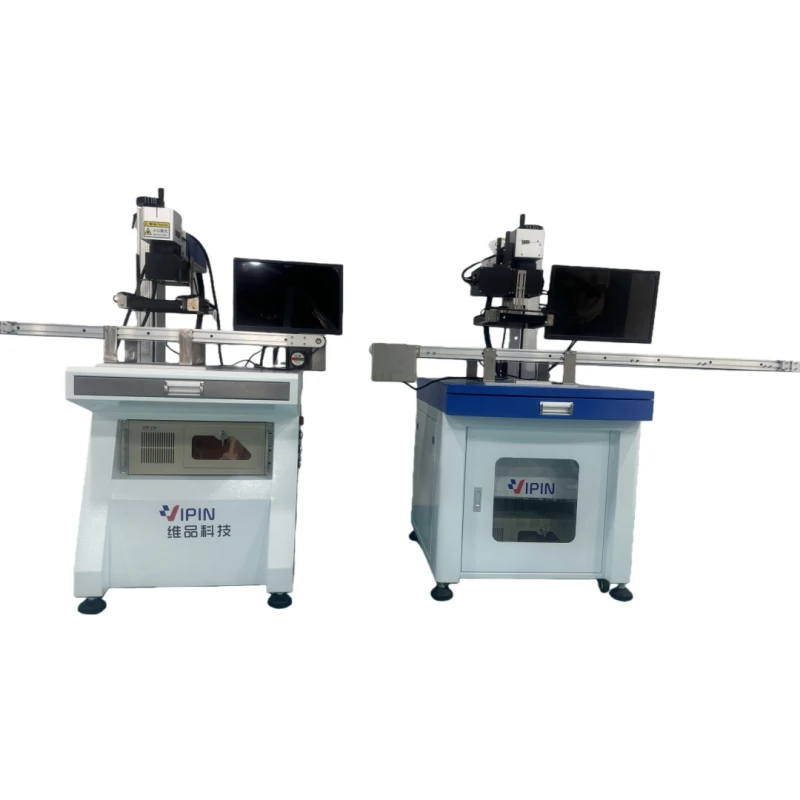

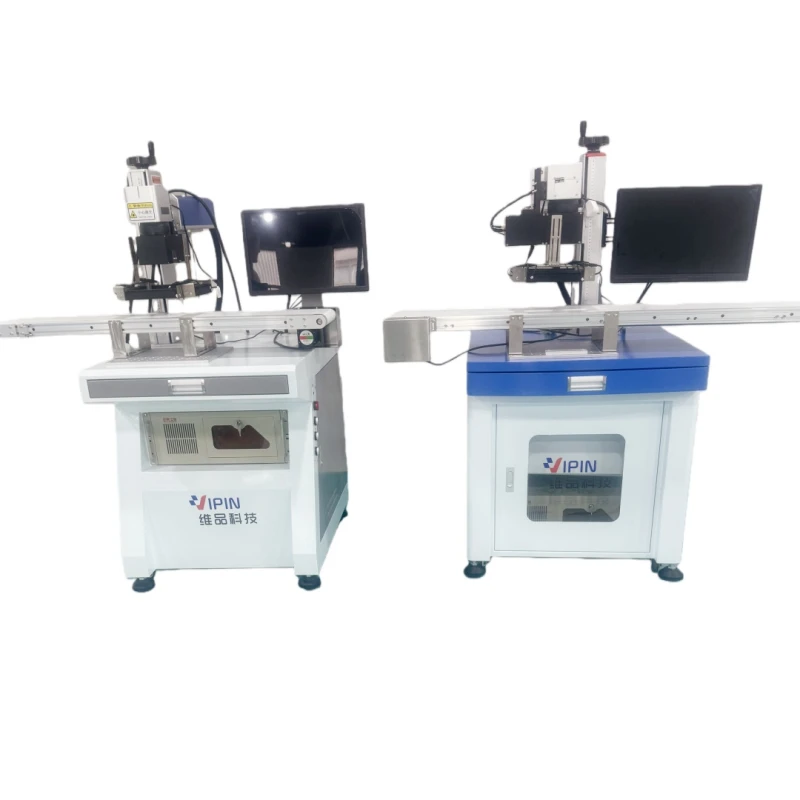

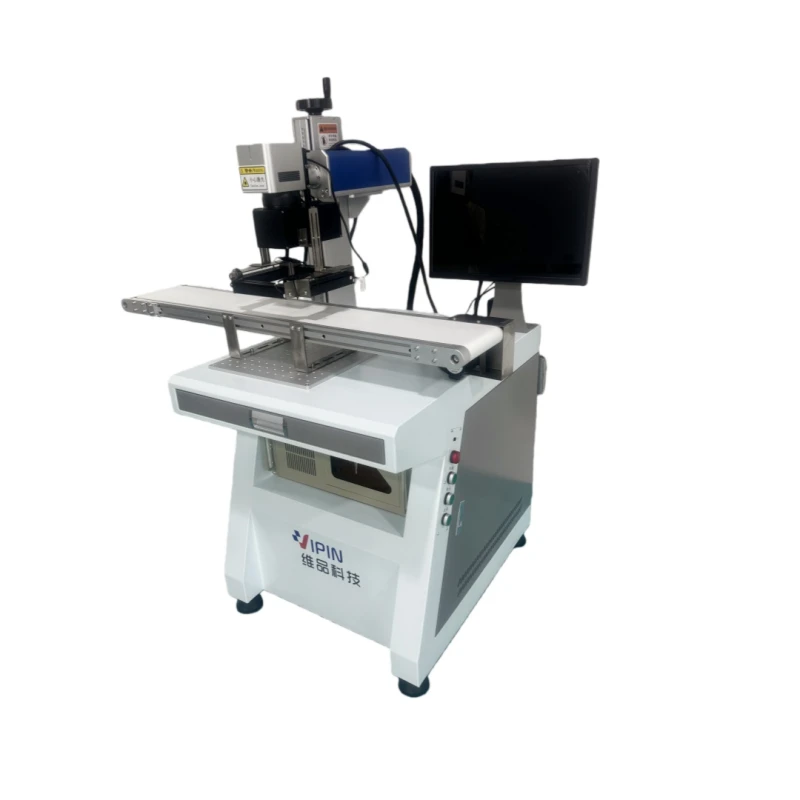

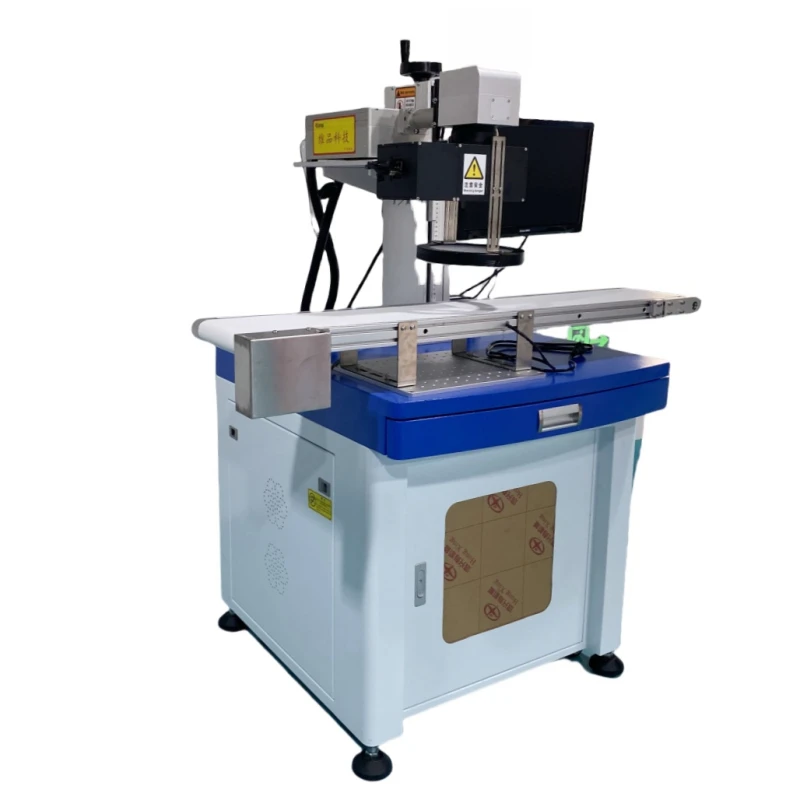

The Visual Laser Marking Machine VIPin-FSD-C05UV/C20FB is an advanced solution designed for precision and efficiency in laser marking. This machine is engineered to deliver high-quality results with minimal effort, making it an ideal choice for businesses seeking to enhance their production capabilities. Its robust design and cutting-edge technology ensure that it can handle a wide range of marking tasks with ease, providing a reliable and consistent performance every time.

One of the standout features of the VIPin-FSD-C05UV/C20FB is its user-friendly operation. The machine is designed to be intuitive, allowing operators to quickly learn and master its functions. This ease of use is complemented by its precise marking capabilities, which ensure that every mark is clear and accurate. The machine's ability to save documents and switch production lines swiftly adds to its efficiency, making it a versatile tool for various industrial applications.

In addition to its operational advantages, the Visual Laser Marking Machine is environmentally friendly, producing no pollution and requiring no consumables. This not only reduces operational costs but also aligns with sustainable business practices. Furthermore, the machine is equipped with an alarm system that alerts operators to any missed markings, ensuring that production quality is maintained at all times. With its customizable software development support, the VIPin-FSD-C05UV/C20FB can be tailored to meet specific business needs, offering a comprehensive solution for modern manufacturing challenges.

Desktop Laser Engraver ID Code Barcode Data Matrix Marking CCD Vision Auto Positioning

Specifications

Work Area X: 300 mm
Work Area Y: 300 mm
Beam Delivery: Galvo
Laser Source: Fiber
Laser Output Power: 30 W
Laser Wavelength: 355 nm (UV), 1064 nm (IR)
Voltage Requirement: 220V - 50Hz
Materials: Plastic, Acrylic, Plexiglass
Air Assist: Not Specified
Fume Extraction Unit: Included
Safety Enclosure: Optional
Light Source Control: Digital Controller
Weight: Approx 90KG
Machine Size: 600*800*1500mm
Power Supply: Single-phase, AC220V±20%/50HZ, 10A, 2KW
Language: Chinese, English
Conveyor System Size: 1100mm*150mm/1500mm*200mm/1500mm*300mm (optional)
Conveyor System Color: Black/white (optional)
Software: VIPin Laser System
Movement Control: Unit/servo motor/stepping motor/electric relay
Feeding Method: Linear Module
Marking Card: JCZ Card
Style No.: VIPIN-FSD-C05UV/C20FB
Light Source: Combo Strip Light/Ring Light
Repeating Accuracy: ±0.1mm (Flat Surface)
Positioning: CCD Visual Marking Positioning
Focus Adjustable Mode: Manual (Red light indicates)
Z Axis: 0-550mm (Adjustable Manually)
Marking Range: 30mm*30mm-300mm*300mm (Optional)
Field Lens Range: 100mm*100mm
Laser Wavelength: 355nm/1064nm
Laser Power: 5W/20W or 30W
Laser Type: UV/Fiber

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Easy to Operate: User-friendly interface for seamless operation.
  • Precise Marking: Ensures high accuracy and quality in every mark.
  • Efficient Document Management: Save documents and switch production lines quickly.
  • Versatile Application: Suitable for marking on PCBs and various product surfaces.
  • Customizable Software: Supports software development for tailored solutions.
  • Eco-Friendly: No pollution and no consumables required.
  • Intelligent Alarm System: Alerts when marking is missed and stops processing when NG.

Applications

  • Electronics Industry: Ideal for marking on PCBs and electronic components.
  • Automotive Industry: Used for marking parts and components with precision.
  • Medical Devices: Suitable for marking medical instruments and devices.
  • Jewelry and Crafts: Perfect for engraving intricate designs on jewelry and craft items.
  • Packaging Industry: Useful for marking barcodes, QR codes, and other identifiers on packaging materials.
  • Tool Manufacturing: Effective for marking tools with logos, serial numbers, and other information.
  • Plastic Products: Can be used for marking on various plastic surfaces without causing damage.
  • Metal Fabrication: Suitable for marking on metal surfaces with high precision.
  • Custom Applications: Supports software development for customized marking solutions.

Frequently Asked Questions

What is the Visual Laser Marking Machine VIPin-FSD-C05UV/C20FB used for?
The Visual Laser Marking Machine VIPin-FSD-C05UV/C20FB is used for precise marking on PCBs and surfaces of various products. It supports marking characters, letters, barcodes, QR codes, and graphic data.
What are the key features of the VIPin-FSD-C05UV/C20FB?
Key features include easy operation, precise marking, fast production line switching, customization with software development, no pollution or consumables, and an alarm system for missed markings.
What types of lasers does the VIPin-FSD-C05UV/C20FB use?
The machine uses UV and Fiber lasers with power options of 5W, 20W, or 30W and laser lengths of 355nm and 1064nm.
What is the marking range of the VIPin-FSD-C05UV/C20FB?
The marking range is adjustable from 30mm x 30mm to 300mm x 300mm.
How is the positioning achieved in the VIPin-FSD-C05UV/C20FB?
Positioning is achieved through CCD visual marking positioning with a 1200W camera and a 12mm lens.
What software does the VIPin-FSD-C05UV/C20FB use?
The machine uses the VIPin Laser System software for its operations.
What are the power requirements for the VIPin-FSD-C05UV/C20FB?
The machine requires a single-phase AC220V±20%/50HZ power supply with a current of 10A and power consumption of 2KW.

Got more questions? Use the inquiry form to ask the supplier directly.
